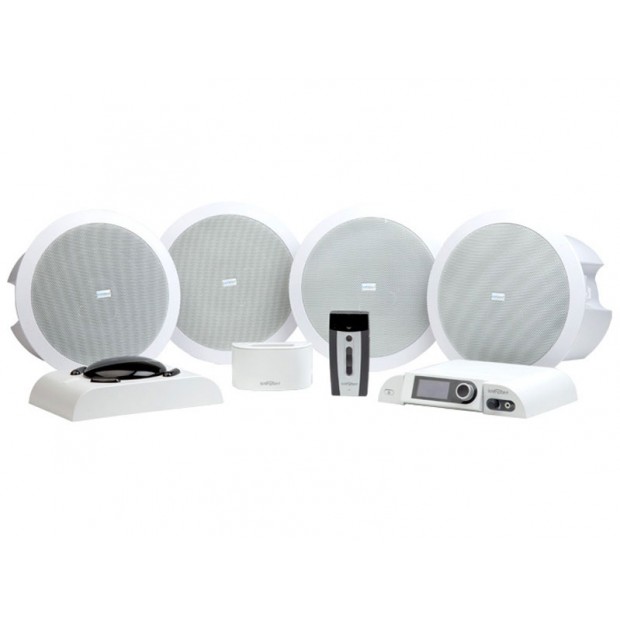

The Performance Soundfield System is ideal for classrooms that want to get the most out of their soundfield system. The Performance Soundfield System offers six (6) direct inputs and one (1) output on the CU, the RM which delivers 60 watts of power and a Microphone/Media Interface Kit (M1). The system allows classrooms to go on a Virtual Field Trip via Skype.
| LPT-C6-01 Standard Control Unit | |
|---|---|
| Power Supply Input | 100-240 VAC, 50-60 Hz |
| Power Supply Output | 19 VDC, 3.2 A, 60.8 w |
| Power Supply Connector | DC Plug type Connector, 0.2" (5.5 mm) OD, center positive |
| Power Cord Length | 6.0 ft (1.8 m) |
| Teleconferencing Input | One (1) Balanced Input, Euro Connectors, 0dBu nominal, +12 dBu maximun, 10k Ohm |
| Unbalanced Input | One (1) Dual Mono Output, Phono Connector, -10dBu, 10 Ohm |
| Balanced Input | One (1) Balanced Input, Euro Connectors, 0 dBu nominal, +12dBu maximum, 10k Ohm |
| Balanced Output | One (1) Balanced Output, Euro Connectors, 0 dBu, 600 Ohm |
| Unbalanced Input | Four (4) Stereo inputs via phono connectors, unbalanced, -10dBu nominal input level, +2 dBu maximum, adjustable -30/+12dB, impedance 100k Ohms |
| Input to Output Frequency Response | 20 Hz to 20 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Teleconferencing Output | One (1) Balanced Output, Euro Connectors, 0 dBu, 600 Ohm |
| Headphone Output Power | One (1) 3.5 mm stereo connector, unbalanced, adjustable output level, +10 dBu maximum, impedance 10 Ohm |
| Microphone to Output Frequency Response | 200 Hz to 15 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Dimensions (H x W x D) | 1.5" (38.1 mm) x 8.5" (215.9 mm) x 6.9" (175.26 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Shipping Weight | 3.0 lbs (1.36 kg) |
| LPT-R12 Powered Room Module | |
| 6 - 12 VDC Input | One (1) 2-pin Euro Connector, 600 Ohms |
| Speaker Output | Four (4) amplifier channels w/ 2-pin euro connectors, each 4 Ohms @ 15 watts (60 watts total) |
| Relay Output | One (1) 3-pin Euro Connector, Latching or Pulse Relay - Programmed via software |
| Microphone to Output Frequency Response | 200 Hz to 15 kHz, +/- 2 dB, < 2.0% THD, >75 dB SNR |
| Input to Output Frequency Response | 20 Hz to 20 kHz, +/- 2 dB, < 0.1% THD, >75 dB SNR |
| Speaker EQ | Quickfilter®, 512 points of equalization by speaker model |
| Infrared Emitter | 38 kHz subcarrier |
| Infrared Sensor | 2.3 MHz, 2.8 MHz |
| External Infrared Sensor | Two (2) phono connectors provided |
| Cable Cover Mounting | Mounts to mounting platform |
| Room EQ | Seven (7) band parametric, Two (2) tone controls |
| Dimensions (H x W x D) | 2.5" (64 mm) x 8.5" (216 mm) x 9.8" (249 mm) |
| Weight | 1.75 lbs (0.8 kg) |
| Shipping Weight | 3.0 lbs (1.4 kg) |

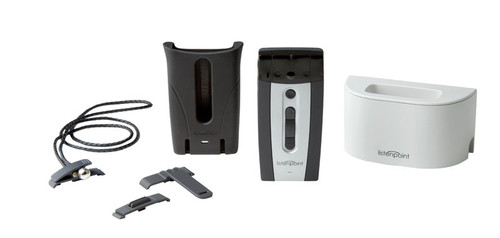

| LPT-M1 Microphone/Media Interface Kit | |
| Battery Capacity | 1180 mAh |
| Battery Type | Lithium Ion |
| Power Supply Plugs | Removable plugs (types B, G, I and C included) |
| Power Supply Input | 100-240 VAC, 50-60 Hz, 0.4 A |
| Power Supply Connector | DC Plug |
| Operating Time | 7 hours typically |
| Battery Charging Time | Two (2) hour charge time |
| Power Supply Output | 5 VDC, 2 A, 10 W |
| Power Cord Length | .09" (2.3 mm) OD |
| Mounting | Mounting platform provided for wall mounting |
| Color | Dark Grey (outer edges), Light Grey (inner section, buttons) |
| Dimensions (H x W x D) | 4.3" (109 mm) x 2.0" (52 mm) x 0.75" (18 mm) |
| Weight (with Batteries) | 3.8 oz (108 g) |
| Shipping Weight | 2.0 lbs (0.9 kg) |
| LPT-A104 In-Ceiling Speaker | |
| Power Capacity | 30 W Continuous Program Power, 80 W Continuous Pink Noise |
| Input Sensitivity | 90 dB SPL, 1 W @ 3.3 ft. (1 m) |
| Nominal Coverage Angle | 110° (Conical Coverage) |
| Impedance | 8 ohms |
| Frequency Response | 60 Hz - 20 kHz, -10 dB, Half Space |
| Termination | Removable locking connector w/ screw-down terminals, 2 input terminals |
| Woofer | 6.5" (165 mm) Polypropylene w/ Rubber |
| Tweeter | 1/2" (13 mm) Mylar Tweeter |
| Cutout Size | 8.18" (208 mm) |
| Depth | 5.5" (140 mm) |
| Weight | 3.26 lbs (1.48 kg) |
| Shipping Weight | 8.0 lbs (3.6 kg) |
