Listen Tech LS-49-072 Listen Premiere Level III Stationary RF System (72 MHz)

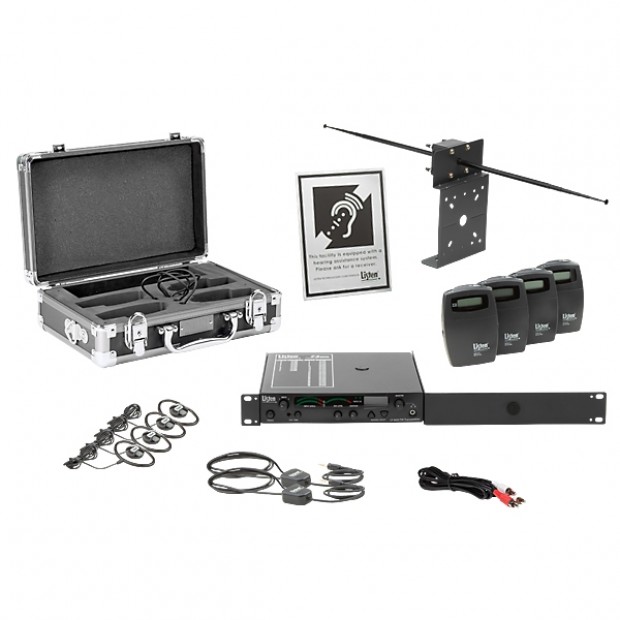

The LS-49-072 Listen Premiere Level III system has everything you need for an easy system to specify, install, operate, and meet legislative requirements for assistive listening. Includes NiMH batteries and a charging/carrying case ideal for managing the storage and dispensing of receivers to listeners. Great for larger venues to deliver an optimum range of up to 305 m (1,000 ft). Includes our LR-400 digital display receivers, which make it easier to monitor channel selection, battery level, and signal strength. Ideal for applications when assistive listening, single-channel language interpretation, and personal use are desired. Venues will benefit from managing the LR-400 when locking on one channel is needed, but programming multiple channels are not or if the receiver channel is not changed regularly by the user. The included neck loops and signage ensures the system meets the minimum legislative requirements for venues with a capacity up to 100.

Features

Features

Ensures public venues deliver an enriched listening experience while meeting new legislative requirements for assistive listening
Superior audio quality – 80dB signal-to-noise ratio (SNR), setting the industry's sound quality standard
Offers 57 digital channels – Listen receivers are digitally-tuned so the transmission won't drift
Look & Listen™ LCD shows channel, battery status, and signal strength
Long transmission range ensures coverage for the entire venue

Specification

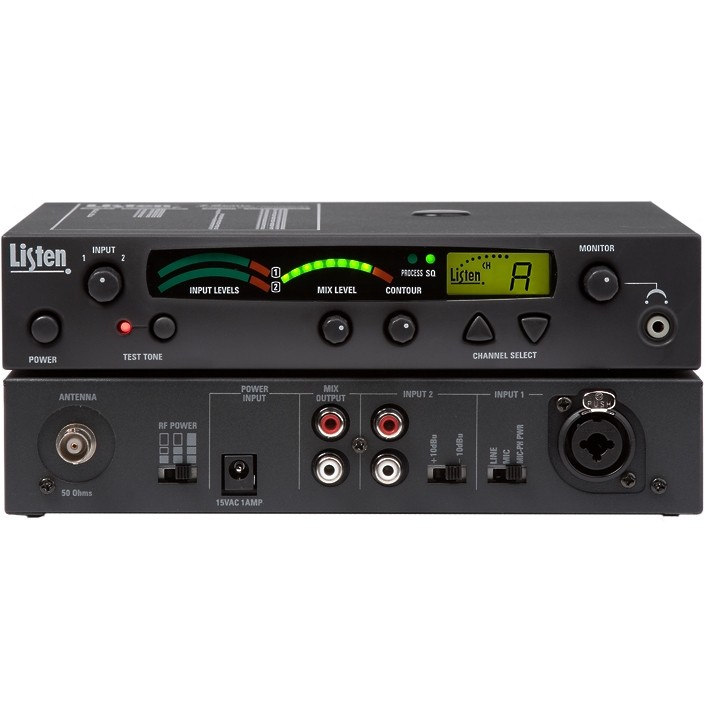

LT-800-072-01
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 80dB, SQ disabled 60dB
Audio Inputs	(1) Female XLR or 1/4 combo connector (2) phono connectors
Audio Outputs	Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm Headphone Output: Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
Frequency Range	72.025 - 75.950MHz
Number of Channels	17 wide band, 40 narrow band
Frequency Accuracy	± .005% stability +32º to +122 ºF (0º to +50 ºC)
Transmitter Stability	50 PPM
Transmission Range	Up to 305 m (1,000 ft.)
Output Power	80,000 uV at 3 m
Number of Simultaneous Transmitters	6
Power Supply	In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards) Input: 100 - 240 VAC, 50 - 60Hz, 0.4 A Output: 12 VDC, 1.3 A, 15.6W Connector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
Dimensions (H x W x D)	1.75" (44.45 mm) x 8.5" (215.9 mm) x 9.13" (231.9 mm)
Weight	2.6 lbs (1.2 kg)
LR-400-072
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 80dB, SQ disabled 60dB
Audio Output Jacks	3.5 mm (0.14 in.) connectors, unbalanced, 0dBu nominal output level, 16 mW maximum, impedance 32 ohm
Distortion	< 2% total harmonic distortion (THD) at 80% deviation
Frequency Range	72.025 - 75.950MHz
Number of Channels	17 wide band, 40 narrow band
Sensitivity	.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy	± .005% stability 32 to 122 ºF (0 to 50 ºC)
Power Supply	I/P 120 VAC; O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases, power supply not included (LA-208) Connector: 0.09 in. (2.3 mm) OD by 0.7 mm ID, barrel type connector 7.5 VDC, center positive < 250 mA, drop in contact points for use with Listen charging cases

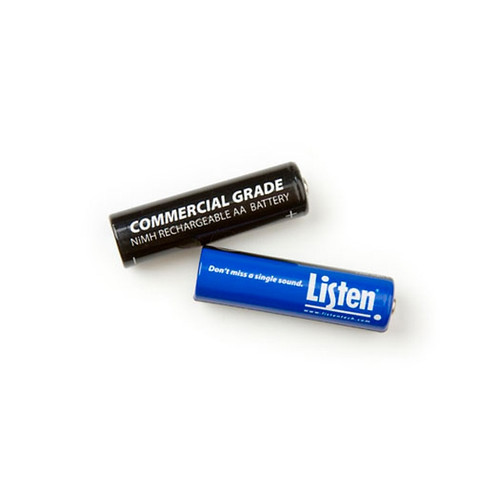

Battery Type	(2) AA batteries, alkaline or NiMH Life: 30 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362) Charging Time: Fully automatic, 13 hours
Dimensions (H x W x D)	4.25" (107.95 mm) x 2.75" (69.85 mm) x 1.5" (38.1 mm)
Weight	0.24 lbs (0.11 kg) without batteries 0.36 lbs (0.16 kg) with batteries
LA-164
Frequency Response	20Hz - 20kHz
Impedance	32 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	115dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	50 mW
Max Power Input	100 mW
Connector	3.5 mm Stereo
Cable Length	36" (914.4 mm)
Weight	0.25 lbs (0.113 kg)
LA-166
Frequency Response	20Hz - 20kHz
Impedance	12 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	110dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	75 mW
Max Power Input	2W
Magnetic Field Strength	100 mA/m 6 inches above loop at 85µW 1kHz input (IEC 60118-4)
Connector	3.5 mm Stereo
Loop Cable Length	33" (838.2 mm)
Cable Length	22" (558.8 mm)
Weight	0.1 lbs (0.047 kg)
LPT-A107-B
Connectors	Dual RCA (male) to Dual RCA (male)
Cable Length	6.6 ft (2 m)
Weight	0.11 lbs (0.05 kg)
LA-317
Power Supply	Input: 100 - 240 VAC 50 - 60Hz, 1200 mA Output: 7.5 VDC, 4 A, 30W
Power Cord Length	12 ft. (3.7 m) with line cord
Dimensions (H x W x D)	7.5" (190.5 mm) x 11.8" (299.72 mm) x 3.75" (95.25 mm)
Weight	2.6 lbs (1.2 kg)
