Listen Tech LS-47-072 Listen Premiere Level I Stationary RF System (72 MHz) (Discontinued)

By Listen Technologies

Listen Tech LS-47-072 Listen Premiere Level I Stationary RF System (72 MHz) (Discontinued)

Name: Listen Tech LS-47-072 Listen Premiere Level I Stationary RF System (72 MHz) (Discontinued)
Brand: Listen Technologies
SKU: LT-LS-47-072
Price: 1849 USD
Availability: OutOfStock

Write a Review

Part #:

LS-47-072

Model #:

LS-47-072

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Listen Tech LS-47-072 Premiere Level I system comes equipped with the LR-400 digital display receivers, which make it easier to monitor channel selection, battery level, and signal strength. Ideal for applications when assistive listening, single-channel language interpretation, and personal use are desired.

Description

Listen Tech LS-47-072 Listen Premiere Level I Stationary RF System (72 MHz)

The LS-47-072 Premiere Level I system comes equipped with our LR-400 digital display receivers, which make it easier to monitor channel selection, battery level, and signal strength. Ideal for applications when assistive listening, single-channel language interpretation, and personal use are desired. Venues will benefit from managing the LR-400 when locking on one channel is needed, but programming multiple channels are not or if the receiver channel is not changed regularly by the user. The included neck loops and signage ensures the system meets the minimum legislative requirements for venues with a capacity up to 100. Telescoping antenna gives smaller venues the option for using the transmitter within a 198 m (650 ft.) range.

Features

Ensures public venues deliver an enriched listening experience while meeting new legislative requirements for assistive listening
Superior audio quality – 80dB signal-to-noise ratio (SNR), setting the industry's sound quality standard
Offers 57digital channels – Listen receivers are digitally-tuned so the transmission won't drift

Specifications

LT-800-072-01
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 80dB, SQ disabled 60dB
Audio Inputs	(1) Female XLR or 1/4 combo connector (2) phono connectors
Audio Outputs	Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm Headphone Output: Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
Frequency Range	72.025 - 75.950MHz
Number of Channels	17 wide band, 40 narrow band
Frequency Accuracy	± .005% stability +32º to +122 ºF (0º to +50 ºC)
Transmitter Stability	50 PPM
Transmission Range	Up to 305 m (1,000 ft.)
Output Power	80,000 uV at 3 m
Number of Simultaneous Transmitters	6
Power Supply	In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards) Input: 100 - 240 VAC, 50 - 60Hz, 0.4 A Output: 12 VDC, 1.3 A, 15.6W Connector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
Dimensions (H x W x D)	1.75" (44.45 mm) x 8.5" (215.9 mm) x 9.13" (231.9 mm)
Weight	2.6 lbs (1.2 kg)
LA-106
Thread Diameter	10 - 32
Frequency Range	72.025 - 75.950MHz
Number of Channels	57 (17 wide, 40 narrow)
Typical Range	Range up to 198 m / 650 ft.
Dimensions (L x Dia)	39" (990.6 mm) x 0.31" (7.874 mm)
Weight	0.07 lbs (0.03 kg)
LR-400-072
Frequency Response	50Hz - 15kHz (±3dB)
Signal-to-Noise Ratio	SQ enabled 80dB, SQ disabled 60dB
Audio Output Jacks	3.5 mm (0.14 in.) connectors, unbalanced, 0dBu nominal output level, 16 mW maximum, impedance 32 ohm
Distortion	< 2% total harmonic distortion (THD) at 80% deviation
Frequency Range	72.025 - 75.950MHz
Number of Channels	17 wide band, 40 narrow band
Sensitivity	.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy	± .005% stability 32 to 122 ºF (0 to 50 ºC)
Power Supply	I/P 120 VAC; O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases, power supply not included (LA-208) Connector: 0.09 in. (2.3 mm) OD by 0.7 mm ID, barrel type connector 7.5 VDC, center positive < 250 mA, drop in contact points for use with Listen charging cases
Battery Type	(2) AA batteries, alkaline or NiMH Life: 30 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362) Charging Time: Fully automatic, 13 hours
Dimensions (H x W x D)	4.25" (107.95 mm) x 2.75" (69.85 mm) x 1.5" (38.1 mm)
Weight	0.24 lbs (0.11 kg) without batteries 0.36 lbs (0.16 kg) with batteries
LA-164
Frequency Response	20Hz - 20kHz
Impedance	32 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	115dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	50 mW
Max Power Input	100 mW
Connector	3.5 mm Stereo
Cable Length	36" (914.4 mm)
Weight	0.25 lbs (0.113 kg)
LA-166
Frequency Response	20Hz - 20kHz
Impedance	12 ohm +/- 15% @ 1kHz
Headset Input Sensitivity	110dB +/- 4dB @ 1kHz, 1 mW
Rated Power Input	75 mW
Max Power Input	2W
Magnetic Field Strength	100 mA/m 6 inches above loop at 85µW 1kHz input (IEC 60118-4)
Connector	3.5 mm Stereo
Loop Cable Length	33" (838.2 mm)
Cable Length	22" (558.8 mm)
Weight	0.1 lbs (0.047 kg)
LPT-A107-B
Connectors	Dual RCA (male) to Dual RCA (male)
Cable Length	6.6 ft (2 m)
Weight	0.11 lbs (0.05 kg)

DOCUMENTS

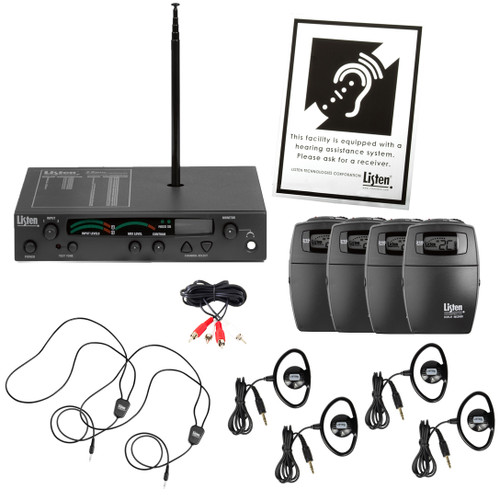

System Includes

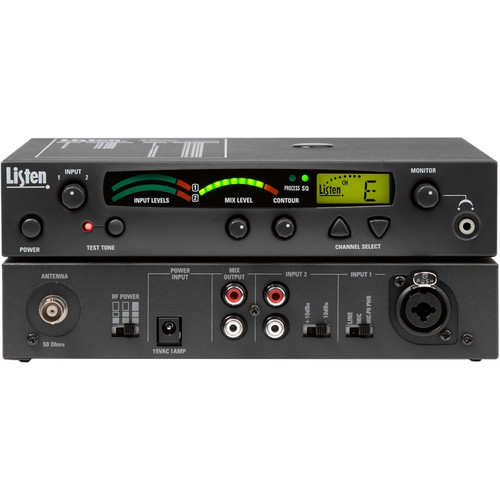

(1) LT-800-072-01 RF Transmitter (72 MHz)
(4) LR-400-072 Portable Display RF Receiver (72 MHz)

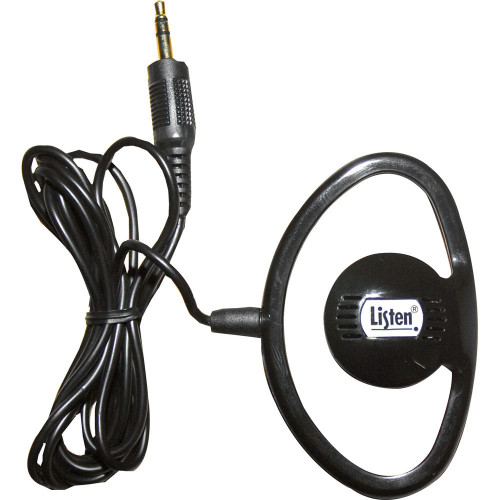

(4) LA-164 Ear Speaker

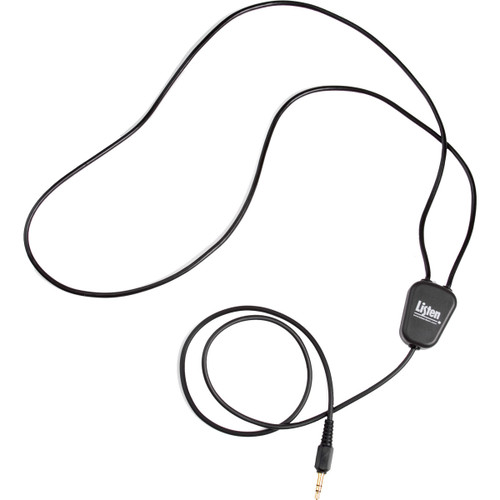

(2) LA-166 Neck Loop
(1) LA-106 Telescoping Top Mounted Antenna (72 MHz)
(1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)

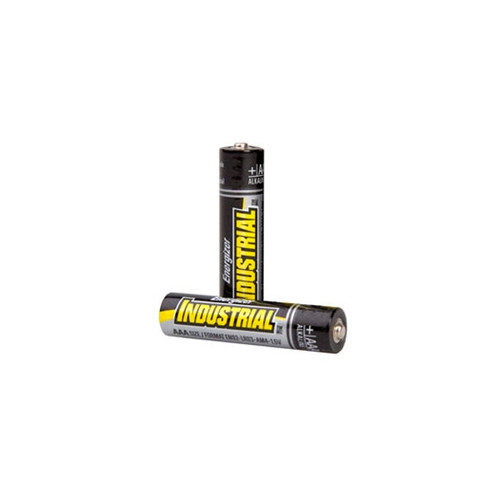

(4) LA-361 High Capacity AA Alkaline Batteries (2)

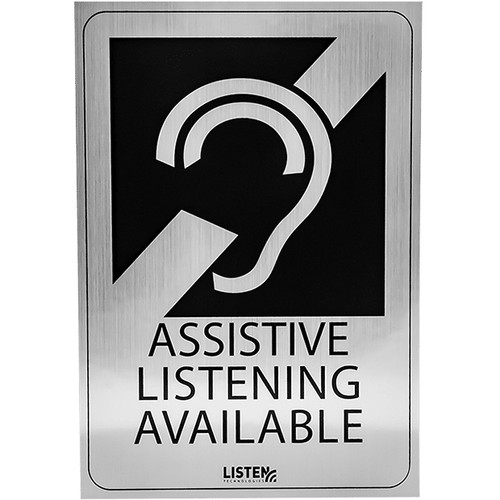

(1) LA-304 Assistive Listening Notification Signage Kit
