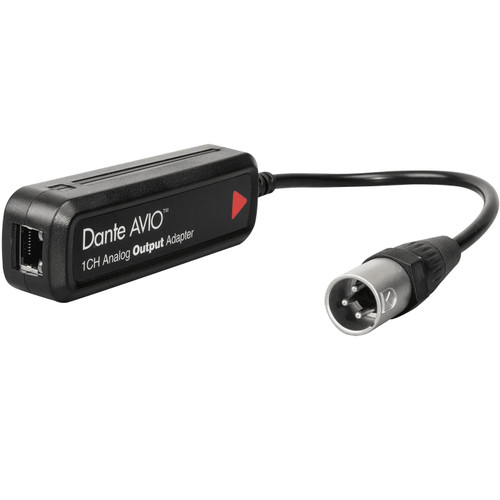

The LT-84-D ListenIR 2-channel transmitter-radiator from Listen Technologies is Dante compatible through the use of the LA-465 Dante adapter and provides venues, businesses, government agencies, and more with an affordable and easy-to-use assistive listening solution. The LT-84-D can transmit a clear, reliable signal across 2,787 square meters (30,000 square feet) and is designed for mid-sized spaces such as boardrooms, courtrooms, classrooms, and other venues.
Features expansion radiators (LA-141) with delay compensation to help prevent signal cancellation dropouts. Up to four (4) LA-141 expansion radiators can be added for additional coverage when mounted within 30.48 m (100 ft.) of the unit. The transmitter-radiator can also transmit on four different frequencies: 2.3 MHz, 2.8 MHz, 3.3 MHz, or 3.8 MHz, providing flexibility during installation and setup.
With included mounting hardware, flexible frequency selection, Dante compatibility, and multiple input options, the Listen Tech LT-84-D provides an infrared assistive listening solution for businesses and venues. A single CAT-5e cable carries both power and signal to LA-141 expansion radiators, supporting an expandable system design.
| Frequency Response | 20 Hz - 20 kHz (±1 dB) Line Input 63 Hz - 15 kHz (±3 dB) System Specification (wireless end-to-end with LR-44) |
|---|---|
| Signal-to-Noise Ratio | >70 dB (SNR) Line Input >60 dB (SNR) System Specification (wireless end-to-end with LR-44) |
| Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz, Selectable |
| Number of Channels | Two (2) channels, Selectable carrier frequency |
| Coverage Area | 2,787 m² (30,000 ft²) single channel with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) single channel with LR-42/LR-44 receivers |
| IR Emitter Power | 1.49W |
| Expansion Link Output | Two (2) RJ-45 connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft maximum cable length, two (2) LA-141s per output connector |
| Power Output | Two (2) RJ-45 connectors. providing Power and RF signal for up to two (2) LA-141 expansion radiators on each output |
| Modulation | FM Wideband, ±50 kHz deviation max, 50 µS pre-emphasis |
| Transmitter Stability | 50 PPM |
| Frequency Accuracy | ±.005% stability 0 to 50 °C |
| Color | Black with White Silk Screening |
| Dimensions (H x W x D) | 1.5" (38.1 mm) x 10.7" (271.78 mm) x 4.1" (104.14 mm) |
| Weight | 1.8 lbs (0.8 kg) |
| Shipping Weight | 3.4 lbs (1.54 kg) |
