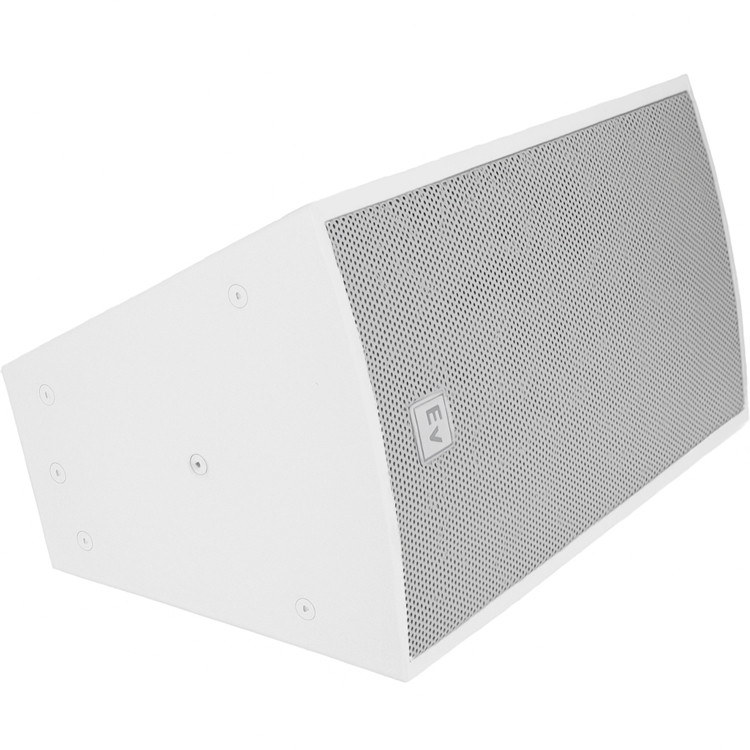

Electro-Voice EVF-1122D/94-WHT Premium 12" 2-Way 2400W Arrayable Point-Source Loudspeaker with 90° x 40° Coverage - White

Electro-Voice EVF-1122D/94-WHT Premium 12-Inch 2-Way Point-Source Loudspeaker

The EVF-1122D/94-WHT is a premium white 12-inch, two-way arrayable point-source loudspeaker engineered for exceptional audio performance, versatility, and style. Designed for demanding fixed-install sound reinforcement applications, it delivers up to 2400 watts peak power and an impressive 131 dB maximum SPL for powerful, distortion-free sound. Its rotatable 90° x 40° constant directivity waveguide ensures precise coverage and uniform sound distribution, making it the perfect choice for auditoriums, houses of worship, arenas, clubs, and other large venues requiring consistent, high-quality performance in a clean white finish.

Inside, the EVF-1122D/94-WHT features Electro-Voice's renowned DH7N 3-inch titanium compression driver and a DVX3121A 12-inch woofer, optimized using FEA technology for maximum efficiency and low distortion. A 24 dB/octave crossover network provides smooth frequency response and exceptional vocal intelligibility, while the HF protection circuit ensures long-term reliability. The externally accessible passive/active jumper and optional 70V/100V transformer kit offer unmatched flexibility for both low-impedance and distributed audio systems.

Constructed from weather-resistant birch plywood with a durable white EVCoat finish, this loudspeaker combines rugged durability with professional aesthetics. Its trapezoidal enclosure and advanced rigging design support both vertical and horizontal array configurations with other EVF and EVH models, providing scalable system design for any installation. Available in both partially-weatherized PI and fully-weatherized FG versions, the EVF-1122D/94-WHT blends performance, durability, and a clean white finish, delivering the power and precision Electro-Voice is known for in a versatile, installation-ready loudspeaker.

• Premium white 12" 2-way arrayable point-source loudspeaker
• 2400W peak/600W continuous power handling
• 97 dB sensitivity and 131 dB maximum SPL
• Rotatable 90° x 40° constant directivity waveguide
• DH7N 3" titanium compression driver & DVX3121A woofer
• Clean white trapezoidal birch enclosure with EVCoat finish
• Passive/active operation with HF protection circuit
• Flexible rigging for vertical or horizontal array setups
• Optional 70V/100V transformer kit for distributed systems
• Ideal for venues, clubs, houses of worship, and arenas
