RCF HDL 6-A W Dual 6" 1400W Active Line Array Module - White

Part # 13000515

Model # HDL6-A W

The RCF HDL 6-A is the ideal choice for line array speaker systems where fast and easy set-up is a must. Perfect for small to medium venues such as churches, auditoriums and live sound applications. A 1400W 2-channel class-D amplifier powers the system and the state-of-the-art RCF transducers provide solid bass reproduction as well as vocal clarity with high definition and incredible dynamic.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

RCF HDL 6-A Dual 6" 1400W Active Line Array Speaker Module

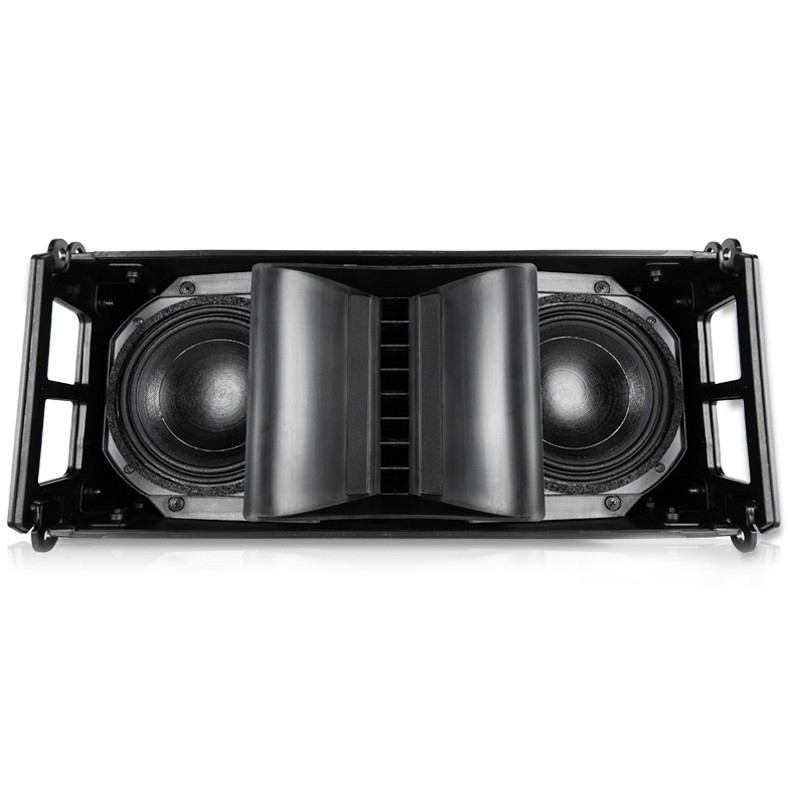

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Custom Designed Waveguide

The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high-frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.

Symmetrical Design

Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation. The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminum rear handles for portability. The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.

Features

Features

1400W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0" woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing

Specification

Acoustical Specifications	Frequency Response: 65 Hz ÷ 20000 Hz Max SPL @ 1m: 131 dB Horizontal coverage angle: 100° Vertical coverage angle: 10°
Transducers	Compression Driver: 1.0'' neo, 1.75'' v.c Woofer: 2 x 6.0'' neo, 2.0'' v.c
Input/Output Section	Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: +4 dBu
Processor Section	Crossover Frequencies: 900 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: HF correction
Power Section	Total Power: 1400W Peak, 700W RMS High frequencies: 400W Peak, 200W RMS Low frequencies: 1000W Peak, 500W RMS Cooling: Convection Connections: Powercon IN/OUT
Standard Compliance	CE marking: Yes
Physical Specifications	Cabinet/Case Material: PP Composite Hardware: Array fittings Handles: 2 Back Grille: Steel Color: White
Dimensions (H x W x D)	9.33" (237 mm) x 18.5" (470 mm) x 14.84" (377 mm)
Weight	25.57 lbs (11.6 kg)
Shipping Dimensions (H x W x D)	10.24" (260 mm) x 21.65" (550 mm) x 16.73" (425 mm)
Shipping Weight	28.66 lbs (13 kg)
