Details

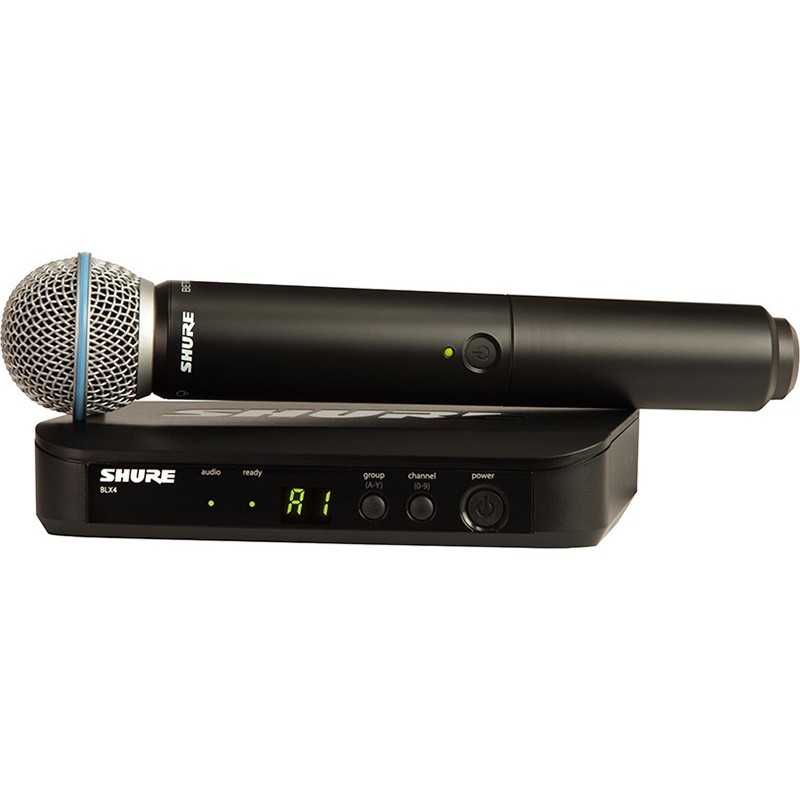

The Shure BLX Wireless System combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.
The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.
The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
- Features
Features
BLX24/B58 Handheld Wireless System:
- Easy set up and operation
- One-touch Quickscan frequency selection quickly locates the best open frequency
- Legendary Shure audio and durable construction
BLX4 Single Channel Receiver Features:
- XLR and ¼" output connectors
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload / clipping)
BLX2/B58 Handheld Transmitter Features:
- Integrated microphone capsule design, featuring PG58, SM58, or Beta 58A options
- Lightweight, rugged construction
- Color ID caps (available separately)
- Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
- Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound
- Neodymium magnet for high signal–to–noise output
- Hardened steel mesh grille that resists wear and abuse
- Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
- Minimally effected by varying load impedance
- Legendary Shure quality and reliability
- Specification
System Working Range 91 m (300 ft) Line of Sight Audio Frequency Response 50 to 15,000 Hz Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical Dynamic Range 100 dB, A-weighted, typical Operating Temperature -18°C (0°F) to 57°C (135°F) BLX4 Wireless Receiver Output Impedance XLR connector: 200 Ω, 6.35 mm (1/4”) connector: 50 Ω Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ RF Sensitivity -105 dBm for 12 dB SINAD, typical Image Rejection >50 dB, typical Housing Molded ABS Power Requirements 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive) Dimensions (H x W x D) 1.57" (40 mm) x 7.40" (188 mm) x 4.06" (103 mm) Weight 0.53 lbs (241 g) BLX2 Handheld Transmitter Audio Input Level Gain:- 0dB: -20 dBV maximum -10dB: -10 dBV maximum Gain Adjustment Range 10 dB RF Transmitter Output 10 mW, typical Housing Molded ABS Power Requirements 2 LR6 AA batteries, 1.5 V, alkaline Battery Life Up to 14 hours (alkaline) Dimensions 8.875" (224 mm) x 2.125" (53 mm) Weight (without batteries) 0.48 lbs (218 g) BETA 58A Vocal Microphone Type Dynamic (moving coil) Frequency Response 50 to 16,000 Hz Polar Pattern Supercardioid Output Level (at 1,000 Hz) Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) Impedance Rated impedance is 150 Ω (290 Ω actual) for connection to microphone inputs rated low Z Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Case Silver blue enamel-painted die cast metal with hardened, mattefinished, spherical steel mesh grille Adjustable, Stand Adapter Slip-in microphone mounting, unbreakable, adjustable through 180° with standard 5/8"-27 thread Dimensions 6.5" (160 mm) x 2" (50 mm) Net Weight 0.61 lbs (278 grams) - Documents
Documents
- System Includes
System Includes
- (1) BLX4 Single Channel Wireless Receiver
- (1) BLX2/B58 Handheld Transmitter
- (1) Microphone Clip
- (1) Padded, Zipper Carrying Case
- (1) PS23US Power Supply
- (2) AA Batteries
