Live Streaming Video Package with Marshall CV610-U3W-V2 Compact PTZ Camera and USB-C Audio Interface (Discontinued Components)

By Marshall Electronics

Live Streaming Video Package with Marshall CV610-U3W-V2 Compact PTZ Camera and USB-C Audio Interface (Discontinued Components)

Name: Live Streaming Video Package with Marshall CV610-U3W-V2 Compact PTZ Camera and USB-C Audio Interface (Discontinued Components)
Brand: Marshall Electronics
SKU: LSVP-CV610U3WV2STUDIO24C
Price: 1185.94 USD
Availability: OutOfStock

Write a Review

Part #:

LSVP-CV610U3WV2STUDIO24C

Model #:

LSVP-CV610U3WV2STUDIO24C

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This live streaming video equipment package delivers next-level performance for any UCC, teleconference, Pro A/V, or live streaming in churches, corporate boardrooms, huddle spaces, lecture theatres, training rooms, medical suites, and classrooms.

Description

Inside the Design

This affordable live streaming video equipment package provides easy-to-use audio and video streaming for churches, corporate boardrooms, huddle spaces, lecture theatres, training rooms, medical suites, and classrooms. The Marshall CV610-U3-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The Presonus Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it's a perfect companion for any recording software, the Studio 24c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.

Sound System Features:

Easy-to-use compact PTZ Camera with USB 3.0, 2.0 and HDMI
Backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View at 63°, and simultaneous HDMI livestream output
Pan-tilt range: 350° horizontal pan range / 120° tilt range with quiet, smooth transitions
Studio 24c delivers amazing sound quality in a rugged, compact form factor
Presonus interface works with virtually all macOS and Windows recording software
Audio interface operates at up to 192 kHz for ultra-high-definition recording and mixing

live stream video church

About the System Components

This live streaming package includes a Marshall CV610-U3W-V2 compact PTZ camera with USB 3.0, 2.0 and HDMI, a portable Presonus Studio 24c 2x2 USB-C compatible audio interface and a 6' XLR cable.

Not sure if this is the right Live Streaming Video solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI:

2-Megapixel HD Sensor
10x Optical Zoom: 62.5° ~ 6.4° Horizontal AOV (12x Digital Zoom)
Compact overall footprint (approx.): 145 mm diameter, 112 mm head diameter, 155 mm height
USB 3.0 / 2.0 (uncompressed) output with simultaneous HDMI output
Full-HD resolutions: 1920 x 1080p, 1280 x 720p
Frame rates: 60, 50, 30, 25 fps
HDMI output resolution can be set independently of USB output resolutions
Onboard audio mic and 3.5 mm TRS audio jack (optional input)
Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
Up to 128 presets with quiet, smooth transitions

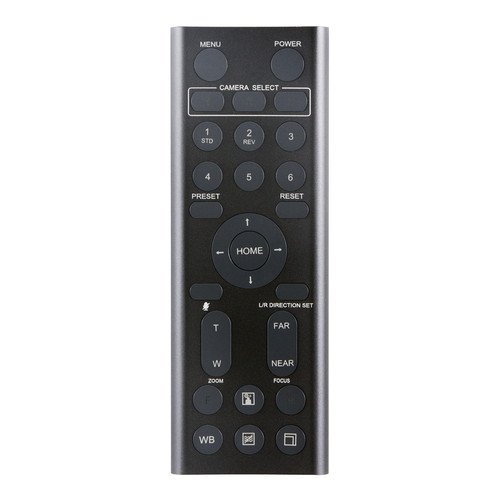

Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0 / 2.0
Breakout Cable, USB 3.0 / 2.0 cable, and 12V Power Cord included with camera

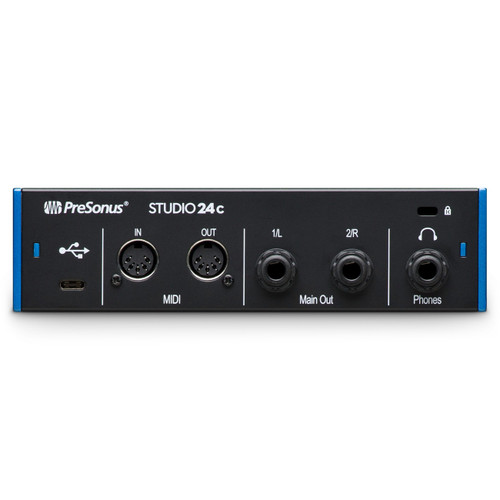

Presonus Studio 24c 2x2 USB-C Compatible Audio Interface:

Simultaneous I/O up to 2 inputs/2 outputs
2 mic/instrument/line inputs with XMAX-L mic preamps
2 balanced 1/4" TRS main outputs
1 stereo headphone output
MIDI In/Out
1 USB-C™ compatible 2.0 port
USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
Mixer knob for low-latency direct input monitoring
Front-panel level controls for main outputs
+48V phantom power for condenser microphones (global)
4 ladder-style LED level meters (2 input, 2 main output)
Studio One Artist®
Studio Magic Plug-in Suite
USB-C™ compatible port (USB 2.0)
24-bit resolution
44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Road-rugged construction with all-metal chassis and metal knobs
USB bus-powered

Package Includes

(1) Marshall CV610-U3W-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI
(1) Presonus Studio 24c 2x2 USB-C Compatible Audio Interface

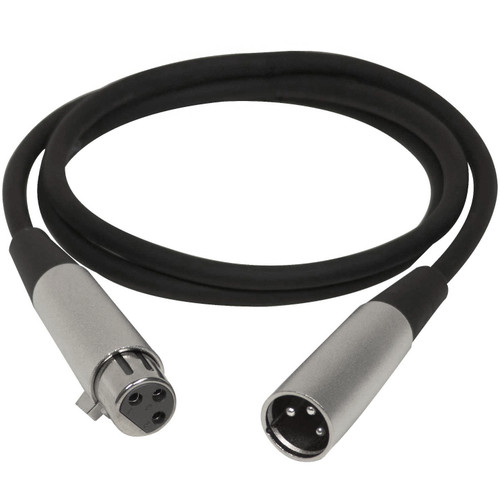

(1) CBI MLN-6 XLR Cable - 6ft
