The ES-52T is a high-performance 5.25" coaxial ceiling speaker system engineered for clear voice reproduction and full-range music in commercial environments. Ideal for offices, schools, retail spaces, restaurants, and public facilities, it combines premium audio quality with installation efficiency and code compliance.
Equipped with a 5.25" coaxial driver and Mylar tweeter, the ES-52T delivers crisp high-frequency response and a wide 165° conical dispersion pattern, minimizing the number of speakers needed for even coverage. The built-in 16W transformer includes taps for 25V, 70V, and 100V distributed systems, plus an 8-ohm bypass option for direct connection. A selector switch is conveniently located behind the white grille.

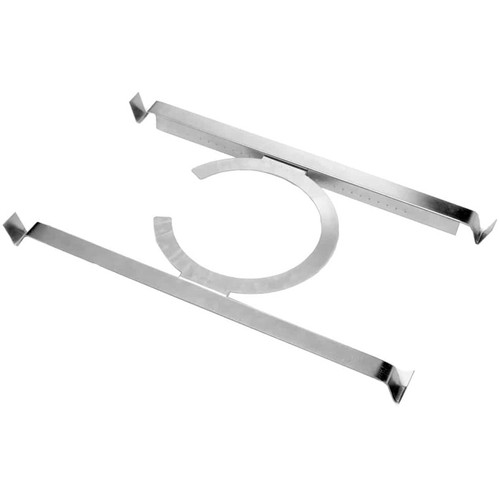

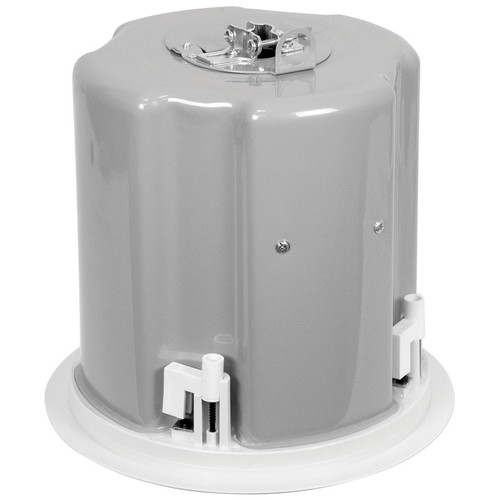

The durable 20-gauge steel enclosure is ported for enhanced bass response and comes pre-mounted to the driver for quick installation. Built-in mounting dogs, a seismic restraint ring, and a low-profile UV-rated plastic baffle ensure safety and versatility across various ceiling types. The fine-mesh press-fit steel grille, paint shield, C-ring, and support rails complete the assembly, making the ES-52T a reliable and flexible choice for professional-grade ceiling audio systems.
| Power Handling | 30W RMS |
|---|---|
| Sensitivity | 88 dB |
| Maximum SPL | 102.8 dB |
| Impedance | 8 ohms |
| Frequency Response | 7 0Hz - 20 kHz (±6 dB) |
| Conical Dispersion Angle | 165° conical @2 kHz octave (-6 dB) |
| Crossover Frequency | 5 kHz |
| Transformer Taps | 100V (16, 8, 4, 2W); 70V (16, 8, 4, 2, 1W); 25V (2, 1, .5, .25, .13W) |
| Input Terminals | 4-conductor removable Phoenix-style connector |
| Driver | 5-1/4" 30W coaxial driver |
| Dimensions (Dia x D) | 9.84" (249.94 mm) x 10.16" (258.06 mm) |
| Weight | 6.5 lbs (2.95 kg) |
| Shipping Weight | 20.4 lbs (9.25 kg) |
