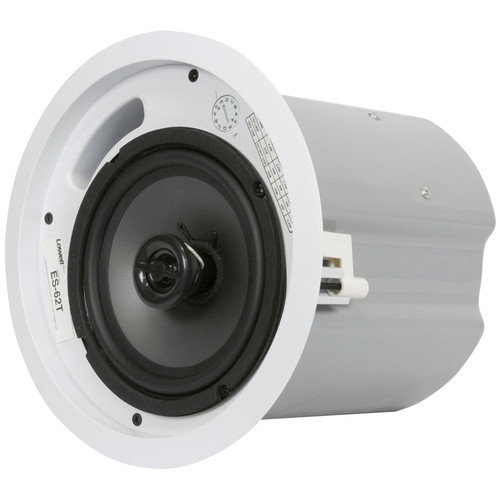

Lowell ES-62T 6.5" 70V In-Ceiling Speaker
The Lowell ES-62T 6.5" in-ceiling speaker produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling or in-wall speaker system with 6-1/2" coaxial driver has a high-frequency PEI tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker's wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.
- Features
Features
- 6-1/2" coaxial driver
- Low-profile front baffle formed from UV-rated high-impact plastic

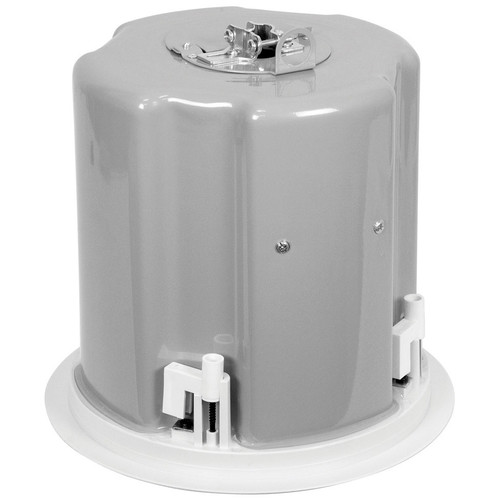

- Durable 20-ga. zinc-plated steel enclosure
- Built-in reversible mounting dogs for fast installation
- Mount in drywall, wood, tile, or almost any type of ceiling with thickness up to 2.25" (57 mm)
- Ported enclosure tuned for extended bass response
- Tap selector switch mounted behind grille for internal 32W transformer
- Tap selections for 25V, 70V or 100V speaker systems and 4 ohm (UL minimum) transformer bypass position
- Removable (four-pin) Phoenix-style connector with two terminals for input to speaker, and two parallel terminals
- Mounting C-ring and two support rails prevent sagging when installed in lay-in tile ceilings
- White, press-fit, fine-mesh grille with scrim
- Grille pull tool
- Template to assist in cutting mounting holes
- Plastic shield to protect speaker when painting
- Specification
Performance Power Handling 50W RMS (at 8 ohms) measured per EIA Standard RS-426B Sensitivity 88.6 dB log average SPL (at 8 ohms) @ 1W/1M over the frequency response range, measured in half-space Maximum SPL 105.6 dB (calculated based on power rating and measured 8 ohm sensitivity) Impedance 8 ohms (nominal), 4.0 ohms @ 12461 Hz (min.) Frequency Response 64Hz – 20kHZ ± 6dB Conical Dispersion Angle 120˚ conical @ 2kHz octave (-6dB) Crossover Frequency 3kHz Transformer Taps 100V (32, 16, 8, 4.2W); 70V (32, 16, 8, 4, 2W); 25V (4.4, 2.2, 1.1, .55, .28W) Physical (Full-Range Speaker) Woofer Cone Specially formulated polypropylene Surround Rubber Woofer Magnet Weight 15.45 oz (438.1 g) Woofer Voice Coil Diameter 1" (25.47 mm) Tweeter Cone PEI with acoustical lens Tweeter Magnet Weight 0.64 oz (18.09 g) Tweeter Voice Coil Diameter 1" (25.47 mm) Mounting C-ring One included with each speaker Tile Support Rails Two included with each speaker Rough-in Bridge Optional rough-in bridge for new construction—drywall or plaster ceiling—before the finished ceiling is installed. Order separately Mechanical Input Terminals 4-conductor removable Phoenix-style connector Net Weight (Speaker & Grille) 7.5 lbs (3.4 kg) Shipping Weight (Pair) 22.4 lbs (10.2 kg) - Documents
Documents

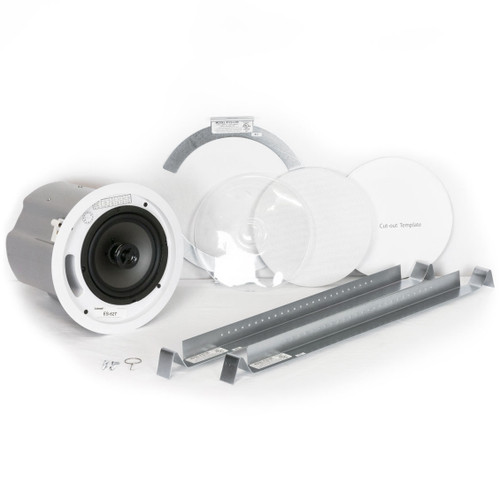

- In The Box
In The Box
- (2) 6.5" Coaxial Drivers
- (2) 32W Transformers
- (2) Metal Enclosures (Attached)
- (2) Press-Fit Grilles, Scrims, Pull-tool
- (2) C-Rings with Support Rails
- (2) Paper Templates for Cut-Outs
- (2) Paint Shields for Drivers
