The Lowell LER-1822 18U enclosed AV rack provides secure equipment mounting in a fully welded 19-inch rack with a 22-inch depth. It features adjustable mounting rails, ventilated side panels, an included rear door, and a black-textured powder-coat finish. With a 500 lb load capacity, it supports professional AV equipment installations.

Description

Lowell LER-1822 18U 22-Inch Deep Enclosed AV Rack

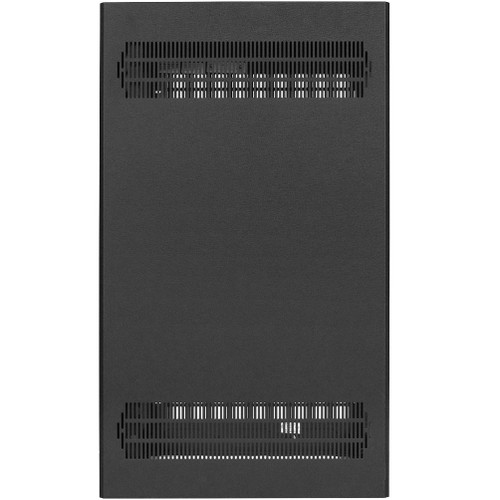

The LER-1822 is a fully welded, standalone 19-inch rack reinforced at load-bearing junctions for robust support. The Lowell LER Series 18U x 22-inch-deep enclosed AV rack features welded side panels with upper and lower vents for passive ventilation. Its adjustable mounting rails can be repositioned deeper into the rack to accommodate equipment controls. The rack includes a rear door, while an optional 18U front door is available separately through the LFD Series. Beveled corners and a black-textured powder-coat finish complete the design.

Features

  • Welded top and sides with vents
  • Open front with optional door
  • Rear door included
  • One pair of fully adjustable rails tapped 10-32 with printed RU scale
  • Multiple lacing points and laser-cut knockout panels for cables
  • Pilot point screws with captive washers
  • Grounding stud
  • Threaded inserts for optional leg levelers
  • Beveled corners
  • Black-textured powder-coat finish
  • Load capacity of 500 pounds
  • TAA-compliant and BAA-compliant

Specifications

Rack Space 18U
Dimensions (H x W x D) 37.63" (955.80 mm) x 23.06" (585.72 mm) x 22" (558.8 mm) (19.34" (491.24 mm) usable)
Weight 94 lbs (42.64 kg)
