Lowell LT2-810-SM810-RS 2x2 Lay-In Ceiling Tile Speaker (Discontinued)
By Lowell

Lowell LT2-810-SM810-RS 2x2 Lay-In Ceiling Tile Speaker (Discontinued)

Write a Review
Part #:
LT2-810-SM810
Model #:
LT2-810-SM810-RS
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Lowell LT2-810-SM810-RS 2x2 Lay-In Ceiling Tile Speaker's design is ideal for applications where ceiling-to-deck space is limited.

Description

The quick-install loudspeaker for suspended tile ceilings features a paging diver that fires up to shape background sound levels for improved privacy and productivity. This unit ships ready to install.

Features
  • Paging 15W + Masking 15W
  • Dual speaker and masking systems install quickly into suspended tile ceilings
  • 2' x 2' tile replacement systems
  • Backbox is chambered and lined with fiberglass for optimum performance and separation of each driver
  • Ready-to-mount systems include separate paging and masking drivers mounted within the backbox/grille assembly
  • Fine perforated grilles blend with ceiling tiles and provide excellent acoustic transparency

Specifications
Paging Driver (Down) 810
Masking Driver (Up) 810
Xfmr Model (ea. driver) TLM70
Xfmr Taps (ea. driver) .25, .5, 1, 2, 4W
Backbox Volume (cu.in.) (paging / masking) 700 / 700
Optional Controls (factory mounted) Rotary tap select
Size 8"
Power Rating 15W
Type Dual Cone
Ceramic Magnet 10 oz.
Frequency Response 45Hz - 13kHz +6dB; 45Hz - 18kHz Nominal
Dispersion 120° @ 2000Hz -6dB
Voice Coil Diameter 1"
Sensitivity 1W / 1M 95dB Avg; 100dB Peak
Weight 2 lbs (0.91 kg)

Related Products

Lowell LT2-810-72-BB 2x2 Lay-in Ceiling Tile Sound Masking Speaker Lowell LT2-810-72-BB 2x2 Lay-in Ceiling Tile Sound Masking Speaker

Lowell LT2-810-72-BB 2x2 Lay-in Ceiling Tile Sound Masking Speaker

The speaker system for suspended tile ceilings shall be Lowell Model No. LT2-810-72-BB. The 2'x2' system shall directly replace a 2'x2' ceiling tile. Each speaker system shall include a...
MSRP: $225.20
$198.18

Usually arrives in 5-9 business days.

MSRP: $225.20
$198.18
Add to Cart The item has been added
Sold Out

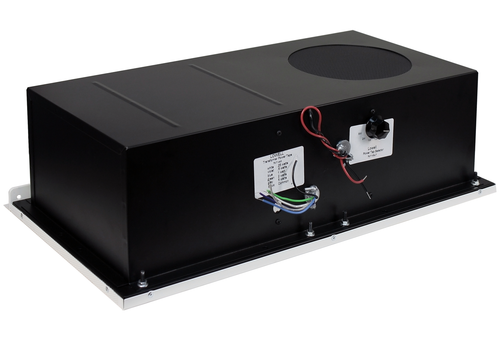

Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued) Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued)
