Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued)
Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued)
Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued)
By Lowell

Lowell LT-810-SM810 1 x 2 Music, Paging and Sound Masking Lay-In Tile Speaker (Discontinued)

Write a Review
Part #:
LT-810-SM810
Model #:
LT-810-SM810
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Lowell LT-810-SM810 lay-in tile sound masking speaker for suspended tile ceilings features a paging driver that fires down for clear voice transmission and a masking driver that fires up to shape background sound levels for improved privacy and productivity. Patented T-bar supports neighboring ceiling tile (non-tegular).

Description

Unique loudspeaker assembly for suspended tile ceilings (nontegular) features two drivers to provide music/paging plus sound masking from one assembly. The 1' x 2' assembly features a patented T-bar to support the neighboring (cut) tile and simplify installation. Ships ready to install.

Features

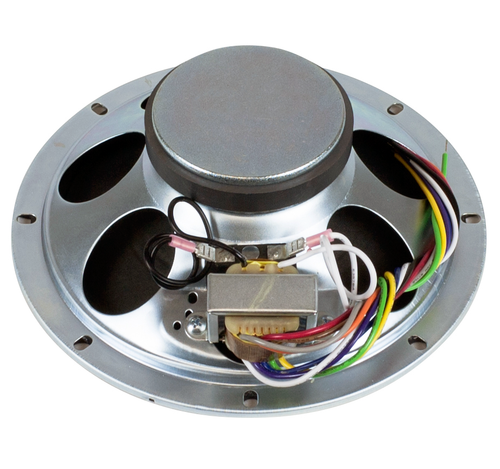

  • Drivers (810):  Two 8 in. 15W dual-cone drivers
  • Transformers:  Two transformers with 70V leads available. Taps at .25, .5, 1, 2, 4W. Two rotary knobs for tap selection
  • Enclosure:  Partitioned to provide 700 cu.in. volume for each driver. Acoustic lining
  • Grille with Subplate: 1 ft. x 2 ft. subplate and steel grille with fine-perforation pattern and white finish provides maximum free-air space for excellent sound transmission
  • Mounting Aids:  Patented T-bar supports neighboring non-tegular ceiling tile. T-bar has a restraint tab in one corner and a hole on the opposite corner for (two-cable) tie-off or code compliance (cable not included)

Specifications
Transformer (2) 70V
Taps .25, .5, 1, 2, 4W
Dimensions (H x W x D) 6.45" (163.83 mm) x 23.75" (603.25 mm) x 12.92" (328.17 mm)

DOCUMENTS
