M-Audio M3-8 Three Way Active Studio Monitor (Discontinued)

In-Line MF/HF Design

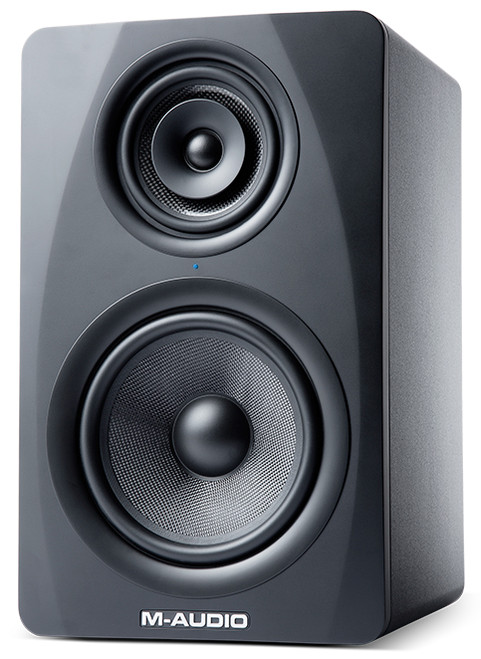

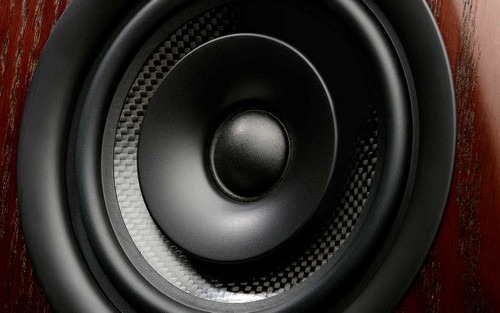

In the sophisticated design of the M3-8, the midrange and tweeter are mounted in-line with each other (the tweeter is actually mounted at the apex of the midrange) at precisely the same point in space. Doing so means the sound of the two drivers integrates perfectly, without the “time/arrival distortion” of conventionally-spaced drive units. Instead, with the M-Audio M3-8, the all-important midrange and treble information reaches your ears at precisely the same time, delivering the ultimate in detail and clarity.

No speaker with conventionally-mounted drivers can equal the M3-8’s incredibly natural, three-dimensional sound field. Your mixes sound real, and you can make very confident, precise adjustments to your recordings. That’s what a great monitor is supposed to do for you.

Superb Drive Units

Kevlar® is an ideal driver diaphragm material: Incredibly strong, stiff and light (it’s used in military body armor!). We use it in both the M3-8’s 8” woofer and the 5” midrange, giving those units an incredibly fast transient attack, excellent sensitivity and great resistance to cone flexing and resonant breakup at high power levels. Loud, strong and fast—perfect monitor characteristics.

The 1” woven silk dome tweeter uses Ferro-fluid voice coil cooling for added reliability at studio power levels and this tweeter imparts virtually no harshness or “listening fatigue,” as is often the case with metal dome tweeters. This is extremely important to the recording engineer who spends hours in the studio, listening to his mixes, relying on his unfatigued hearing to make subtle adjustments.

Additionally, the tweeter is mounted in an integrated waveguide, which precisely focuses and directs the treble energy into the listening field, ensuring a solid and stable sonic image and minimizing the random acoustic “scatter” that would distract from properly evaluating the recording’s playback.

Finally, we’ve paid close attention to the cabinet as well. The attractive real wood-veneered baffle is chamfered at the top edges to aid in dispersion and reduce audibly-destructive edge diffraction. We’ve also optimized the cabinet’s internal bracing to ensure that the drivers have a solid, vibration-free platform from which to launch their sound, and we’ve used computer calculations to determine the port’s characteristics for the best possible bass response.

Three (Amplifiers) Is Key

Three individual internal amplifiers provide power to each of the three speaker elements.  These amplifiers are specifically tailored to the drivers they are matched with, for smooth operation and system synergy that is virtually impossible to equal using outboard amplifiers and passive speakers. A total of 220 watts of Class AB amplification empowers the M3-8 with ample headroom for even the loudest mixes. The carefully-selected crossover points divide the frequency spectrum into very precise bands so that each individual driver only handles the exact frequency range where it is most accurate.

The powerful three-band (LF, MF, HF) EQ gives you the flexibility to shape the sound to match your listening environment. The switchable low-cut filter is perfect for tailoring the M3-8’s bass response for use with a subwoofer, like M-Audio’s BX Subwoofer. Pinhole-mounted blue LEDs provide an easy-to-use visual aid for perfect speaker placement.

The result of all these innovations and thoughtful design touches is an outstanding studio monitor speaker able to perform at a far higher level than the typical monitor—even in the most critical listening environment. Your mix is only as good as your monitor. Don’t settle for less than the best.

• Real wood baffle; optimized internal bracing
• Inline mid- & high-frequency drivers offer superior imaging
• 8" woven Kevlar low-frequency driver
• 5" woven Kevlar mid-frequency driver
• 1" silk dome tweeter with integrated waveguide
• Tri-amp Class A/B power, 220 Watts total

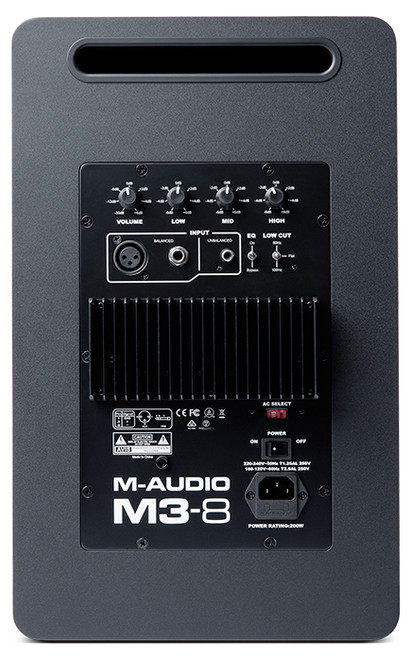

• XLR and 1/4" balanced inputs; RCA unbalanced input
• 3-band EQ with bypass; switchable low-cut filter
• Rear-mounted volume and power control
