Mackie C300z 12" 2-Way Passive Loudspeaker

Part #:
2033793
Model #:
C300z
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Featuring legendary Mackie sound quality and durability, the lightweight C Series 2-way passive loudspeakers deliver optimum performance in portable PA, stage monitor and permanent installation applications.

Description

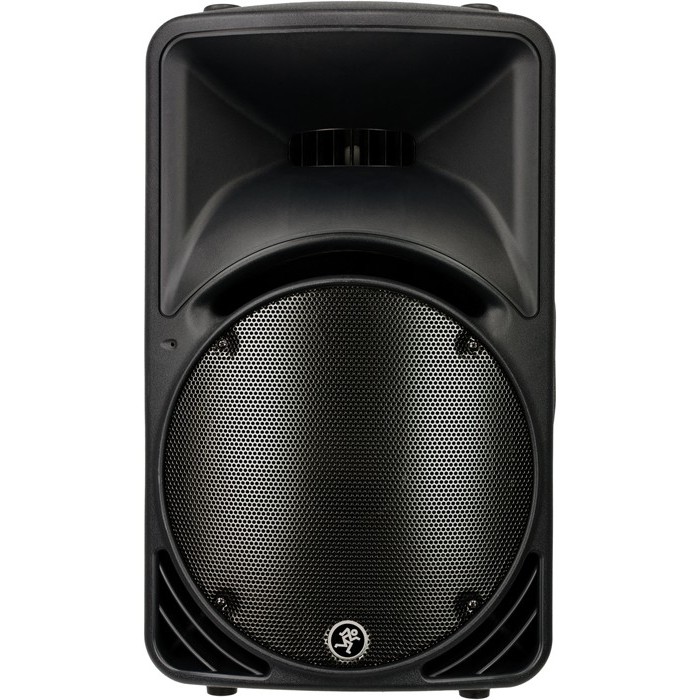

Mackie’s lightweight C Series 2-way passive loudspeakers deliver optimum performance in portable PA, stage monitor, and permanent/flown applications. Rugged, injection-molded composite chassis make them solid performers on the road. Plus their unique shape offers the acoustical benefit of preventing unwanted vibrations and standing waves from forming inside the cabinet, while making them perfect as side tilt-back stage monitors. Precision transducer components, unique Low-Impedance Compensated Crossover design and wide dispersion mean every audience member has a great seat. Available in 2 models—the 12-inch, 500W C300z and the ultra-compact 10-inch, 600W C200—the C Series allows for perfect integration with new and existing PA systems alike.

The C300z enclosure is an asymmetrical monocoque design with no parallel surfaces, causing mid and high frequency resonance's to be reflected at angles into internal damping materials, instead of interfering with the woofer doing its thing. A good floor monitor plays loudly without generating feedback through vocal microphones. A poor floor monitor, on the other hand, will generate feedback just about the time you turn it up to a useable level. Floor monitor feedback is often caused by uneven frequency response and dispersion; some frequencies arrive at the microphone much louder than others. These "spikes" are what trigger feedback as the floor monitor volume is increased. The C300z has incredibly smooth, spike-free response and dispersion over a wide range of treble frequencies. So you can increase its volume without boosting those nasty, feedback-inducing spikes.

Features

  • 2-way portable Precision Passive loudspeaker system
  • 750W / 300W RMS peak power handling at 8
  • 12” long-throw low-frequency transducer with 3” voice coil
  • High-output 1.75" titanium compression driver
  • Ultra-wide, smooth dispersion via multi-cell horn aperture and constant directivity horn
  • Integrated Low Impedance Compensated Crossover (LICC) with full driver protection
  • Lightweight for ultimate portability (46 lb / 20.9 kg)
  • Asymmetrical trapezoidal cabinet for floor monitor positioning

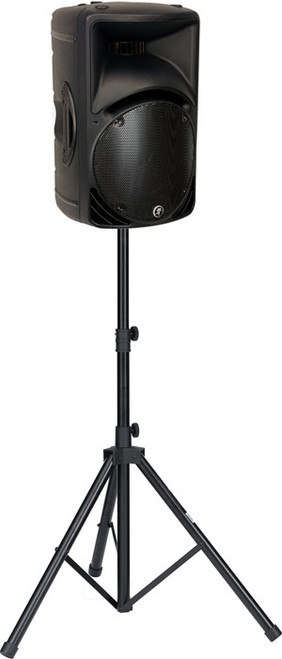

  • Stand / Pole-mountable

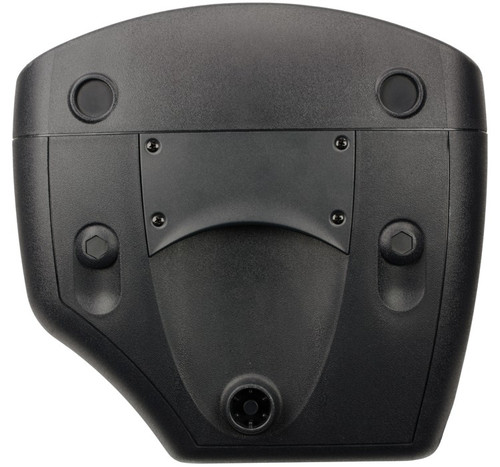

  • Flyable via ten M10 rigging points using the optional eyebolt kit

Specifications

Acoustic Performance
Frequency Response (–3 dB) 55 Hz – 18 kHz
Frequency Range (–10 dB) 45 Hz – 20 kHz
Maximum SPL Long-term @ 1m 123 dB
Low-Frequency Crossover Type 24 dB/octave, time offset corrected
High-Frequency Crossover Type 24 dB/octave
Crossover Frequency 1800 Hz
Audio
Input Type Speakon-style NL4 jack 1/4" TS phone jack
Input Impedance 8 ohms
Power Handling RMS: 300W
Music: 500W
Peak: 750W
Low-Frequency Transducer
Diameter 12" (300 mm)
Voice Coil Diameter 3.0" (75 mm)
Magnet Material Ferrite
High-Frequency Transducer
Diaphragm Diameter 1.75" (44.5 mm)
Diaphragm Material Heat treated titanium
Horn Exit Diameter 1" (24.5 mm)
Horn Design
Type Conical and Exponential
Mouth Size (H x W) 7" (178 mm) x 12" (305 mm)
Horizontal Coverage 90º ±10º (1 kHz – 20 kHz)
Vertical Coverage 45º ±10º (2.8 kHz – 20 kHz)
Safety Features
Over-Excursion Protection Second-Order High-Pass Filter
Driver Protection Dynamic protection for compression driver
Construction Features
Basic Design Asymmetrical Trapezoidal
Material Polypropylene
Finish Black, textured finish
Handles One on each side, one on top
Grille Perforated metal with weather-resistant coating
Operating Temperature Range –10ºC to 45ºC (14ºF to 113ºF)
Dimensions (H x W x D)
Product 26.1" (663 mm) x 16" (406 mm) x 14.8" (376 mm)
Shipping 26.5" (673 mm) x 16.8" (427 mm) x 15.5" (394 mm)
Weight
Net 46.0 lb / 20.9 kg
Shipping 52 lbs (23.6 kg)
