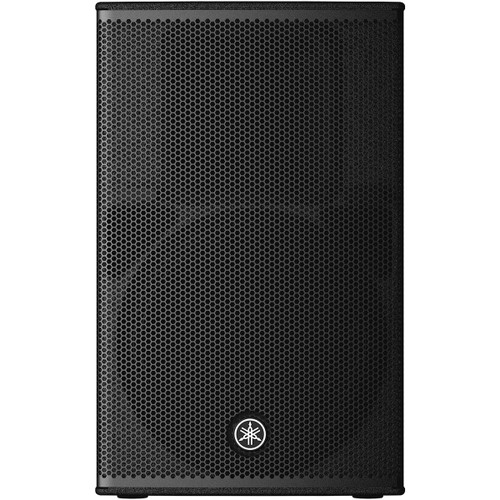

The CHR12 is a professional-grade 12" 2-way loudspeaker designed for demanding sound reinforcement applications. Delivering 1000W of power, it combines a high-compliance 12" LF woofer with a 1.4" HF compression driver mated to a rotatable 60° x 90° constant directivity horn, ensuring precise audio coverage and exceptional clarity for music and speech alike.
Built for durability, the CHR12 comes in a compact plywood cabinet with a tough polyurea coating. It features three integral M10 rigging points, dual 35 mm pole sockets for flexible mounting, and optional UB-DXRDHR12 wall brackets for vertical or horizontal placement. With a maximum SPL of 124 dB and a wide frequency range of 54 Hz-20 kHz, the CHR12 offers reliable performance for a variety of professional audio setups.
The CHR series combines carefully designed transducers with practical installation features to provide versatile solutions for fixed installations, monitors, and FOH applications. Optimized for fixed installations and utility setups, the CHR12 delivers clear, accurate, and powerful sound wherever it’s needed.
| System Type | 2-way Speaker, Bass-reflex |
|---|---|
| Components | LF: 12" cone, 2.5" voice coil, ferrite magnet HF: 1.4" diaphragm, 1" throat compression driver, ferrite magnet |
| Frequency Range (-10 dB) | 54 Hz - 20 kHz |
| Crossover | 2.0 kHz |
| Coverage Angle (H x V) | 90° x 60° (Rotatable) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W; 1m on axis) | 94 dB SPL |
| Peak SPL (Calculated) | 124 dB SPL |
| Power Rating | Noise: 250W, PGM: 500W, Peak: 1,000W |
| I/O Connectors | SpeakON NL4MP x 2 (Parallel) |
| Cabinet Material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handles | Top x1, Side x2 |
| Pole Socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x2, Rear x1 (Fit for M10 x 30-50 mm eyebolts) |
| Floor Monitor Angle | 0° or -7° |
| Dimensions (H x W x D) | 22.8" (578 mm) x 14.1" (359 mm) x 13.4" (340 mm) |
| Weight | 37.7 lbs (17.1 kg) |
