Mackie FreePlay Personal PA

Home /
Mackie FreePlay Personal PA (Discontinued)

Description

Details

The Mackie FreePlay™ is the ultimate all-in-one stereo PA solution. With a portable, battery-powerable design, FreePlay delivers powerful, full-range sound anytime, anywhere. FreePlay features Bluetooth® technology for music streaming from any mobile device that can be mixed with vocal mics, guitars and more. Plus, with the Mackie FreePlay Connect™ app, you get mobile freedom to control everything from levels and EQ to sound-enhancing tools like a feedback destroyer for amazing sound in any situation. From the stage to the boardroom to the backyard, FreePlay delivers powerful, rich sound that inspires. Be you and be heard with the Mackie FreePlay.

Features

Features

Full-range stereo system with high-output 8" woofer for unmatched bass response
Built-in 4-channel digital mixer perfect for connecting vocal mics, guitars and more
Stream your music from any smartphone, tablet or other Bluetooth® enabled device
Flexible choice of AC or battery power, perfect for mobile applications

Optional Lithium-ion battery pack delivers up to 10 hours of continuous performance
Can also be powered with standard batteries (8 x D cell)

Easy-to-use, built-in controls plus option for complete wireless operation
Pocketable Control On The Go
FreePlay Connect™ app available for iPhone® and iPod® touch
Delivers total mobile control over your mix, from input levels and EQ to built-in vocal and instrument effects
Attach your phone to a mic stand for easy mixing while performing or discretely control levels from a podium
Built For Professional Performance
Built-in feedback destroyer for fearless performance with no unexpected, distracting noise
16 great-sounding digital effects like vocal reverbs and delays
Complete control over channel levels, including per channel EQ and effects levels
Choice of speaker modes ensures amazing sound for any application with the touch of a button

Specification

Acoustic Performance
Frequency Response (–3 dB)	80 Hz – 20 kHz
Frequency Range (–10 dB)	65 Hz – 20 kHz
Max Peak SPL (@ 1m Calculated)	114 dB
Crossover Point	3.0 kHz
Dispersion	90 ̊
Equalization
Low Shelving	±15 dB @ 80 Hz
Mid-Peaking	±15 dB @ 2.5 kHz
High Shelving	±15 dB @ 12 kHz
Increments	±3 dB
High-Frequency Section
Voice Coil Diameter	1" (25 mm)
Horn Entry Diameter	1" (25 mm)
Diaphragm Material	Polyethylene Naphthalate
Magnet Material	Ferrite
Low-Frequency Section
Woofer Diameter	8" (203 mm)
Voice Coil Diameter	1.2" (30 mm)
Diaphragm Material	Treated Paper
Magnet Material	Ferrite
Power Amplifiers
System Power Amplification
Rated Power	150W RMS 300W Peak
Low Frequency Power Amplifier
Rated Power	75W RMS 150W Peak
Rated THD	1%
Cooling	Convection
Design	Class D
High Frequency Power Amplifier
Rated Power	37W RMS x 2 75W Peak x 2
Rated THD	1%
Cooling	Convection
Design	Class D
System Processing
Channel EQ	3-band
Main EQ	4 voicing modes
FX	16 presets
Feedback Destroyer	On / Off

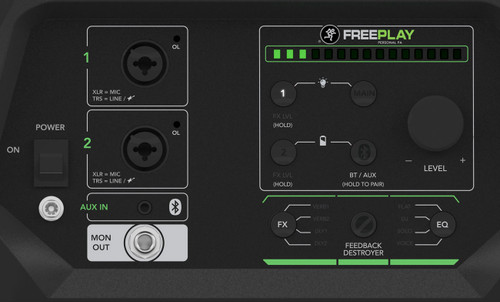

Input / Output
XLR	10k ohm balanced
1/4	100k ohm balanced
1/4	400k ohm balanced
1/8	10k ohm
Monitor Output	1/4” TRS balanced
Dimensions (H x W x D)
Product	9.5" (241 mm) x 17.8" (452 mm) x 9.1" (231 mm)
Shipping	12.5" (318 mm) x 20.5" (521 mm) x 12.2" (310 mm)
Weight
Net	11 lbs (5 kg)
Shipping	15 lbs (6.8 kg)
