Mackie Reach Professional PA System (Discontinued)

Part # 2043950-00
Model # REACH

The Mackie Reach™ is the ultimate all-in-one professional PA system with wireless streaming and control that delivers clear, high-fidelity sound to your entire audience and the stage.

Description

Details

The Mackie Reach™ is the ultimate all-in-one professional PA system. The advanced ARC™ (Amplified Radial Curve) array technology delivers clear, high-fidelity sound to your entire audience, and with the EarShot™ personal monitoring system, Reach™ provides an incredibly flexible built-in stage monitoring solution as well. Plus, with wireless streaming and control over the built-in 6-channel digital mixer via the Mackie Connect™ app for iOS and Android devices, you get wireless freedom to control everything from levels and EQ to sound-enhancing tools like a feedback destroyer for amazing sound in any situation.

Features

Features

  • 720W professional PA system with ultra-wide coverage, built-in personal monitoring and wireless streaming and control
  • Mackie ARC™ (Amplified Radial Curve) array technology utilizes a unique angled waveguide structure for 150° of horizontal coverage
    • Three 1” dome HF compression drivers
    • Dual 6.5” high-output mid/low drivers
  • Mackie EarShot™ personal monitoring system allows performers to hear themselves better on stage
    • Built-in personal monitoring with separate volume control allows for maximum monitoring flexibility

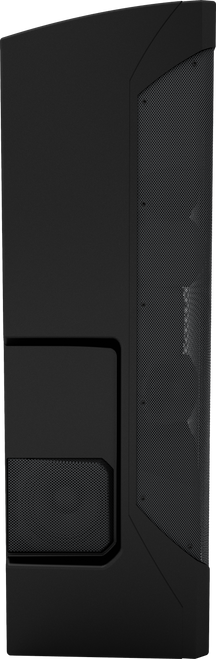

    • Separate speakers on each side of Reach allow for monitoring from either side of the PA
    • Also great for extending side stage coverage (up to 250° total horizontal coverage)
  • Wireless streaming and control over integrated 6-channel digital mixer
    • Complete wireless mixing control via the Mackie Connect™ app for iOS* and Android** devices
    • Stream music via Bluetooth® and integrate into your live mix

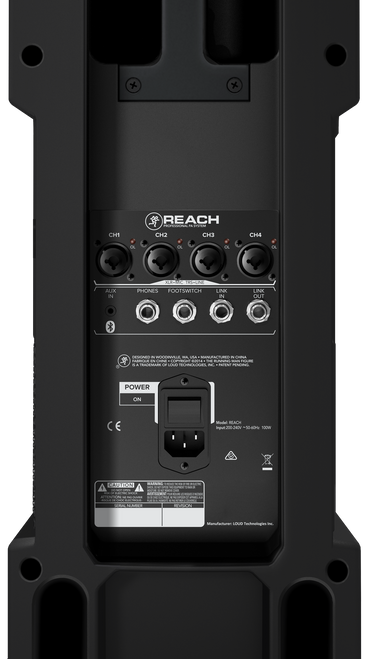

    • All the right connections for your small band, solo act or presentation
      • 4 x XLR combo inputs for vocal mics, guitars, keyboards, etc
      • 1/8” aux input for connected music playback from laptop or other music playback device
      • 1/4” headphone output and silent practice mode
      • Footswitch jack for instant control over FX mute
      • Link out to connect another Reach for additional power and more inputs
    • Loaded with professional sound tools to optimize your sound
      • 16 great-sounding digital effects like vocal reverbs and delays
      • 3-band EQ per channel for tonal control
      • Perform fearlessly with the built-in Feedback Destroyer
      • Choice of speaker modes ensures amazing sound for any application with the touch of a button
      • Setup in familiar venues quickly with 3 user-definable system presets to instantly recall your settings
      • Intuitive, on-product hardware interface allows for control over most mixing features without the need for a smartphone
  • Durable carry bag for easy transportation and protection (available separately)



*Requires iOS 8.0 and later. Supports iPhone 6 Plus, iPhone 6, iPhone 5S, iPhone 5C, iPhone 5, iPad (4th generation), iPad (3rd generation), iPad 2, iPad Air 2, iPad Air, iPad mini 3, iPad mini 2 and iPad mini, iPod Touch (5th generation).

** Officially supports Android versions 4.1-4.4, or 5.0 and greater.
Officially supported/recommended devices include: Google Nexus 6, Samsung Galaxy S6, Samsung Galaxy S5, Samsung S5 Mini, Samsung S4 Mini, Samsung Note 4, Samsung Note 3, LG G Flex, LG G3, HTC One M9, HTC One M8, Moto G, Moto E, Sony Xperia Z3. All other Android devices are not officially supported, but anticipated to function as desired.

Specification
Acoustic Performance
Frequency Response (–3 dB)55 Hz – 17 kHz
Frequency Range (–10 dB)50 Hz – 20 kHz
Max Peak SPL (@ 1m calculated)126 dB
Crossover Point2.6 kHz
Dispersion (H x V)150 ̊ x 50 ̊
High-Frequency Section
Tweeter ArrayVoice Coil Diameter: 3 x 1" (25 mm)
Diaphragm Material: Polyethylene Naphthalate (PEN)
Magnet Material: Ferrite
Full Range Side FillsWoofer Diameter: 2 x 4" (102 mm)
Voice Coil Diameter: 1" (25 mm)
Diaphragm Material: Pulp Composite
Magnet Material: Ferrite
Low-Frequency Section
Woofer Diameter2 x 6.5" (165 mm)
Voice Coil Diameter1.3" (33 mm)
Diaphragm MaterialPulp Composite
Magnet MaterialFerrite
Power Amplifiers
System Power Amplification
Rated Power360W RMS
720W Peak
Low Frequency Power Amplifier
Rated Power2 x 100W RMS
2 x 200W Peak
Rated THD 10%
Cooling Convection
Design Class D
High Frequency Power Amplifier
Rated Power60W RMS x 2
120W Peak x 2
Rated THD 10%
Cooling Convection
Design Class D
Side Fill Power Amplifier
Rated Power2 x 50W RMS
2 x 100W Peak
Rated THD 10%
Cooling Convection
Design Class D
System Processing
Channel EQ3-band
Main EQ4 voicing modes
FX16 presets
Feedback DestroyerOn / Off
Channel Equalization
Low Shelving±12 dB @ 80 Hz
Mid-Peaking±12 dB @ 2.5 kHz
High Shelving±12 dB @ 5 kHz
Increments±3 dB
Input / Output
XLR10k ohm balanced
1/4>100k ohm balanced
1/4400k ohm balanced
1/810k ohm
Link In10k ohm
Link Out100k ohm
Headphone Out10k ohm
Dimensions (H x W x D)
Product28" (711 mm) x 8.6" (218 mm) x 9.5" (241 mm)
Shipping33" (838 mm) x 12.2" (310 mm) x 13.6" (345 mm)
Weight
Net31.4 lbs (14.2 kg)
Shipping37.3 lbs (16.9 kg)
