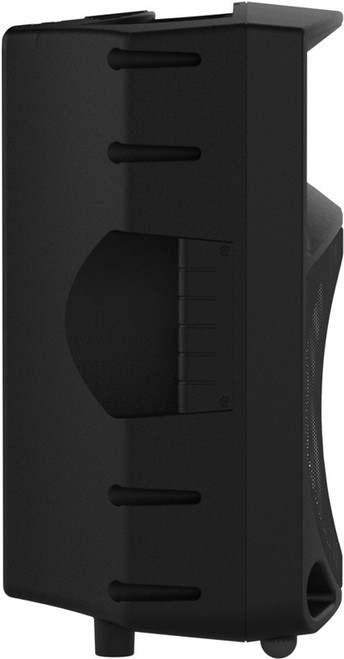

Mackie Thump12 1000W Powered Loudspeaker

Home /
Mackie Thump12 1000W Powered Loudspeaker (Discontinued)

Description

Details

Only Thump Powered Loudspeakers deliver the class-leading, chest-thumping low end you deserve. Each Thump loudspeaker delivers 1000 watts of power, providing the high-output you need in a package that’s tough, lightweight, and portable.

Designed by the world’s leader in portable live sound, Thump loudspeakers offer a 3-band EQ for dialing in the ideal sound. And with a rugged enclosure and robust system protection, you’re more than ready for the next gig. Delivering real-world power levels, application flexibility and class-leading bass response, you can be confident that Thump loudspeakers offers the best performance for your money.

Features

Features

1000W Total System Power
Gig-ready, high-output design
Ultra-efficient Class-D amplification
Class-leading, Chest-thumping Low End
12" High-output woofer
1.4" Titanium dome compression driver
Dynamic bass response delivers amazing lows at all volumes
Total System Optimization
Precision 2-way crossover
Transducer time alignment
System protection / limiting
Application Flexible
3-band EQ with sweepable mid to dial in the perfect sound
Mic/line input allows direct connection of microphone
Flexible mounting options including tripod and pole-mounting
Angled design perfect for use as a stage monitor
Lightweight and Portable
Rugged polypropylene construction designed for heavy use

Specification

Acoustic Performance
Frequency Response (–3 dB)	57 Hz – 20 kHz
Frequency Response (–10 dB)	50 Hz – 23 kHz
Horizontal Coverage Angle	90 ̊
Vertical Coverage Angle	60 ̊
Maximum SPL Peak	125 dB SPL @ 1m
Monitor Angle	50 ̊
Transducers
Low Frequency	12" (305 mm) steel frame, paper cone woofer
High Frequency	1.4" (36 mm) Titanium dome compression driver
Power Amplifiers
Low Frequency Power Amplifier
Rated Power	400W rms 800W peak
Design	Class D
High Frequency Power Amplifier
Rated Power	500W rms 1000W peak
Design	Class AB
Input / Output
Input Type	Female XLR / 1/4" Balanced
Input Impedance	20 kΩ Balanced Bridging 10 kΩ Unbalanced
Thru	Male XLR Balanced
Level Control	Rotating Knob 0 dB at center
Sensitivity	+4 dBu for full output (Level Control @ Center) –36 dBu for full output (Level Control @ Max)
Electronic Crossover
Crossover Type	24 dB/octave
Crossover Frequency	3 kHz
Equalization
Low Frequency EQ	±6 dB @ 80 Hz, shelving
Mid Frequency EQ	±6 dB sweepable from 100 Hz to 8 kHz
High Frequency EQ	±6 dB @ 12 kHz, shelving
Dimensions (H x W x D)
Product	23.5" (596.9 mm) x 14.5" (368.3 mm) x 12.4" (315 mm)
Shipping	25" (635 mm) x 15.2" (386 mm) x 13.2" (335 mm)
Weight
Net	29 lbs (13.2 kg)
Shipping	36 lbs (16.3 kg)
