The Marshall CV320 is a compact full-HD network streaming POV camera featuring a 2.12MP sensor, interchangeable CS/C lens mount, 3G-SDI output, and IP streaming with SRT, RTSP, RTMP, H.264, and HEVC support. Ideal for broadcast, AV-over-IP, and remote production applications.

Description

Marshall CV320 Full-HD Network Streaming POV Camera

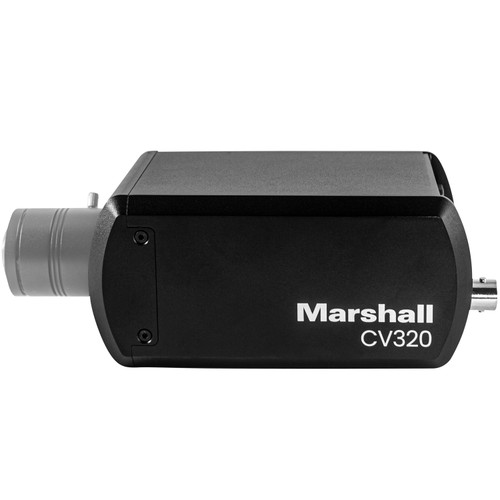

The CV320 is a compact Full-HD network streaming POV camera designed for professional broadcast, AV-over-IP, live production, and remote contribution applications. Built around a 2.12MP 1/2.86" HD sensor, it delivers sharp, color-accurate 1080p60 video with excellent low-light performance and 10-bit 4:2:2 image quality. Its interchangeable CS/C lens mount supports a wide range of lenses, making the CV320 ideal for long-distance shots, telephoto applications, and customized field-of-view requirements.

Supporting simultaneous 3G-SDI and IP streaming outputs, the CV320 integrates seamlessly into both traditional broadcast and modern IP workflows. Advanced streaming support includes SRT, RTSP, RTMP, H.264, and HEVC codecs, enabling high-quality, low-latency video transmission while minimizing bandwidth usage. Remote configuration and camera matching are available through VISCA over IP, VISCA over RS485, and a built-in web interface for efficient system management.

Housed in a rugged aluminum alloy chassis with rear I/O protection, the CV320 is built for reliable operation in demanding environments. Flexible power options include PoE and the included 12 VDC power supply, while audio embedding, easy firmware updates, and a compact footprint make it an excellent choice for broadcast studios, houses of worship, corporate AV systems, sports venues, and cloud-based production workflows.

Note: CS/C Mount Lens Sold Separately

Features

  • 2.12 megapixel 1/2.86" FHD sensor
  • Flexible interchangeable CS & C lens mount - lens sold separately
  • Up to FHD 1920 x 1080p60 over 3G-SDI and IP simultaneously
  • Support multiple streaming protocols including RTSP, RTMP, SRT with H.264 and HEVC codecs
  • Audio input for embedding audio to video output (Audio only embeds to IP output)
  • A small joystick on the included breakout cable allows quick access to OSD Menus
  • Remote adjust & match via VISCA over RS485, VISCA over IP and camera web GUI
  • Powered with an included 12 VDC power supply or PoE over CAT cable
  • Easy firmware upgrade in the field
  • Industrial standard 1/4"-20 mount hole

Specifications

Image Sensor 1/2.86" Progressive CMOS, 2.12MP
Effective Resolution 1920 x 1080 Full HD
Lens Mount Interchangeable CS Mount Compatible
Minimum Illumination 0.01 Lux (Day), 0.005 Lux (Night)
Video Output Simultaneous 3G-SDI and Ethernet IP
IP Streaming Protocols SRT, RTMP, RTSP
Video Codecs H.264, H.265 (HEVC)
Maximum Frame Rate Up to 1080p60
3G-SDI Formats 1080p, 1080i, 720p
Wide Dynamic Range WDR and BLC Support
Noise Reduction 2D and 3D Digital Noise Reduction
Remote Control Web GUI, VISCA over IP, VISCA over RS485
Audio Input Line-Level Audio Embedding for IP Streams
Power Options 12VDC or PoE
Dimensions (H x W x L) 2.09" (53 mm) x 2.52" (64 mm) x 4.47" (113.54 mm) (without lens)
Weight 0.85 lbs (0.39 kg) (without lens)
