Marshall CV610-U3-V2
Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - Black (Discontinued)
Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - Black (Discontinued)
Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - Black (Discontinued)
Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - Black (Discontinued)

By Marshall Electronics

Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI - Black (Discontinued)

Write a Review
Part #:
CV610-U3-V2
Model #:
CV610-U3-V2
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

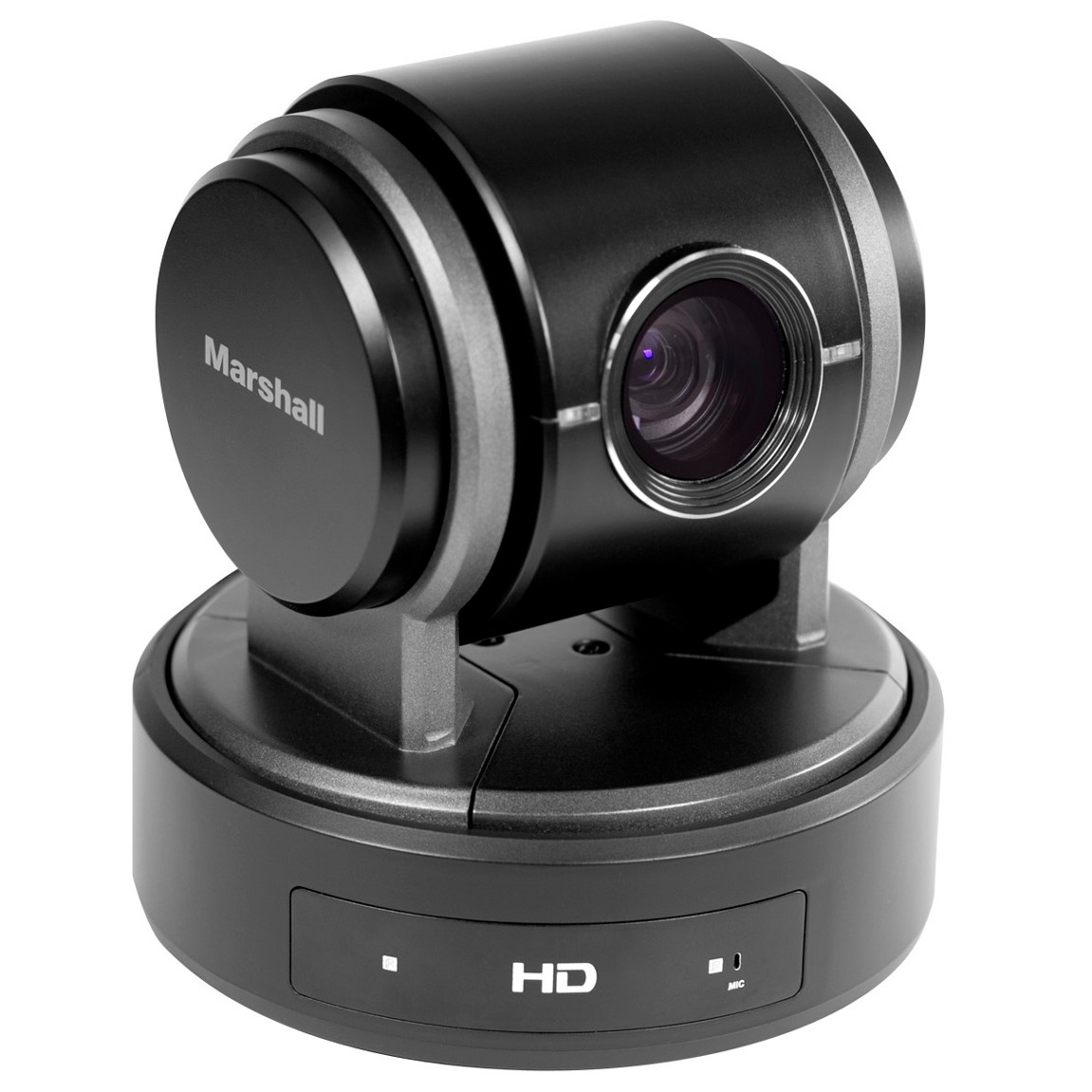

Marshall's second-generation CV610-U3-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output.

Description

Marshall CV610-U3-V2 Compact PTZ Camera with USB 3.0, 2.0 and HDMI

Marshall's second-generation CV610-U3-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output.

The CV610-U3-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs.

The CV610-U3-V2 is ideal for delivering next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications.

Features
  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5° ~ 6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145 mm diameter, 112 mm head diameter, 155 mm height
  • USB 3.0 / 2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920 x 1080p, 1280 x 720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio mic and 3.5 mm TRS audio jack (optional input)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions
  • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0 / 2.0
  • Breakout Cable, USB 3.0 / 2.0 cable, and 12V Power Cord included with camera

Specifications
Optical Zoom Ratio 10x
Max Digital Zoom 12x
Focal Length 3.8 to 38 mm
Field of View Horizontal: 6.4 to 62.5°
Maximum Aperture f/1.8 to 3.4
Focus Control Autofocus / Manual Focus
Dimensions (H x W x D) 6.1" (154.94 mm) x 5.71" (145.03 mm) x 4.41" (112.01 mm)
Weight 6 lbs (2.72 kg)

DOCUMENTS

In The Box
  • (1) PTZ Camera
  • (1) Power Adapter and Power Cord

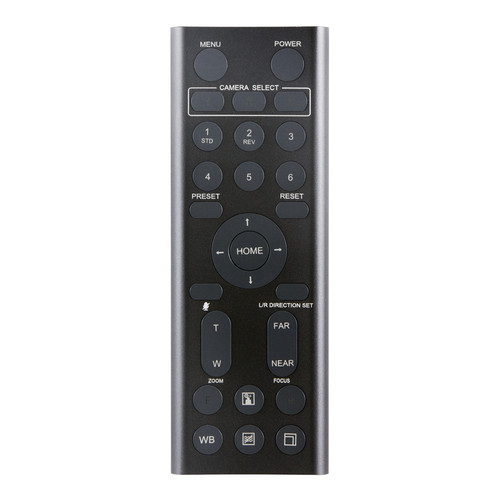

  • (1) IR Remote Controller (3V CR2032 Coin Lithium Battery Required)
  • (1) Camera Breakout Cable
  • (1) USB 3.0 Cable (1.5m)
