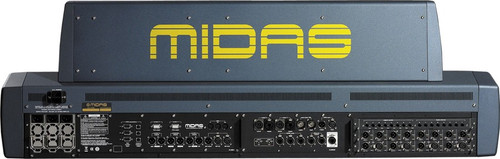

MIDAS PRO6 Digital Mixing Console (Discontinued)

Part # PRO6CCTP
Model # PRO6
The PRO6 can provide up to 64 simultaneous input processing channels and up to 35 discrete mixes in monitor mode, all of which feature MIDAS EQ and a choice of many dynamics processing options.
Description

Details

The PRO6 can provide up to 64 simultaneous input processing channels and up to 35 discrete mixes in monitor mode, all of which feature MIDAS EQ and a choice of many dynamics processing options. By adding additional I/O hardware the PRO6’s network can be expanded up to 288 inputs and 294 outputs. These connections can be patched and routed on a scene-by-scene basis, by use of the PRO6’s powerful snapshot automation.

As with all the PRO Series the PRO6 benefits from the mix and match of all the MIDAS I/O box options, from the fixed configuration DL251 stage box to the highly acclaimed DL431 24 channel 5-way mic splitter. Flexibility can be further increased by adding the KLARK TEKNIK DN9650 digital format converter offering MADI and Dante connectivity.
Users can navigate the channels intuitively without resorting to layers with the aid of MIDAS’ VCA and POPulation groups. It naturally features the legendary and muchloved MIDAS sound characteristics with comprehensive choice of effects and dynamics processing, including the much-acclaimed XL8 compressor styles. The PRO6 can to the fully-loaded at a later date to an 88-channel PRO9 with additional hardware and firmware upgrades.
Features

Features

  • 288 inputs x 294 outputs (max capacity) point-to-point routing anywhere within the Network.
  • 56 primary inputs.
  • 8 return inputs.
  • Up to 80 simultaneous mix channels.
  • 16 Group/Aux & 16 Matrix - 32 Mixes in "monitor" mode.
  • 35 mix busses.
  • 10 VCAs.
  • 6 POPulation Groups.
  • Up to 16 multi-channel FX engines.
  • Up to 36 KT Graphic EQ’s - with optional DN9331 Rapide control.
  • Configurable "Area B".
  • Standard surface I/O.
  • (3 configurable card slots).
  • DL443 "TRS" card.
  • DL452 AES/EBU Input and Output "D" card.
  • DL442 Analogue Output "O" card.
  • Stage I/O.
  • DL351 56 in / 8 out configurable I/O.
  • Dual-Redundant HyperMac (192x192) CAT5-e digital snake included.
  • Fibre Optic connections for optional maximum 500 metre snake.
  • Control centre supplied in flight case.
  • 16U flight case supplied for DL371 DSP and DL351 I/O.
Specification
Sampling frequency96kHz
Latency delay<2ms input to master (no compensation)
Dynamic range110dB, 22Hz to 22kHz (no pre-emphasis)
Maximum voltage gain80dB inputs to subgroups and masters 86dB inputs to aux and matrix
Crosstalk at 1kHz-100dB physically adjacent input channels
Crosstalk at 10kHz-100dB physically adjacent input channels
Fader/pan cut off at 1kHz-100dB
Fader/pan cut off at 10kHz-100dB
Display screens2 x 15” daylight-viewable colour screens
LCD switch33 x RGB colour
Motorised faders29 x touch-sensitive
Fader resolution1024 steps
Encoders102 x touch-sensitive
Encoder resolution512 steps
Dimensions53.7" x 36.4" (Width 1365mm x Depth 924mm)
Weight213.4 lbs (97Kg)
