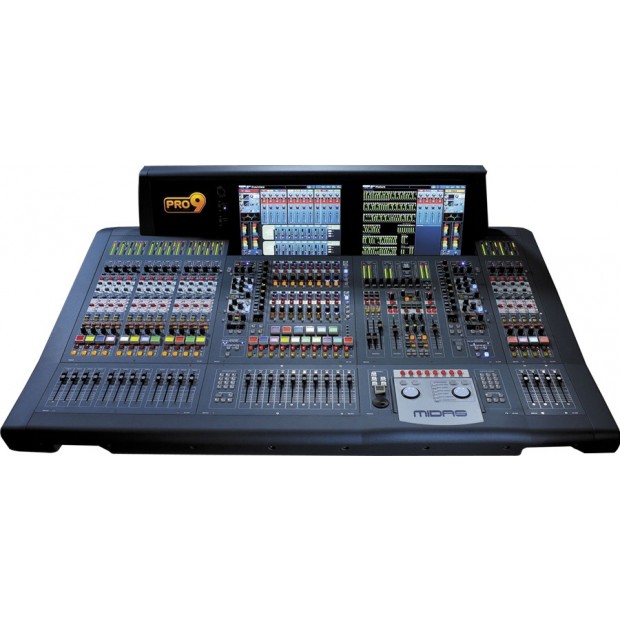

MIDAS PRO9 Digital Mixing Console (Discontinued)

Part # PRO9CCTP
Model # PRO9
The PRO9 benefits from the full range of MIDAS I/O box options, including the DL251 fixed format stage box, the highly acclaimed DL431 24 channel 5-way mic splitter offering three mic preamps per channel and dual digital network connections.
Description

Details

The PRO9 benefits from the full range of MIDAS I/O box options, including the DL251 fixed format stage box, the highly acclaimed DL431 24 channel 5-way mic splitter offering three mic preamps per channel and dual digital network connections, both with full redundancy. Flexibility can be further increased by adding the KLARK TEKNIK DN9650 digital format converter offering MADI and Dante connectivity.

The MIDAS PRO9 comes complete with the features that have been made popular by established MIDAS digital systems, the XL8 and the PRO6. This includes the hugely successful VCA and POPulation groups, which allow users to navigate channels intuitively, without the confusion caused by layers or pages of faders. It features the legendary and much-loved MIDAS sound characteristics, which have their roots in the classic MIDAS analogue consoles. The PRO9 also benefits from the same comprehensive choice of effects and dynamics processing as the PRO6 and XL8, including the acclaimed XL8 compressor styles. Expandable modular connectivity means the system can be upgraded to meet any applications.
Features

Features

  • 288 inputs x 294 outputs (max capacity) point-to-point routing anywhere within the Network.
  • 80 primary inputs.
  • 8 return inputs.
  • Up to 104 simultaneous mix channels.
  • 16 Group/Aux & 16 Matrix - 32 Mixes in "monitor" mode.
  • 35 mix busses.
  • 10 VCAs.
  • 6 POPulation Groups.
  • Up to 16 multi-channel FX engines.
  • Up to 36 KT Graphic EQ’s - with optional DN9331 Rapide control.
  • Configurable "Area B".
  • Standard surface I/O.
  • (3 configurable card slots).
  • DL443 "TRS" card.
  • DL452 AES/EBU Input and Output "D" card.
  • DL442 Analogue Output "O" card.
  • Stage I/O.
  • DL351 56 in / 8 out configurable I/O.
  • DL451 24 in configurable I/O.
  • Dual-Redundant HyperMac (192x192) CAT5-e digital snake included.
  • Fibre Optic connections.
  • Control centre supplied in flight case.
  • 16U flight case supplied for DL371 DSP and DL351 I/O.
Specification
Sampling frequency96kHz
Latency delay<2ms input to master (no compensation)
Dynamic range110dB, 22Hz to 22kHz (no pre-emphasis)
Maximum voltage gain80dB inputs to subgroups and masters 86dB inputs to aux and matrix
Crosstalk at 1kHz-100dB physically adjacent input channels
Crosstalk at 10kHz-100dB physically adjacent input channels
Fader/pan cut off at 1kHz-100dB
Fader/pan cut off at 10kHz-100dB
Display screens2 x 15” daylight-viewable colour screens
LCD switch33 x RGB colour
Motorised faders29 x touch-sensitive
Fader resolution1024 steps
Encoders102 x touch-sensitive
Encoder resolution512 steps
Dimensions53.7" x 36.4" (Width 1365mm x Depth 924mm)
Weight213.4 lbs (97Kg)
