Middle Atlantic PD-415R-SP Rackmount 4 Outlet 15 Amp Series Protection Surge Protector (Discontinued)

Middle Atlantic PD-415R-SP Rackmount 4 Outlet 15 Amp Series Protection Surge Protector (Discontinued)

Name: Middle Atlantic PD-415R-SP Rackmount 4 Outlet 15 Amp Series Protection Surge Protector (Discontinued)
Brand: Middle Atlantic
SKU: MIDATL-PD-415R-SP
Price: 653.4 USD
Availability: OutOfStock

Write a Review

Part #:

PD-415R-SP

Model #:

PD-415R-SP

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

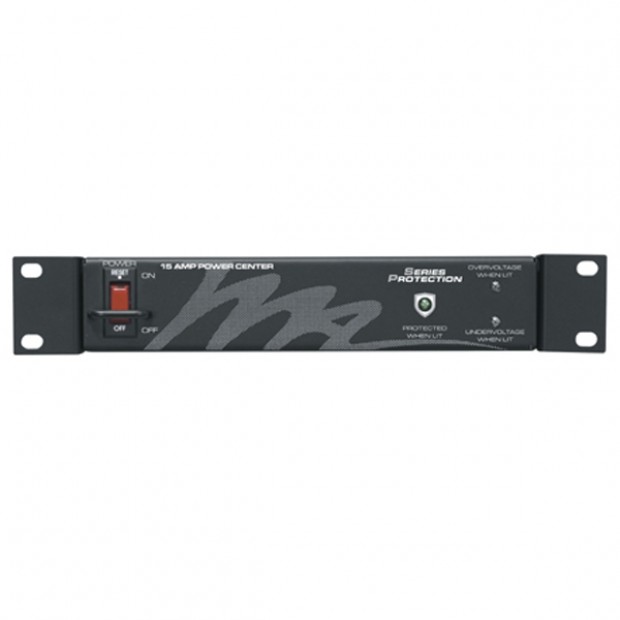

The Middle Atlantic PD-415R-SP Series Protection™ is a 1U half rackmount 15A surge protector featuring 4 outlets and patented non-degrading surge technology.

Description

Available in 15A or 20A models, and in rackmount, half-rack or hard-wired form factors (15A only), Series Protection™ products provide instantaneous protection of AV systems against damaging surges without contaminating system ground, while also providing automatic recovery after both over- and under-voltage events.

All models are 100% MOV-free and utilize all non-degrading and no sacrificial components.

Features

Industry’s fastest patent-pending non-sacrificial surge technology protects equipment from damage without contaminating system ground
MOV-free design is non-sacrificial and non-degrading
Connected devices are automatically disconnected (protected) from sustained over & under input voltage
Automatic recovery after an over/under voltage event minimizes system downtime (unlike devices that require hard reset after a surge event)
Available in 15 or 20 Amps at 120 Volts in rackmount and half rack form factors
Half rack model available – an industry first that requires minimum space without compromising functionality. Features flexible mounting options, for mounting behind screens or other space-restricted areas. Fits in the new HRF Series racks and on the back of VisionFrame™ monitor walls
Hardwired 20 Amp model available – another industry first
Series Protection technology is available for the RackLink™ Power Management System
Series Protection technology meets the most current and applicable high

Specifications

Circuits	1
Rated Amperage	15 Amp
Spec Grade Output Type	Duplex – rear only
Illuminated Combo Breaker ON/OFF	Side (with bar)
Outlets: Total	4
Outlets: Rear	4
Outlets: Front	0
Outlets: Uncontrolled (Switched or Hardwired)	4
Surge	Series Protection
Overload	supplementary overload protector
Over/Under Voltage Notification LED	Two LEDS Over voltage Undervoltage Default=Off
Dimensions (H x W x D)	1.75" (44.45 mm) x 10.4" (264.16 mm) x 7.92" (201.16 mm)
