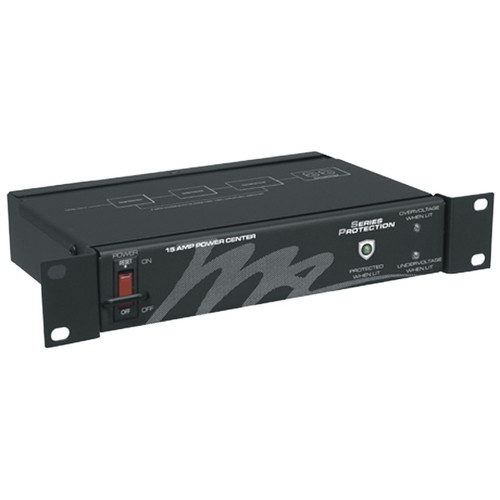

The Middle Atlantic PD-420R-SP Series Protection™ is a 1U half rackmount 15A surge protector featuring 4 outlets and patented non-degrading surge technology.

Description

Available in 15A or 20A models, and in rackmount, half-rack or hard-wired form factors (15A only), Series Protection™ products provide instantaneous protection of AV systems against damaging surges without contaminating system ground, while also providing automatic recovery after both over- and under-voltage events.

All models are 100% MOV-free and utilize all non-degrading and no sacrificial components.

Features

Industry’s fastest patent-pending non-sacrificial surge technology protects equipment from damage without contaminating system ground
MOV-free design is non-sacrificial and non-degrading
Connected devices are automatically disconnected (protected) from sustained over & under input voltage
Automatic recovery after an over/under voltage event minimizes system downtime (unlike devices that require hard reset after a surge event)
Available in 15 or 20 Amps at 120 Volts in rackmount and half rack form factors
Half rack model available – an industry first that requires minimum space without compromising functionality. Features flexible mounting options, for mounting behind screens or other space-restricted areas. Fits in the new HRF Series racks and on the back of VisionFrame™ monitor walls
Hardwired 20 Amp model available – another industry first
Series Protection technology is available for the RackLink™ Power Management System
Series Protection technology meets the most current and applicable highest standard for safety and reliability. ETL and CETL Listed

Specifications

Dimensions (H x W x D)	1.75" (44.455 mm) x 10.7" (271.78 mm) x 7.92" (201.16 mm)
Weight	7.9 lbs (3.58 kg)
