MIPRO's Digital Diversity ACT-2400 Series wireless system addresses the industry's 2.4 GHz issues of range, signal stability, and channel density. The 1/2U, single- and dual-channel digital receivers operate in the 2.4 GHz ISM band using stable 4-frequency FSK modulation circuitry to provide strong RF signal stability and extended range, utilize dual-tuner true digital diversity reception, and deliver 12 compatible channel operations without signal dropout.
The ACT-24HC handheld boasts a condenser capsule with off-axis rejection and low handling noise. These rechargeable transmitters deliver 10 hours of use on a 4-hour charge.

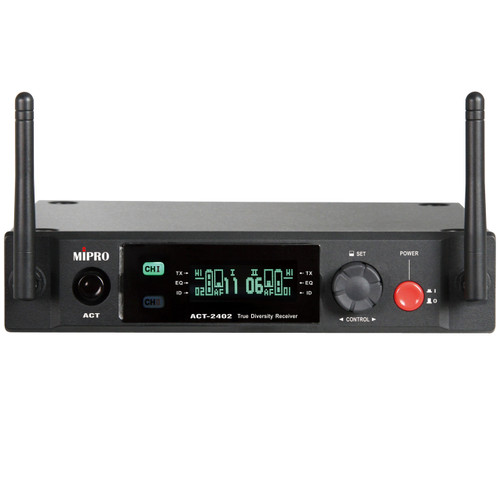

The ACT-2402/ACT-24HC2 system includes one ACT-2402 dual-channel receiver and two ACT-24HC handheld transmitters. The MP-80 charging station is not included and must be purchased separately.
Receiver:
Transmitter:
| Receiver | |
|---|---|
| Chassis | EIA Standard 19" 1/2U |
| Display Graphic | OLED |
| Frequency Range | 2.4 GHz ISM band (2.4 - 2.4835GHz) |
| Preset Frequency | 12 |
| Frequency-hopping | Each channel has 4 preset hopping frequencies |
| Receiving Mode | Dual-tuner Digital Diversity |
| Audio Sampling | 24-bit / 44.1 kHz |
| Sensitivity | -95 dBm |
| S/N Ratio | > 115 dB(A) |
| T.H.D | 0.1 % @ 1 kHz |
| Audio Frequency Response | 20 Hz - 20 kHz (-2 dB) |
| Output Connectors | Balanced XLR & Unbalanced 1/4" (6.3 mm) |
| Audio Output Adjustment | 0 dB (standard), -10 - +20 dB adjustable range |
| Latency | < 4.0 ms |
| Antenna | 2 × 50 Ω fixed antenna |
| Power Supply | External AC Power Supply |
| Power Consumption | 2.4 W |
| Operating Temperature | -10 - +60℃ |
| Dimensions (H x W x D) | 1.7" (44 mm) x 8.3" (210 mm) x 7.1" (180 mm) |
| Weight | Approx. 1.8 lbs (0.8 kg) |
| Transmitter | |
| Frequency Range | 2.4GHz ISM band (2.4 - 2.4835GHz) |
| Channel Set-Up | ACT Sync |
| RF Output Power | 2 mW / 10 mW switchable (country dependent) |
| Transmitting Mode | Frequency hopping |
| Max. Audio Input | 6.5 dBV |
| Battery Meter | 4-level green / red LED display |
| Battery Type | ICR 18500 rechargeable lithium battery x 1 |
| Current Consumption | Approx. 138 mA |
| Operating Time | A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality) |
| Dimensions (Dia x L) | 2" (51 mm) x 9.8" (248 mm) |
| Net Weight | Approx. 0.56 lbs (0.255 kg) |
