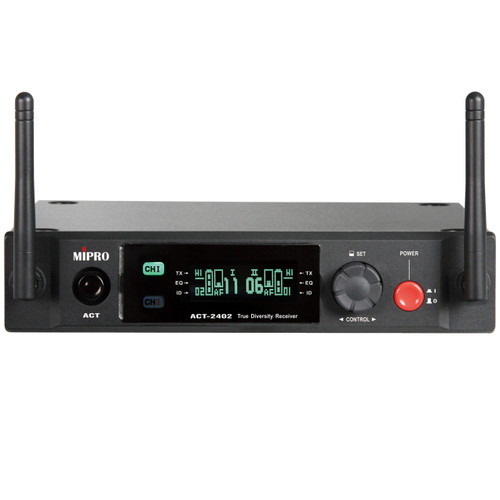

MIPRO ACT-2402/ACT-24TC2 Dual Channel 2.4 GHz Lavaliere System

Part #:
ACT-2402/ACT-24TC2
Model #:
ACT-2402/ACT-24TC2
Availability: Contact Us for Availability Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The MIPRO ACT-2402/ACT-24TC2 system includes the ACT-2402 dual-channel receiver, two ACT-24TC bodypack transmitters, and two MU-54 lavaliere microphones. The MP-80 charging station is not included and must be purchased separately.

Description

MIPRO ACT-2402/ACT-24TC2 Dual Channel 2.4GHz Lavaliere System

MIPRO's Digital Diversity ACT-2400 Series wireless system addresses the industry's 2.4GHz issues of range, signal stability, and channel density. The 1/2U, single- and dual-channel digital receivers operate in the 2.4GHz-ISM band using stable 4-frequency FSK modulation circuitry to provide strong RF signal stability and extended range, utilize dual-tuner true digital diversity reception, and deliver 12 compatible channel operations without signal dropout.

The ACT-24TC miniature bodypack features a separate mute button and status, and selectable impedance for microphone or guitar/line inputs. Both rechargeable transmitters deliver 10 hours of use on a 4-hour charge.

The ACT-2402/ACT-24TC2 system includes one ACT-2402 dual-channel receiver, two ACT-24TC bodypack transmitters, and two MU-54 lavaliere microphones.

The MP-80 charging station is not included and must be purchased separately.

Features

Receiver:

  • MIPRO's Digital Diversity ACT-2400 Series wireless system addresses the industry's 2.4GHz issues of range, signal stability and channel density
  • By using an adaptive tracking algorithm, the 2400-Series skips the common Wi-Fi frequencies effectively avoiding interference from most 2.4GHz communication products
  • Utilizes a 4 frequency spread spectrum technique that avoids any remaining interference
  • With dual tuner true digital diversity receiving, receiving distance is up to 100 meters (330 ft.) with no signal drop-out
  • 12 compatible simultaneous channel operation
  • 24-bit / 44.1 kHz digital audio sampling
  • Lo-Cut and Flat EQ settings
  • Adjustable AF gain and RF power output
  • Half rack single and dual channel systems
  • Receiver is enclosed in a sturdy metal case
  • Front mounted antennas
  • Optional rack mount hardware

Transmitter:

  • Miniature, sturdy plastic compact design
  • 3 LEDs indicate battery status and turn red to indicate low battery
  • LED in the mute/AF button is lit or off to indicate AF status
  • Connector for optional MJ-70 remote mute fob
  • One-touch ACT syncs the transmitter and receiver frequency automatically
  • Selectable impedance for microphone or guitar/line inputs
  • Mini-XLR input with secure screw lock connector for lavaliere, head worn mics and guitar
  • These rechargeable transmitters deliver over 10 hours of use on a 4-hour charge. A 25-minute fast charge provides up to 1-hour operation. The included single rechargeable lithium battery can be easily removed or interchanged for charging. Please note: the MP-80 intelligent battery charger is not included and must be purchased separately.

Specifications

Receiver
Chassis EIA Standard 19" 1/2U
Display Graphic OLED
Frequency Range 2.4GHz ISM band (2.4 – 2.4835GHz)
Preset Frequency 12
Frequency-Hopping Each Channel has 4 Preset Hopping Frequencies
Receiving Mode Dual-tuner Digital Diversity
Audio Sampling 24-bit / 44.1 kHz
Sensitivity -95 dBm
S/N Ratio > 115 dB(A)
T.H.D. 0.1 % @ 1 kHz
Audio Frequency Response 20 Hz – 20 kHz (-2 dB)
Output Connectors Balanced XLR & Unbalanced 1/4" (6.3 mm)
Audio Output Adjustment 0 dB (standard), -10 – +20 dB adjustable range
Latency < 4.0 ms
Antenna 2 x 50 Ω fixed antenna
Power Supply External AC Power Supply
Power Consumption 2.4 W
Operating Temperature -10 – +60℃
Dimensions (H x W x D) 1.7" (44 mm) x 8.3" (210 mm) x 7.1" (180 mm)
Weight Approx. 1.8 lbs (0.8 kg)
Transmitter
Frequency Range 2.4GHz ISM band (2.4 – 2.4835GHz)
Channel Set-Up ACT Sync
RF Output Power 2 mW / 10 mW switchable (country dependent)
Transmitting Mode Frequency hopping
Max. Audio Input 6.5 dBV
Impedance 1.0M Ω
Mute Connector Optional MJ-70 remote mute switch
Battery Meter 4-level green / red LED display
Battery Type 1 ICR-18500 rechargeable lithium battery
Current Consumption Approx. 138 mA Operating Time: A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions (H x W x D) 2.8" (70 mm) x 2.5" (63 mm) x 1" (25 mm)
Net Weight Approx. 0.144 lbs (0.066 kg)

DOCUMENTS

System Includes

  • (1) ACT-2402 Dual-Channel Receiver
  • (2) ACT-24TC Bodypack Transmitters
  • (2) MU-54 Lavaliere Mics
