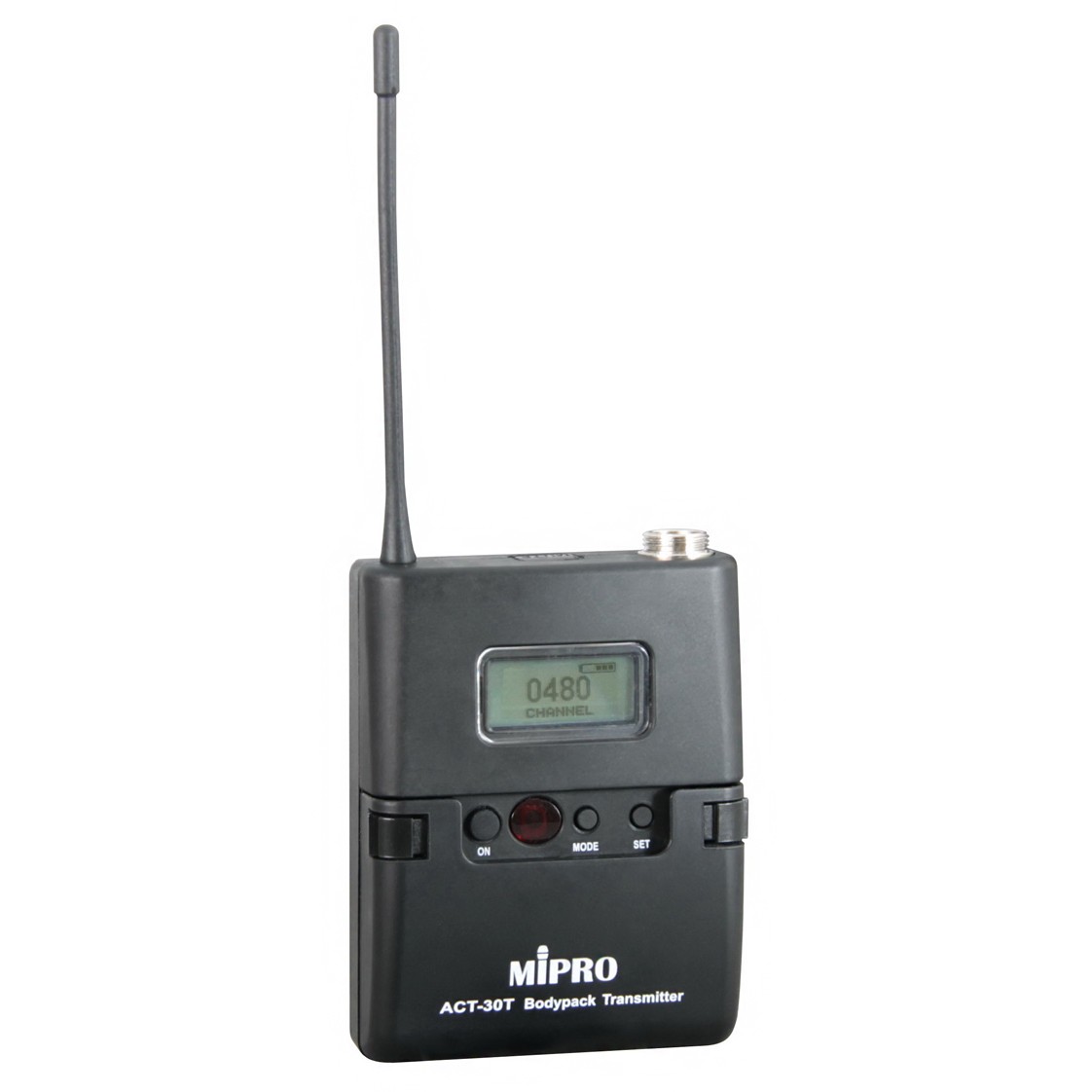

The MIPRO ACT-30T is a miniature bodypack transmitter for wireless earworn, headworn and lavalier microphones. It has a lightweight, compact size with sturdy housing and features a mute switch, mini-XLR connector and antenna.

Description

The MIPRO ACT-30T is a miniature bodypack transmitter for wireless earworn, headworn and lavalier microphones. It has a lightweight, compact size with sturdy housing and features a mute switch, mini-XLR connector and antenna. It's backlit LCD display makes it easier to read operational parameters and indicators in any lighting, and a unique battery design provides easy access to operational controls and protects against accidental setting changes.

Features
  • Lightweight, compact size with sturdy housing
  • Top features mute switch, mini-XLR connector and antenna
  • Backlit LCD displays various parameters and indicators
  • Unique battery cover design provides easy access to operational controls and protects against accidental change of settings
  • Connector for optional MJ-70 remote mute switch cable
  • Low spurious PLL-synthesized technology enhances frequency stability and reliability
  • One-touch ACT syncs the transmitter and receiver frequency automatically
  • Selectable impedance for microphone or guitar/line inputs
  • 4-Pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable
  • Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries
  • Adjustable belt clip allows wearing transmitter in up or down position

Specifications
Housing Rugged Plastic
Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Oscillation Mode PLL Synthesized
Channel Set-Up ACT Sync
LCD Display LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes
RF Output Power 10mW | 50mW (switchable)
Spurious Emissions
Max. Input Level 0dBV
Mute Connector Optional MJ-70 remote mute switch
Battery 2 AA alkaline
Battery Hours 12-14 hours (pending battery quality)
Patents & Approvals Patented & Telecom and safety regulations approved
Dimensions (H x W x D) 3.2" (82 mm) x 2.5" (63 mm) x 0.9" (22 mm)
Weight Approx. 0.18 lbs (0.082 kg) (excluding batteries)
