MIPRO MT-24 Wireless Digital Guitar Transmitter
By MIPRO

MIPRO MT-24 Wireless Digital Guitar Transmitter

Write a Review
Part #:
MT-24
Model #:
MT-24
Availability: Contact Us for Availability Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The MT-24 with an integrated 3.5 mm to 6.3 mm threaded adaptor that can be simply plugged into the guitar for a cable-free, truly wireless audio performance. The MT-24 wireless digital guitar transmitter is for use with MIPRO's ACT 2400-Series systems.

Description

The MT-24 is a digital transmitter with an integrated 3.5 mm to 6.3 mm threaded adapter. The plug can be rotated up to 90°. Simply plug it into the guitar for a cable-free, truly wireless audio performance. The MT-24 wireless digital guitar transmitter is for use with MIPRO's ACT 2400-Series systems.

The MT-24 can be plugged into an electric/acoustic guitar, bass, keyboard, MIDI, keytar, accordion, PC, smartphone, projector with phone jack audio output for wireless audio amplification and performance.

Features
  • Easy to use and the plug can be rotated up to 90°
  • Operates in 2.4 GHz user license-free ISM band
  • True diversity technology and stable digital FSK modulation circuit eliminate signal dropouts and ensure best reception quality
  • Combining FHSS frequency-hopping technique with adaptive tracking algorithm to prevent interferences from other 2.4 GHz wireless devices
  • Eliminates the annoying compander noise that exists in analog systems
  • Transmitter has high-efficiency circuitry design. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The intelligent battery charger maintains a high charge capacity for up to 600 charge cycles for cost saving and is environmentally friendly
  • Easily replaceable battery or recharge the MT-24 directly with an adaptor plug

Specifications
Frequency Range 2.4GHz ISM band (2.4 – 2.4835GHz)
RF Output Power 2 mW / 10 mW switchable (country dependent)
Transmitting Mode Frequency hopping
Max. Audio Input 6.5 dBV
Audio Sampling 24-bit / 44.1 kHz Rate
Frequency Response Frequency Response
Latency < 4.0 ms
Battery Meter 4-level green/red LED display
Impedance 1.0 M Ω
Connector 3.5 mm to 6.3 mm threaded adaptor
Battery Type ICR 18500 rechargeable lithium battery
Current Consumption 138 mA
Operating Time A 25-minute quick charge provides up to 1 hour usage. Minimum 10 hours of operation per 4-hour full charge
Dimensions (H x W × D) 3.3" (84 mm) x 1.4” (35 mm) × 1.1" (29 mm)
Net Weight 0.138 lbs (0.062 kg) (without Battery)

DOCUMENTS

Related Products

Sold Out

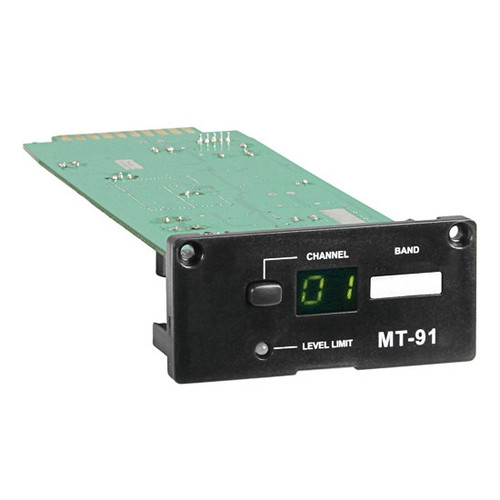

MIPRO MT-91 Wireless Interlinking Transmitter Module (Discontinued)

MIPRO MT-91 Wireless Interlinking Transmitter Module (Discontinued)

The MIPRO MT-91 is a wireless interlinking transmitter module with 16 selectable channels, a numeric LED display and modularized design for easy installation and replacement.
MSRP: $299.00
$219.99

Usually arrives in 5-9 business days.

MSRP: $299.00
$219.99
Sold Out
MIPRO ACT-80H Wireless Handheld Transmitter (Discontinued)

MIPRO ACT-80H Wireless Handheld Transmitter (Discontinued)

The MIPRO ACT-80H Wireless Handheld Transmitter is for use with the ACT-818 and ACT-828 receivers. It features a durable magnesium alloy housing, a capsule shockmount design which minimizes handling...
$0.00

Usually arrives in 5-9 business days.

$0.00
MIPRO MTG-100Ta Digital Portable Mini-Transmitter

MIPRO MTG-100Ta Digital Portable Mini-Transmitter

The MTG-100Ta mini-transmitter is a lightweight, compact portable transmitter for use in combination with MIPRO's tour guide and interpretation system components. The MTG-100Ta uses AA batteries and...
$335.78

Usually arrives in 5-9 business days.

$335.78
Add to Cart The item has been added
Sold Out

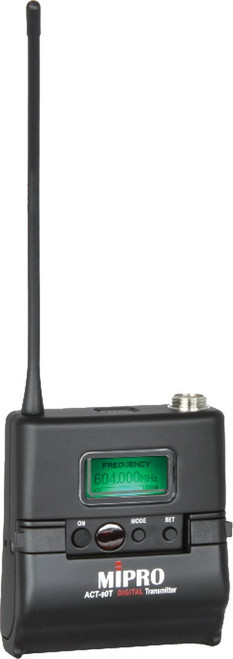

MIPRO ACT-80T Wireless Bodypack Transmitter (Discontinued)
