MIPRO MA-101G/ACT-58H Portable PA System with Wireless Handheld Microphone

Home /
MIPRO MA-101G/ACT-58H Portable PA System with Wireless Handheld Microphone (Discontinued)

Description

Details

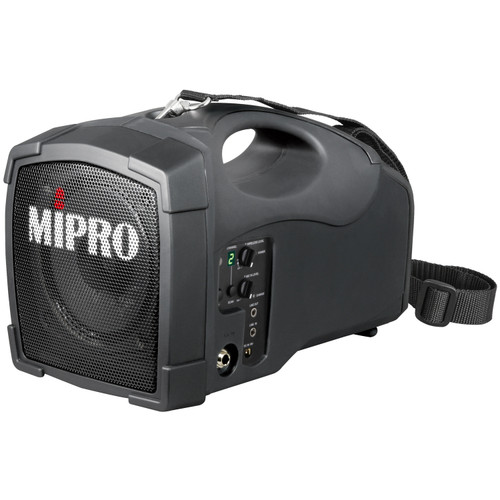

MIPRO MA-101G ACT-58H Portable PA Package with Wireless Handheld Microphone

The MA-101G is an ultra compact and ultra light wireless PA system. The MIPRO MA-101G is powerful and offers a vast array of features in an easy-to-use package. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. It is an excellent public address solution for small crowds. MA-101G is a single channel system. This package includes MA-101G Wireless PA System and an ACT-58H Digital Handheld Transmitter.

Features

Features

MA-101G Wireless PA System:

Powerful sound in a rugged yet lightweight one-piece molded cabinet
AC and built-in lithium rechargeable battery and rechargeable transmitter operation
Up to 10 hours of standby time per 4-hour charge
License-free 2.4 GHz wireless diversity receiver for reliable transmission performance
Four frequency hopping spread spectrum technology skips common Wi-Fi used frequencies to avoid interference
Adaptive tracking algorithm helps in avoiding interference from 2.4 GHz communication products
One-touch scan and sync (ACT) button for fast and easy channel set-up
Built-in USB music player and recorder with LCD screen
User-friendly control panel provides intuitive easy operation

ACT-58H Digital Handheld Transmitter:

Specific outline and color with an ergonomic design in MIPRO's distinctive aesthetic style
Interchangeable capsule module with MIPRO produced premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille instead of sponge foam protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille can be detached easily for cleaning and hygiene practices
World's first ACT™ function provides precise and rapid frequency sync to the receiver
The default gain setting is 0 dB = microphone capsule input sensitivity. High dynamic range for singing aloud without distortion

Specification

Max. Power Output	50W
Amplifier	Class D
Sensitivity	Typical: 90 dB Ι Maximum: 102 dB
T.H.D.	< 1%
Frequency Response	20 Hz ~ 20 kHz
Speaker	5 " full-range, high efficiency
Audio Inputs	Wired: 6.3 mm (1/4") Line-In: 3.5 mm (1/8")
Audio Output	3.5 mm (1/8")
Installation	Microphone stand, table mounted, shoulder belt
AC	External 100 ~ 240 V AC switching power supply (Max, Power Consumption: 60)
DC & Battery	Built-in 14.8 V / 2.6 AH rechargeable lithium battery (MB-10 x 1)
Charge Time	4 hours (automatic charging management)
Standby Time	> 12 hours
Dimensions (H x W x D)	7" (178 mm) x 6.3" (160 mm) x 11.2" (285 mm)
Overall Weight	16.50 lbs (7.48 kg)
