MIPRO MA-101G/ACT-24HC Portable PA System with Wireless Handheld Microphone

Home /
MIPRO MA-101G/ACT-24HC Portable PA System with Wireless Handheld Microphone (Discontinued)

Description

Details

MIPRO MA-101G ACT-24HC Portable PA Package with Wireless Handheld Microphone

This Mipro ultra-compact and ultra-light wireless PA system is powerful and offers a vast array of features in an easy-to-use package. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. It is an excellent public address solution for small crowds. The included MA-101G is a single channel system in a rugged yet lightweight one-piece molded cabinet. It also includes a wireless ACT-24HC digital handheld microphone with a unique multi-layered metal grille that protects the capsule against impact, rolling and pop noise and ensures sound clarity.

Features

Features

MA-101G Wireless PA System:

Powerful sound in a rugged yet lightweight one-piece molded cabinet
AC and built-in lithium rechargeable battery and rechargeable transmitter operation
Up to 10 hours of standby time per 4-hour charge
License-free 2.4 GHz wireless diversity receiver for reliable transmission performance
Four frequency hopping spread spectrum technology skips common Wi-Fi used frequencies to avoid interference
Adaptive tracking algorithm helps in avoiding interference from 2.4 GHz communication products
One-touch scan and sync (ACT) button for fast and easy channel set-up
Built-in USB music player and recorder with LCD screen
User-friendly control panel provides intuitive easy operation

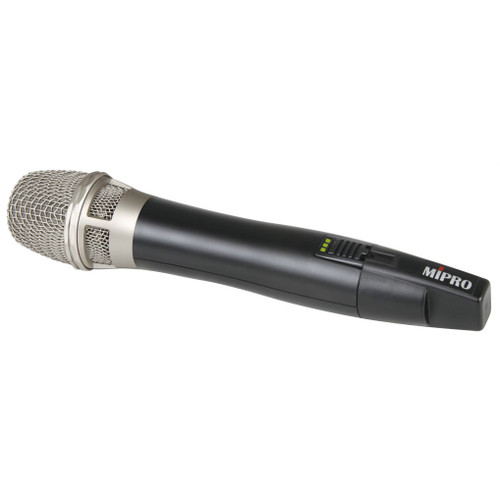

ACT-24HC Digital Handheld Transmitter:

Selectable RF output power; (high 10 mW - low 2 mW)
The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise and ensures sound clarity
Proprietary capsule suspension design eliminates vibrations and touch noises for a true natural sound reproduction
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers
World's first ACT™ function provides precise and rapid frequency sync to the receiver
The transmitter can be either charged by directly placing it in the MP-80 charger or removing the 18500 lithium battery for charging. Bright LEDs indicate battery status

Specification

Max. Power Output	50W
Amplifier	Class D
Sensitivity	Typical: 90 dB Ι Maximum: 102 dB
T.H.D.	< 1%
Frequency Response	20 Hz ~ 20 kHz
Speaker	5 " full-range, high efficiency
Audio Inputs	Wired: 6.3 mm (1/4 ") Line-In: 3.5 mm (1/8 ")
Audio Output	3.5 mm (1/8 ")
Installation	Microphone stand, table mounted, shoulder belt
AC	External 100 ~ 240 V AC switching power supply (Max, Power Consumption: 60 )
DC & Battery	Built-in 14.8 V / 2.6 AH rechargeable lithium battery (MB-10 x 1)
Charge Time	4 hours (automatic charging management)
Standby Time	> 12 hours
Dimensions (H x W x D)	7" (178 mm) x 6.3" (160 mm) x 11.2" (285 mm)
Overall Weight	16.50 lbs (7.48 kg)
