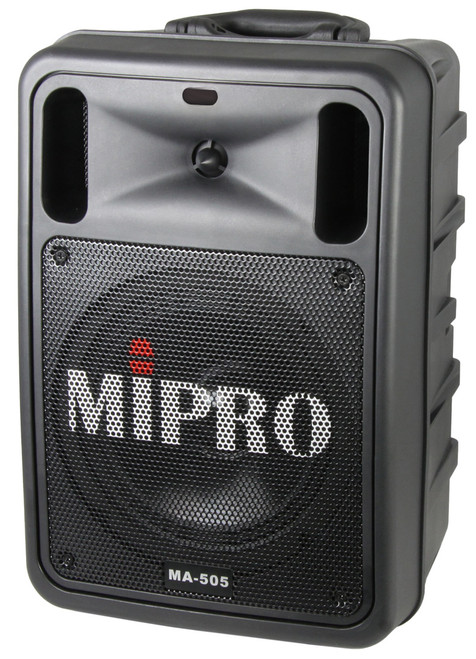

Mipro MA-505 Portable Wireless Bluetooth PA System (Discontinued)
Part # MA505PADMA
Model # MA-505

The MIPRO MA-505 Portable Wireless PA System delivers unparalleled audio performance and craftsmanship and is an ideal public address solution for medium crowds.


Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The MIPRO MA-505 Portable Wireless PA System delivers unparalleled audio performance and craftsmanship.

The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. Built-in digital audio player with optional CD player and interlinking transmitter/receiver package for extended transmission range. It offers an ideal public address solution for medium crowds.

Features

Features

  • 145-watt power of loud and clear sound via high efficient class-D amplifier
  • Rugged one-piece molded enclosure houses 1 " titanium compression driver & 8 " woofer
  • Powerful and crystal-clear sound projection
  • Built-in or detachable receiver module option
  • Wireless receiver with 16 auto-scannable frequencies
  • One-touch Scan & ACT sync button for fast and easy channel set-up
  • Built-in Bluetooth music player for wireless audio streaming
  • A voice priority feature that mutes the music when wireless microphone is used
  • Built-in one-button alarm/siren for warning of threats
  • Built-in AC switching power supply for universal usage and fast battery charge
  • A smart 4-segment battery meter for accurate battery reading and charging status
  • Industry’s only MT-91 wireless interlinking transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage
  • Built-in cable storage compartment
  • AC and lithium rechargeable battery operation
  • Up to 8 hours of stand-by time per 4-hour full charge
Specification
Portable PA
Max. Power Output100W (rms) / 4 ohm , 145W (max) / 4 ohm
AmplifierClass D
T.H.D.< 1%
Frequency Response50 Hz – 18 kHz
SpeakerTweeter: 1" Compression Driver; Bass: 8" Woofer
CoverageH 130°× V 90°
Audio InputsWired: XLR× 1 & 6.3 mm (1/4") × 1
Wireless: Up to 4. 2 Built-in & 2 External Detachable
Audio Player: CDM-2︱CDM-2A︱CDM-2B︱CDM-3A | DPM-3
Line-In: 3.5 mm (1/8") mini-jack
Bluetooth ConnectivityYes
Audio Output1/8" (3.5 mm) mini-jack
Extension SpeakerUnbalanced 1/4" (6.3 mm) jack
VolumeIndividual volume control
FunctionsVOP, Tone control or optional Echo control
Alarm SirenSiren sound with fade-in mode
StorageHand carry, Flat surface or on a speaker stand
Power SupplyAC: Built-in 100 – 240 V AC switching power supply (Max. Power Consumption: 165 W)
DC & Battery: External DC connector. Built-in 25 V / 4.5 A rechargeable lithium (MB-35 × 1)
Charge TimeUp to 4 hours (automatic charging management)
Standby TimeUp to 8 hours
Battery Indicator4-level LED indicator (25/50/75/100%)
ColorBlack
Wireless System
Detachable Module Receiver1 or 2 MRM-70B with Scan & ACT sync
Built-in Fixed Receiver1 or 2 with Scan & ACT sync
Frequency RangeUHF 480 – 934 MHz (country dependent)
Preset Channels & Bandwidth16 preset channels in 24 MHz frequency bandwidth.
AntennaBuilt-in proprietary active high efficiency antenna
Dimensions (H x W x D)15.7" (400 mm) x 11.2" (285 mm) x 8.9" (225 mm)
Weight (Battery Included)Approx. 18.7 lbs (8.5 kg)
