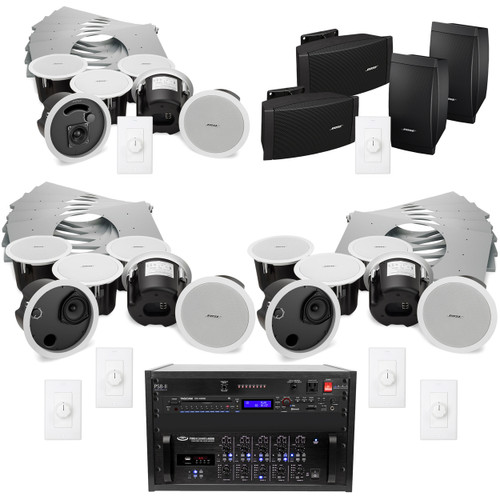

This professional multi-zone commercial sound system delivers high-quality background and foreground music and paging across up to 14,000 square feet. It features premium Bose loudspeakers, including twelve FS4CE 4.5" ceiling speakers with tile bridges, six FS2C 2.25" ceiling speakers, and four FS2SE surface-mount indoor/outdoor speakers. Powered by two Pure Resonance Audio DA2240 240W dual-impedance amplifiers and controlled via the MX84 4-zone 8-channel mixer, this system offers flexible routing and reliable performance. Additional components include the MX8-PM push-to-talk paging microphone, Tascam CD-400U media player with Bluetooth and AM/FM radio, Juice Goose SQ-1500 power sequencer, six VC100W wall-mounted volume controls, a Middle Atlantic RK6 rack, four PREP-3-PREP patch cables, and 2000ft of speaker wire making it ideal for restaurants, retail, offices, or any venue requiring premium multi-zone audio coverage.
Sound System Features:
- Complete multi-zone 70V commercial sound system with four zones
- High-performance Bose loudspeakers with tile bridges and weather-resistant design
- Independent volume control and source selection across all zones
- Dual 240W amplifiers provide robust and reliable power
- Professional 8-channel, 4-zone rack-mount mixer for customized routing
- Push-to-talk microphone enables selective zone paging
- Supports Bluetooth, CD, USB, SD, and AM/FM playback
- Sequenced power control system for safe startup/shutdown
- Durable 6U rack enclosure and necessary cables for plug-and-play setup
About the System Components
Bose FreeSpace FS4CE Ceiling Loudspeakers
The Bose FS4CE ceiling loudspeakers provide full-range, clear audio with a 4.5" cone transducer and are rated for indoor/outdoor use with IP55 protection. These commercial-grade speakers include matching tile bridges for secure ceiling installations and deliver premium sound for foreground music zones.
Bose FreeSpace FS2C Ceiling Loudspeakers
Ideal for background music areas, the FS2C ceiling speakers feature a 2.25" full-range driver and sleek, low-profile design. Each speaker includes an adjustable tile bridge and provides high-fidelity sound with consistent coverage and easy installation.
Bose FreeSpace FS2SE Surface-Mount Loudspeakers
Designed for indoor and outdoor mounting, the FS2SE speakers use the same 2.25" driver as the FS2C and include a robust enclosure for weather resistance. They are perfect for patios or open-air venues requiring consistent sound and durability.
Pure Resonance Audio MX84 4-Zone 8-Channel Mixer

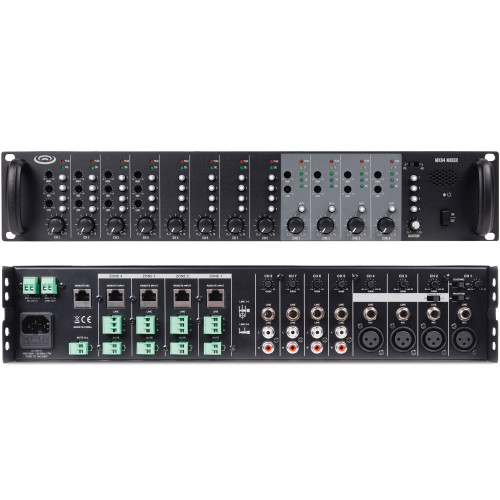

The MX84 is a rack-mounted, 8-channel microphone/line mixer with four individually assignable output zones. Each channel features gain control and zone assignment, giving full routing flexibility and precise control in complex commercial installations.
Pure Resonance Audio DA2240 Dual 240W Amplifiers
This system includes two DA2240 rack-mount amplifiers, each offering 240W of clean, efficient power with dual impedance support (4–16 ohm and 70V/100V). These amplifiers provide the muscle to run multiple speaker zones with clarity and stability.
Pure Resonance Audio MX8-PM Paging Microphone
The MX8-PM is a push-to-talk zone paging microphone designed to integrate with the MX84 mixer. It allows flexible paging to any zone or combination of zones and connects via CAT-5 with daisy-chaining support.
Tascam CD-400U Media Player

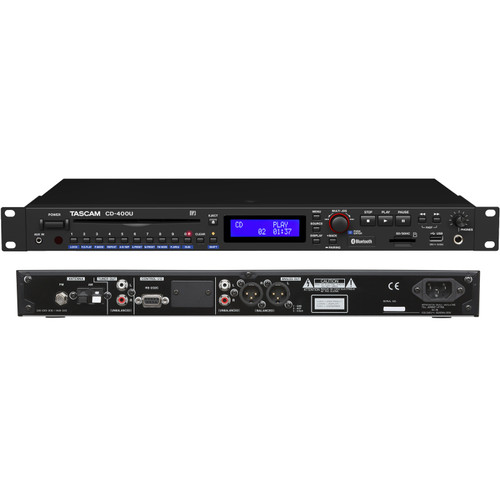

With support for CD, USB, SD, Bluetooth, and AM/FM radio, the Tascam CD-400U is a versatile media source. It supports direct recording from CD or radio to USB/SD and features auto-play and lockout functions for professional environments.
Juice Goose SQ-1500 Power Sequencer

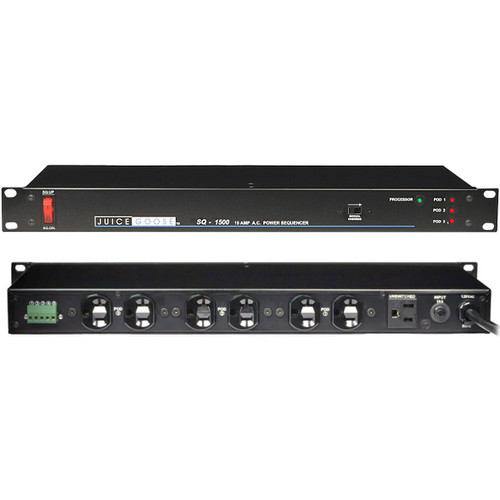

The SQ-1500 ensures safe, sequenced startup and shutdown of your AV equipment. With eight rear-panel outlets and surge/spike protection, it protects your gear and simplifies control.
Pure Resonance Audio VC100W Volume Controls

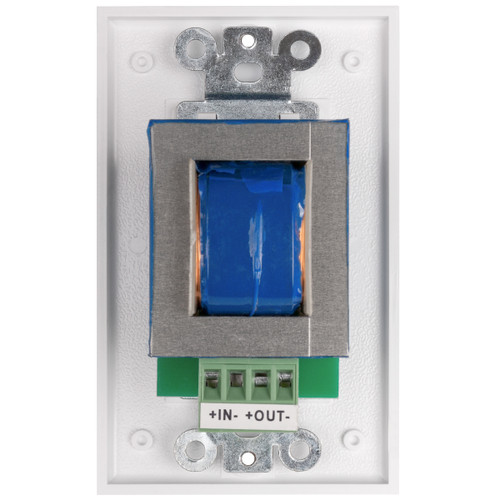

Six white VC100W wall-mounted decora volume controls provide 100W of 70V-compatible attenuation. With smooth rotary action and off-position, each zone gets convenient volume control at the wall.
Zone Setup Example
| Zone 1: |
Foreground Level Music Areas
Six (6) Bose FreeSpace FS4CE Ceiling Loudspeakers with Adjustable Tile Bridges
|
| Zone 2: |
Foreground Level Music Areas
Six (6) Bose FreeSpace FS4CE Ceiling Loudspeakers with Adjustable Tile Bridges
|
| Zone 3: |
Background Level Music Area
Six (6) Bose FreeSpace FS2C Ceiling Loudspeakers with Adjustable Tile Bridges
|
| Zone 4: |
Outdoor Area
Four (4) Bose FreeSpace FS2SE Indoor/Outdoor Surface-Mount Loudspeakers
|
