Multi-Zone Commercial Background / Foreground Music Sound System for up to 14,000 SF
This multi-zone 70V commercial sound system is designed for background or foreground music in up to four independent areas or zones totaling 14,000 sq. ft. We've included a total of six volume controls so you can have two volume controls in your larger areas giving you the flexibility to adjust the volume more conveniently. The Pure Resonance Audio RZMA120BT multi-zone Bluetooth mixer has several audio and microphone inputs enabling the user to choose different audio sources and volumes for the different areas as well as paging to any combination of zones if desired.
Below is an example of how this custom multizone sound system can be set up but can be adjusted to meet your specific needs:
|
Zone 1:
|
Foreground Level Music Areas

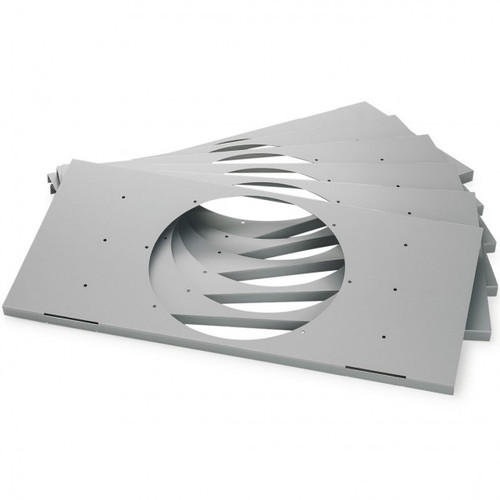

Six (6) Bose FreeSpace DS 40F In-Ceiling Speakers with Tile Bridges
|
|
Zone 2:
|
Foreground Level Music Areas
Six (6) Bose FreeSpace DS 40F In-Ceiling Speakers with Tile Bridges
|
|
Zone 3:
|
Background Level Music Area
Six (6) Bose FreeSpace DS 16F In-Ceiling Speakers with Tile Bridges
|
|
Zone 4:
|
Outdoor Area
Four (4) Bose FreeSpace DS 40SE Indoor/Outdoor Speakers
|
The Bose FreeSpace DS 40F versatile, high-performance, full-range, flush-mount loudspeakers are designed for foreground and background music and speech reproduction in a wide range of installed applications. The DS 40F features high output and 125° conical pattern with a frequency range down to 70 Hz.
The smaller Bose FreeSpace DS 16F high-performance, full-range, flush-mount loudspeakers are designed for background music and speech reproduction and feature a wide, even 140° conical pattern and frequency range down to 80 Hz. These 16-watt loudspeakers deliver background music with notable presence and detail as well as clear, natural-sounding speech reproduction.
The Bose FreeSpace DS 40SE are versatile loudspeakers ideal for both indoor and outdoor applications. They are high-performance, full-range, surface mount loudspeakers designed for foreground and background music with high output and 125° x 125° coverage pattern with a frequency range down to 70 Hz.
The Pure Resonance Audio RZMA120BT 4 zone commercial mixer amplifier is designed with 4 ohms, 70 Volt and 100 Volt terminals and 4 x 120W power output. It is a rack mount audio matrix system multi-room solution with MP3, tuner and Bluetooth. Each of the 4 inputs can easily be designated to a different zone, allowing this multi-source mixer-amplifier to provide audio to 4 different zones. Each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone. Background music, paging, public address, the RZMA120BT has it all covered in any 70V commercial multi-zone audio system. The RZMA120BT is simple to operate without complicated programming. It is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You can also mix 70v and 8 ohms between zones with high impedance and low impedance supported with every zone. Additionally, the RZMA120BT lets you easily record your own message through the mixer-amplifier and play it back through your system via USB or SD card. The RZMA120BT also allows you to conveniently play your own music through the mixer-amplifier via Bluetooth connection. The ease of this system saves both time and energy.

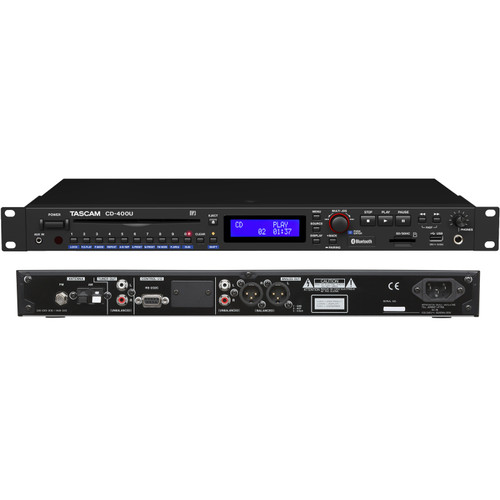

Ideal for a variety of installations, the Tascam CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is also possible. The CD-400U has been designed for full-proof and automatic operation with the inclusion of a "panel lock" function which disables the panel buttons, and an automatic playback function which starts playback upon power up.
The ART PS8-II professional power sequencer is designed to sequence and protect a wide range of equipment. It provides controlled power sequencing to 8 rear AC outlets, each delayed by a fixed amount that is determined by the front panel Sequence Delay control. This allows you to control the power up/down sequence in a system to minimize turn-on transients and the damage that they may cause. Remote switching is also provided for via a rear mounted Remote connector, handy when you want to keep noisy or hot equipment in one room and control power remotely. The PS8-II is also a full-featured power conditioner, with fast acting breaker, EMI and RFI filtering, as well as surge and spike protection to protect your system.

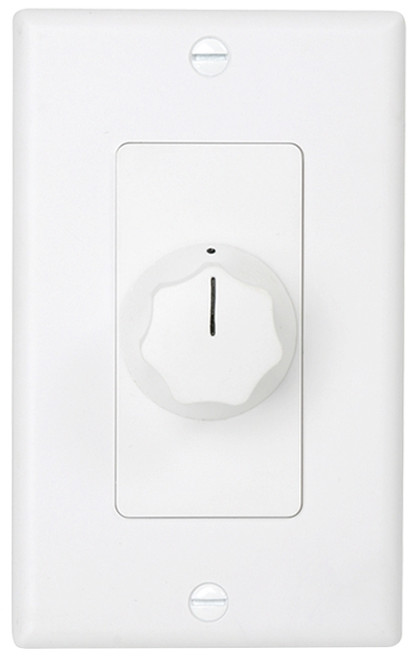

The AtlasIED AT100D decora plate mounted attenuator is part of a high-quality auto transformer series that provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.
This system was designed by our talented Pro Acoustics engineers and can easily be customized to meet your specific needs and budget. Buy confidently with our lifetime tech support included with every purchase. Call us today! 1-888-256-4112
