Multi-Zone Background Music Restaurant Sound System up to 8,000 SF - Up to 4 Zones (Discontinued Components)

Inside the Design

This multi-zone 70V restaurant sound system is perfect for providing background music and paging in up to four areas of a restaurant or bar, covering up to 8,000 sq. ft. With a range of versatile and high-quality components, this system is designed to meet the audio needs of both indoor and outdoor spaces. It includes the Atlas Sound FAP43T-W in-ceiling loudspeakers, Atlas Sound SM63T-B all-weather loudspeakers, Pure Resonance Audio PD6 pendant mount loudspeakers, and a Pure Resonance Audio RZMA120BT mixer amplifier with Bluetooth connectivity. Together, they deliver crisp, clear sound with adjustable volume and paging features for each zone.

Sound System Features:

• Distributed 70V system for up to four zones
• High-quality audio reproduction for indoor and outdoor spaces
• Flexible speaker placement with various loudspeakers: in-ceiling, pendant mount, and weather-resistant surface-mount options
• Wireless Bluetooth capability for easy music streaming
• Priority paging system for emergency announcements across zones
• Compact and user-friendly mixer amplifier with volume and source control for each zone
• Supports up to four distinct zones, each with independent volume control

About the System Components

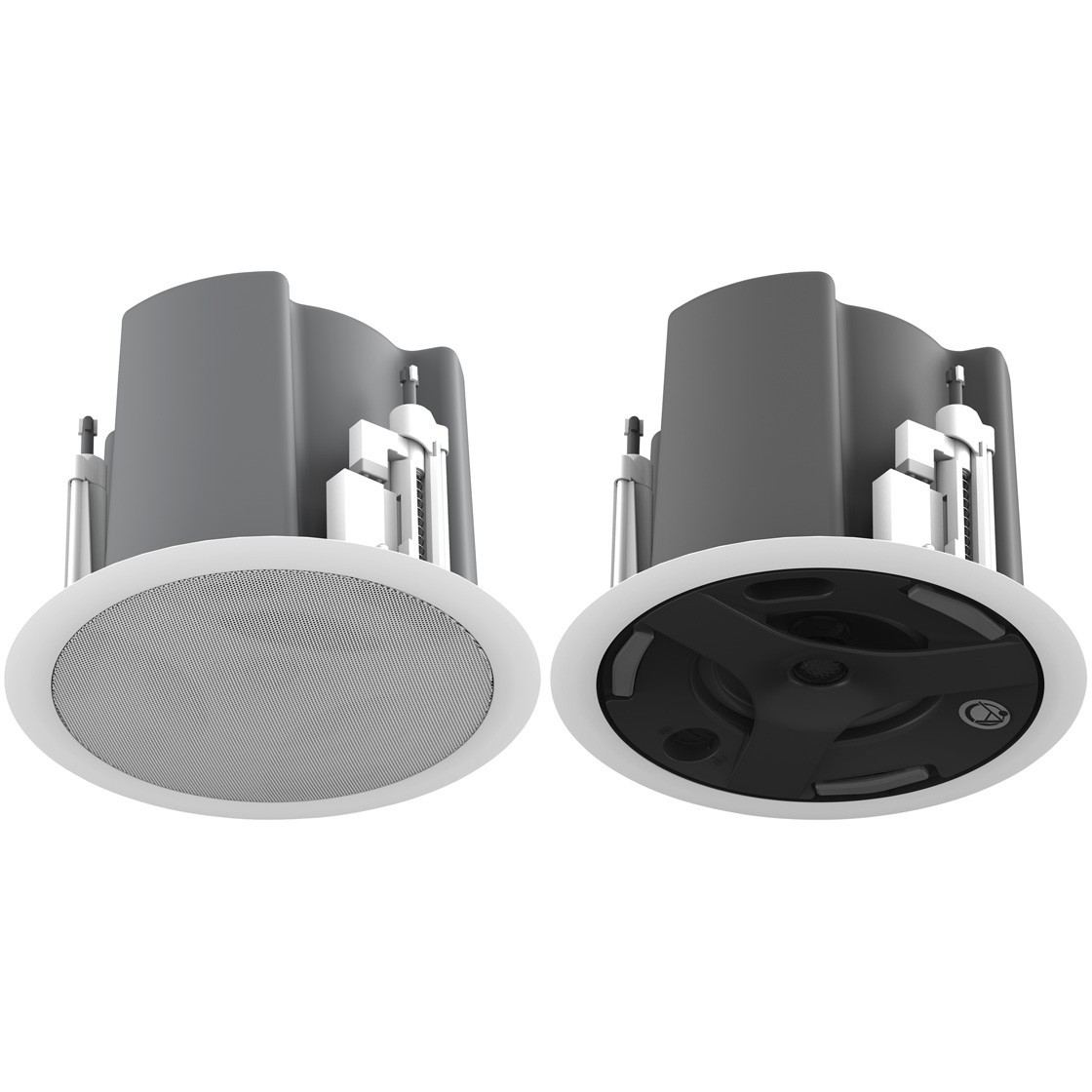

Atlas Sound FAP43T-W Strategy III 4.5" Full-Range In-Ceiling Loudspeakers

The Atlas Sound FAP43T-W loudspeakers provide excellent speech intelligibility and music reproduction with a 4.5" full-range coaxial driver. They are ideal for in-ceiling installation in restaurants, offering a wide 110° dispersion and quick, tool-free installation. The front-mounted selector switch makes it easy to adjust the tap setting without removing the speaker from the ceiling.

Atlas Sound SM63T-B All-Weather 6.5" Loudspeakers

These weather-resistant 6.5" 2-way loudspeakers are designed for both indoor and outdoor use. The SM63T-B features Atlas Sound's TRX Control WaveGuide for superior vocal clarity and wide, even sound coverage. With a 32W 70V/100V line matching transformer, it ensures easy integration into distributed sound systems, making it perfect for patios and outdoor seating areas.

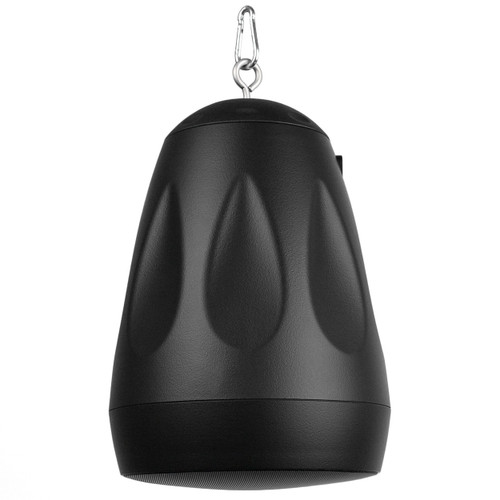

Pure Resonance Audio PD6 6.5" Pendant Mount Loudspeakers

The PD6 pendant mount loudspeakers are designed for commercial environments with exposed ceilings. Their 6.5" woofer and 1" tweeter provide full-range sound and a wide 150° coverage pattern. The durable, weather-resistant design makes them suitable for both indoor and outdoor use, while their compact size ensures minimal visual impact.

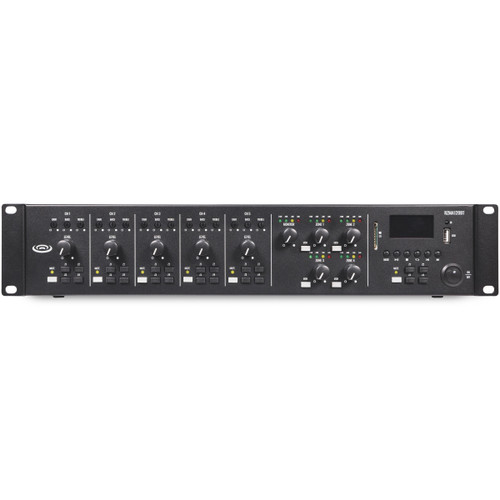

Pure Resonance Audio RZMA120BT 4-Zone Commercial Mixer Amplifier with Bluetooth

The RZMA120BT is a 120W mixer amplifier that supports up to four separate zones, each with individual volume control. It features Bluetooth connectivity for wireless music streaming, as well as multiple audio inputs for flexibility. With priority paging and user-friendly controls, this amplifier is perfect for restaurants and bars requiring customizable sound solutions across multiple areas.

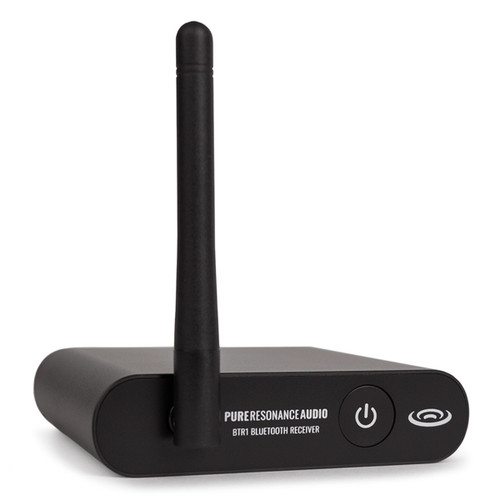

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver

The BTR1 Bluetooth receiver offers wireless audio streaming with a range of up to 100 feet. It easily integrates into your sound system and provides high-fidelity audio with low latency. Ideal for wireless connectivity, it ensures smooth, uninterrupted music streaming throughout your venue.

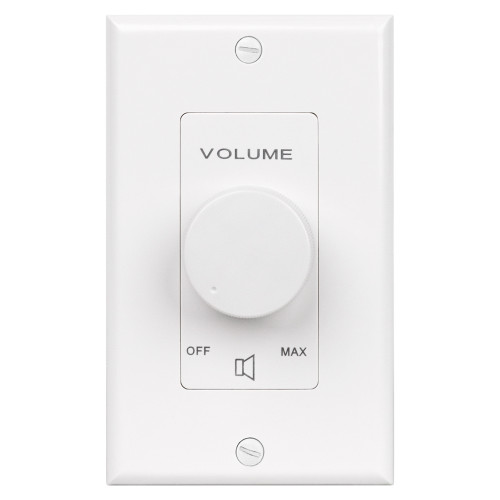

Pure Resonance Audio VC100W 100W Commercial Volume Control

The VC100W volume control is designed for 70V distributed audio systems, offering precise audio level adjustments for each zone. With a smooth rotary dial and reliable performance, this wall-mounted control is perfect for fine-tuning the audio in specific areas of your restaurant or bar.

System & Component Videos

Atlas Sound FAP43T-W Strategy III Series 4.5" Full Range In-Ceiling Loudspeakers

• 4 pole detachable Phoenix-style connector allows easy pre-wiring
• Convenient for daisy-chaining additional speakers
• 70.7V / 100V and 8Ω operation
• Patented "Safety First Mounting System" enables installation without drill or screwdriver
• Ported enclosure provides enhanced low-frequency response
• Front-mounted tap selector switch for easy system tuning, including transformer bypass for 8Ω operation
• Easy installation in drop tile or sheetrock ceilings via c-ring/v-rail tile bridge (included)
• Safety listed to UL1480 and UL2043

Atlas Sound SM63T-B All Weather 6.5" 2-Way Loudspeakers

• Compact, 2-way loudspeaker system for outstanding music and sound reinforcement
• Weather-resistant design for indoor or outdoor use
• UV-resistant talc-impregnated polypropylene, injection-molded weatherproof enclosure
• Powder-coated aluminum grilles and all brass hardware inserts
• Conforms to 100-hour salt spray test per ASTM B117
• 6.5" polypropylene woofer with high efficiency
• 20 mm FerroFluid™ cooled dome tweeter
• Atlas Sound POLYGUARD™ high-frequency circuit protects the tweeter
• Color-matched, heavy-duty zinc-plated and powder-coated "C" bracket (included)
• Barrier strip input with weather-resistant cover
• Screwdriver adjustable 32W 70.7V / 100V transformer with transformer bypass for 8Ω operation
• Bracket included for wall mounting
• Compatible with OMNIMOUNT™ 10.0 Series mounting systems

Pure Resonance Audio PD6 6.5" 2-Way Open-Ceiling Pendant Mount Loudspeakers

• Durable weather-resistant construction
• Power tap transformer switch for 8Ω or 70V/100V operation
• Tap settings:
• 70V: 8Ω, 4W, 8W, 16W, 32W
• 100V: 8Ω, 8W, 16W, 32W
• Includes pendant mounting hardware
• Ideal for background music and paging applications

Pure Resonance Audio RZMA120BT 4-Zone Commercial Mixer Amplifier with Bluetooth

• 120W commercial-grade amplifier with 4 separate zone outputs
• Integrated Bluetooth for wireless streaming
• Multiple audio input options, including RCA and XLR
• Selectable priority paging for emergency and general announcements
• Individual volume controls for each zone
• Rack-mountable design for easy installation

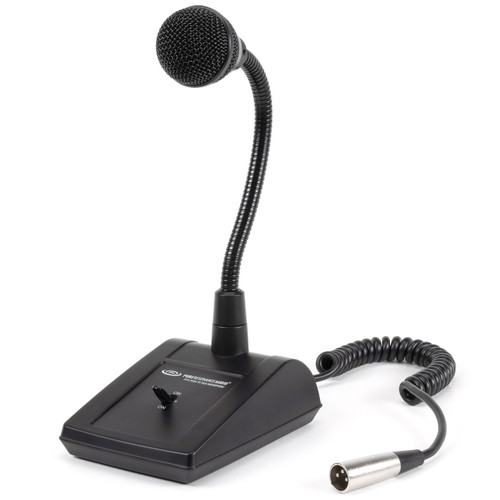

Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone

• Professional push-to-talk desktop microphone for paging applications
• Durable gooseneck design allows easy positioning
• Clear, high-quality vocal transmission
• Heavy-duty metal base for stability
• Compatible with commercial paging systems

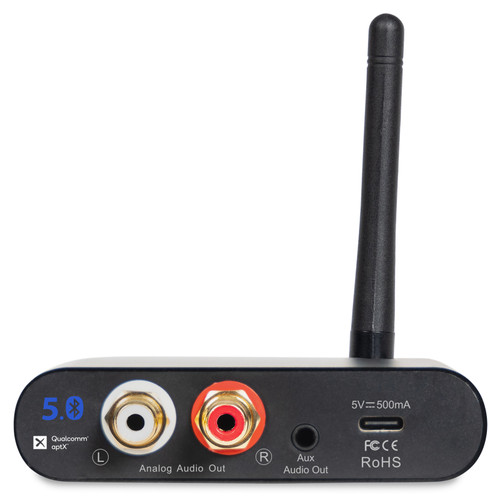

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range

• Wireless Bluetooth receiver with a 100ft range
• Seamlessly integrates with commercial audio systems
• Low-latency and high-fidelity audio streaming
• Compact and durable design

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White

• Stylish Decora-style design with a white plastic plate and matching knob
• Compatible with 25V, 70V, and 100V speaker systems
• High-quality volume adjustment with excellent frequency response
• Seamless volume control with no stop between maximum and off positions
• Provides reliable audio level adjustments for single or multiple speaker lines
• Detachable Euroblock connector accommodates up to 14-gauge speaker wire

• (8) Atlas Sound FAP43T-W Strategy III Series 4.5" Full Range In-Ceiling Loudspeakers
• (4) Atlas Sound SM63T-B All Weather 6.5" 2-Way Loudspeakers
• (4) Pure Resonance Audio PD6 6.5" 2-Way Open-Ceiling Pendant Mount Loudspeakers
• (1) Pure Resonance Audio RZMA120BT 4 Zone Commercial Mixer Amplifier with Bluetooth
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (1) Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range
• (4) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control - White
• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
