The MXL 2003A is a large-capsule cardioid FET condenser microphone featuring a 3-micron gold-sputtered diaphragm for detailed, accurate sound capture in studio recording applications.

Description

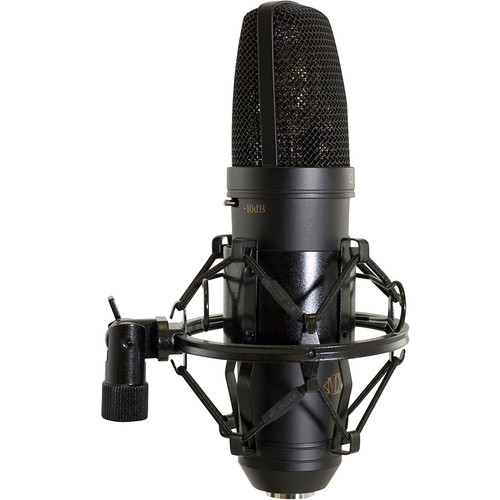

MXL 2003A Large-Diaphragm Condenser Microphone

The 2003A large capsule cardioid FET condenser microphone delivers exceptional sensitivity and sonic detail, making it an excellent choice for vocals, acoustic instruments, and studio recording. Its 3-micron gold-sputtered diaphragm captures subtle nuances with clarity and precision, providing a clean and natural sound character that suits a wide range of recording environments.

Designed with a cardioid pickup pattern, the 2003A focuses on sound from the front while helping reduce unwanted room noise and reflections. As with most large-diaphragm condenser microphones, proper placement and isolation are recommended, especially in high-gain situations, to avoid feedback and ensure optimal performance.

The microphone operates on 48V phantom power and includes a shock mount to minimize handling noise and vibration. With careful cable selection and proper storage when not in use, the MXL 2003A offers reliable, long-term performance for home studios, project studios, and professional recording setups alike.

Features

  • Large-capsule condenser microphone with 3-micron gold-sputtered diaphragm
  • Cardioid polar pattern for focused pickup and reduced ambient noise
  • High-sensitivity design reveals subtle sonic details
  • FET condenser circuitry for clean, accurate audio reproduction
  • Ideal for studio vocals, acoustic instruments, and recording applications
  • Requires 48V phantom power (±4V)
  • Includes shock mount for improved vibration and handling noise isolation
  • Professional studio microphone built for long-term reliability

Specifications

Diaphragm 3 Micron Gold-Sputtered
Frequency Response 20 Hz - 20 kHz
Polar Pattern Cardioid
Sensitivity -42.9 dB re 1 V/Pa
Output Impedance 200 ohms
Equivalent Noise -11 dB (A-Weighted IEC 651)
S/N Ratio 83 dB
Max SPL for .5% THD 152 dB SPL
Power Requirements 48V Phantom Power (+/- 4V)
Metal Finish Black with Black Grill
Dimensions (Dia x L) 1.97" (50 mm) x 7.48" (190 mm)
Weigh 1 lbs (0.45 kg)

DOCUMENTS

In The Box

  • (1) MXL 2003A Mic
  • (1) MXL-56 High Isolation Shockmount
  • (1) Microfiber Cleaning Cloth
  • (1) Carrying Pouch
