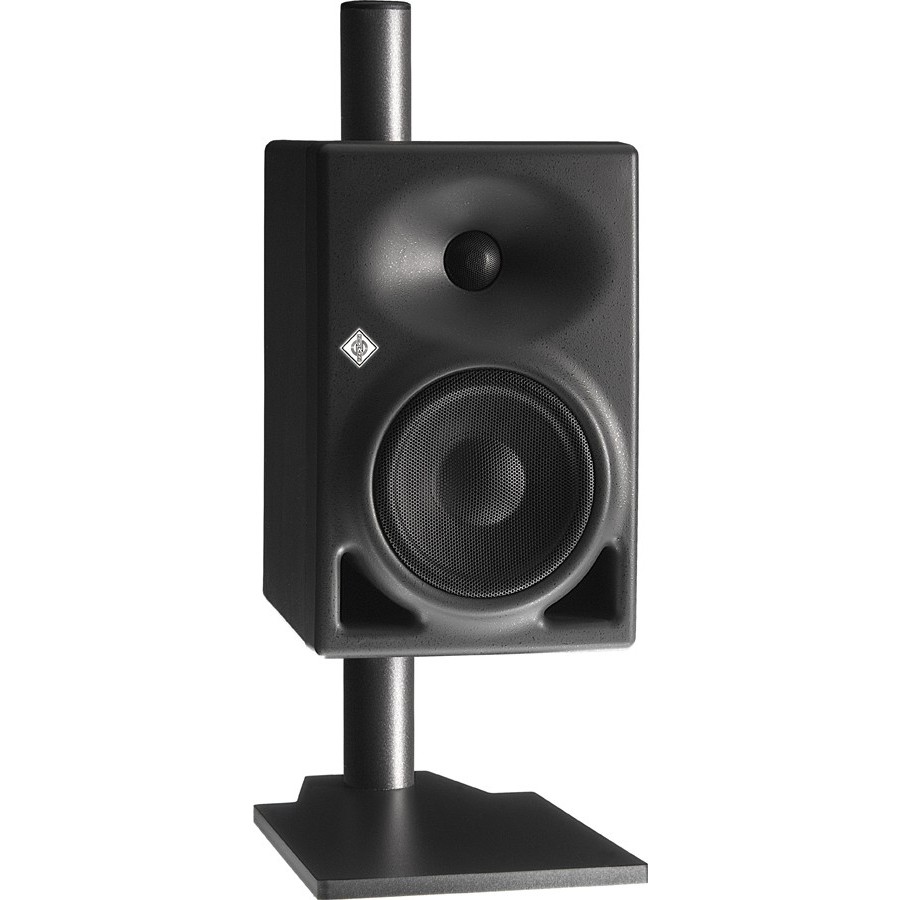

The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.
The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.
A subwoofer, such as the Neumann KH 810, with its 7.1 High Definition Bass Manager™, can be added to deepen the low-frequency response to 18 Hz and increase the system’s maximum output level. The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.
| Acoustics | |
|---|---|
| -3 dB Free Field Frequency Response | 52 Hz … 21 kHz, ± 3 dB |
| Pass Band Free Field Frequency Response | 54 Hz … 20 kHz, ± 2 dB |
| Self-Generated Noise (w/Input Gain Set to 100 dB for 0 dBu) | |
| Sine wave output with a THD < 0.5 % at 1 m | 100 Hz @ 95 dB SPL |
| Max. SPL In Half Space at 3% THD at 1m | 111.1 dB SPL (averaged between 100 Hz and 6 kHz) |
| Max SPL with Pink Noise in a Typical Installation | 92 dB (C) at 2.3 m, (full range) 94 dB (C) at 2.3 m (with KH 810) |
| Electronics | |
| Woofer Amplifier, Cont. (Peak) Output Power | 50W (80W) |
| Tweeter Amplifier, Cont. (Peak) Output Power | 50W (80W) |
| Controller Design | Analog, active |
| Crossover Frequency | 2.0 kHz |
| Crossover Slope (dB/oct.) | 24, 4th order |
| Equalization - Bass | 0, -2.5, -5, -7.5 dB |
| Equalization - Mid | 0, -1.5, -3, -4.5 dB |
| Equalization - High | +1, 0, -1, -2 dB |
| Protection Circuitry | Limiter: low, high |
| Infrasonic Filter Frequency; Slope | 30 Hz; 6 dB/oct. |
| Analog Input Impedance, Electrically Balanced | 10k Ohms in position 94/108 dB SPL at 1 m, 20k Ohms in position 100/114 dB SPL at 1 m |
| Input Gain Control (Sensitivity) | 0 dBu to -15 dBu |
| Output Level Control | 94, 100, 108, 114 dB SPL |
| CMRR | >56 dB @ 15 kHz |
| Maximum Input Level | 24 dBu |
| Displays and Mains Power | |
| Displays and Indicators - Power On | Neumann logo “White” |
| Displays and Indicators - Limit/Clip | Neumann logo “Red” |
| Mains Power Supply, Voltage; Frequency | 100-240 V~; 50/60 Hz |
| Power Consumption – Idle | 20W |
| Power Consumption – Full Output AC | 200W |
| Mechanics | |
| Operating Conditions | +10° C to +40° C (+50° F to +104° F), |
| Transport/Storage Conditions | −25° C to +70° C (−13° F to 158° F), |
| Drivers | Magnetically shielded |
| Woofer | 130 mm (5.25”) |
| Tweeter | 25 mm (1”) |
| Mounting Points | 2 x M8 on rear panel |
| Internal Net Volume / External Volume | 6.5 liters / 9.7 liters |
| Dimensions (H x W x D) | 10.88" (277 mm) x 7.13" (182 mm) x 8.63" (220 mm) |
| Weight | 14.1 lbs (6.4 kg) |
