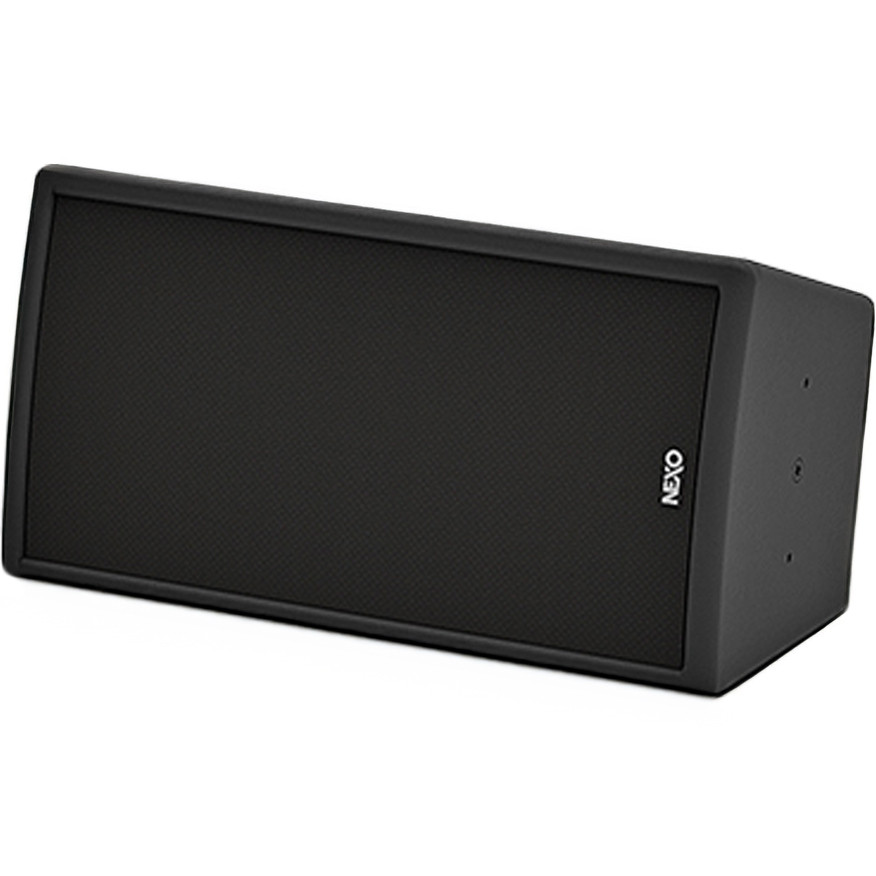

The EPS6 is a highly powerful, installation-dedicated point source loudspeaker designed for venues that demand premium sound performance in a compact footprint. Finished in discreet black, it combines a high-excursion 6" neodymium low-frequency driver with a 1.4" diaphragm compression driver to deliver clear, articulate sound with peak levels up to 125 dB. Its closed acoustic design ensures tight, controlled low-frequency response while maintaining full IP55 weather protection for indoor or outdoor use.
Built from robust 15 mm birch plywood, the lightweight EPS6 enclosure offers exceptional durability and sound quality. At the core of the design is NEXO's rotatable Asymmetrical Dispersion Constant Directivity "PS" horn, allowing precise coverage control to suit a wide range of fixed installation environments, from near-field listening areas to longer-throw applications.
Flexible mounting and integration are supported by a comprehensive range of accessories, including M6 and M10 rigging points for wall mounting, U-brackets, bumpers, or eye-bolts. The EPS6 can also be flown below the optional ELS400 subwoofer to create a compact wideband system. With NEXO's signature phase response, the EPS6 integrates seamlessly with other NEXO loudspeakers, ensuring consistent performance across complex installations.
| Frequency Response @-6 dB | 90 Hz to 20 kHz |
|---|---|
| Sensitivity 1W @ 1m | 98 dB SPL Nominal |
| Peak SPL @ 1m | 125 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° asymmetrical |
| Crossover Frequency | 90 Hz, 120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Power | 310 to 490 Watts/8 Ohms |
| Number of Ways | 2 way passive |
| LF Component | 6" 8 Ohms long excursion driver |
| HF Component | 1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion ("PS") horn |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible Cables Section | Cables from 0.75 mm to 3.31 mm (AWG 18 to 12) copper section |
| Compatible Cables Outside Diameter | Cable with maximum outside diameter of 11 mm |
| Rigging Points | 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grill |
| Finish | Black structural paint |
| Front Finish | UV & Fire resistant acoustic fabric |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| IP Rating | IP55 |
| Dimensions (H x W x D) | 14.4" (365 mm) x 7.8" (198 mm) x 7.1" (181 mm) |
| Weight | 15.7 lbs (7.1 kg) |
