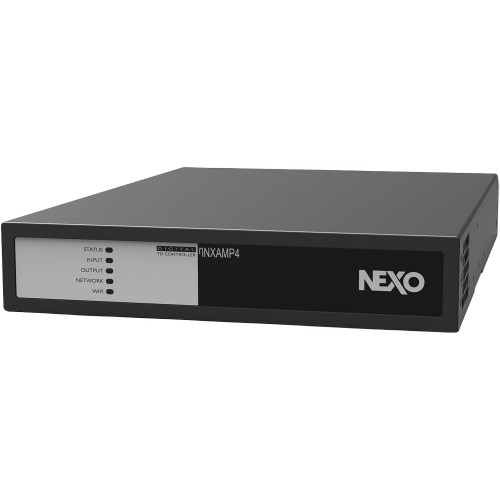

NEXO nanoNXAMP4-D 4-Channel Class D Powered Digital TD Controller Amplifier

NEXO nanoNXAMP4-D 4-Channel Class D Powered Digital TD Controller Amplifier with Dante

Name: NEXO nanoNXAMP4-D 4-Channel Class D Powered Digital TD Controller Amplifier with Dante
Brand: NEXO
SKU: NEXO-NANONXAMP4-D
Price: 1659.99 USD
Availability: InStock

Write a Review

Part #:

NANONXAMP4-D

Model #:

nanoNXAMP4-D

Current Stock:

MSRP: $2,072.00

$1,659.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The NEXO nanoNXAMP4-D is a compact 4-channel Class D powered TD controller delivering 4 x 250W with Dante connectivity, FIR processing, and integrated mixing. Designed for NEXO ID and ePS Series installations requiring networked audio and precision control.

Description

NEXO nanoNXAMP4-D 4-Channel Dante-Powered TD Controller

The nanoNXAMP4-D is a compact, high-performance 4-channel Class D powered TD controller amplifier with Dante, delivering 4 x 250W of pristine audio power in a 1U, half-rack format. Designed for small to medium NEXO installations, it provides the same sonic signature and processing quality as NEXO's flagship NXAMPMK2 controllers in a space-saving, installation-friendly solution.

Advanced FIR filtering ensures precise system EQ and linear-phase alignment, with factory presets optimized for NEXO ID and ePS Series loudspeakers. Integrated Dante/AES67 networking, analog and SPDIF inputs, plus on-board mixer and matrix functions eliminate the need for external processors, reducing system complexity and cost.

With universal power supply, ultra-low distortion amplification, and full remote control via Ethernet or integrated Wi-Fi web interface, the nanoNXAMP4-D is ideal for fixed installations requiring flexible routing, networked audio, and uncompromised sound quality.

Features

4-channel Class D powered TD controller with Dante networking
4 x 250W@4Ω ultra-low distortion amplification
Dante/AES67, balanced analog, and SPDIF digital I/O
FIR processing for precise EQ and linear phase alignment
Factory presets for NEXO ID and ePS Series speakers
On-board mixer and matrix reduce external hardware needs
Universal 100-240V power supply with PFC
Remote control via Ethernet or integrated Wi-Fi web interface
Compact 1U, half-rack design for space-efficient installations

Specifications

Number of Channels	4x amplifier channels, 2 by 2 bridgeable
Power Consumption	20 Watts (Idle),
Frequency Response	+0/-0.25 dB from 20 Hz to 20 kHz
Input Impedance/Input Sensitivity	20K ohms/+13 dBU
Dynamic Range/TDH + N	>106 dB A-weighted/
Latency	1 ms on a flat setup
Audio AD and DA Converters	24 bits @ 48 kHz
Processing	64 bits processing DSPs
Analog Audio Inputs	4x balanced analogue inputs on Euroblock 3.5 mm pitch or unbalanced on RCA
Power Outputs	4x Euroblock 5 mm pitch outputs
Digital Audio Input/Output	1x SPDIF 2ch input/output on RCA + 1x DanteTM 4ch input
GPIO Port	1x Euroblock 3.5 mm pitch with 4x Global purpose Inputs and 1x Global purpose Output
Network Inputs	1x 100 Mb Ethernet port (Remote control)
Mains Sockets	1x IEC C14 socket
Front Panel LEDs	5x LEDs (WiFi/Network/Output/Input/Status)
Remote Control	Through 100 Mb Ethernet port or through integrated WiFi (Access Point or client)
Mains Voltage	Universal Power Supply with Active PFC 100-240 Volts (50/60 Hz)
Power Consumption 1/8 Max. 4 Ohms	250 Watts
Dimensions (H x W x D)	1.75" (44.5 mm) x 8.66" (220 mm) x 11.65" (296 mm)
Weight	6.2 lbs (2.8 kg)
