NEXO DTDAMP4x0.7 4-Channel 700W 1U Digital TD System Power Amplifier
Usually arrives in 5-9 business days.

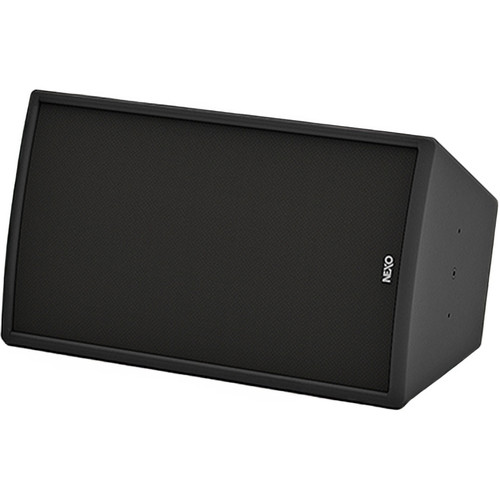

The EPS8 is a compact yet powerful black installation-dedicated point source loudspeaker, designed for fixed applications requiring high output, precise coverage, and discreet integration. Built around a high-excursion neodymium 8" low-frequency driver and a 1.4" diaphragm compression driver, the EPS8 delivers exceptional clarity and impact, reaching peak levels of up to 128 dB while maintaining NEXO's renowned sound quality.
Housed in a robust 15 mm birch plywood enclosure, the EPS8 combines durability with a lightweight form factor ideal for permanent installations. Its bass-reflex design ensures clean, extended low-frequency performance, while the rotatable NEXO Asymmetrical Dispersion Constant Directivity "PS" horn allows precise tailoring of coverage to suit both short- and long-throw listening areas. With an IP55 rating, the black EPS8 is well-suited for demanding indoor and protected outdoor environments.
Designed as the perfect companion to NEXO ELS400 and ELS600 subwoofers, the EPS8 integrates seamlessly into scalable wideband systems. Multiple M6 and M10 rigging points support U-brackets, wall mounts, eye-bolts, and suspension accessories, enabling flexible mounting in horizontal or vertical orientations. NEXO's phase-aligned acoustic signature ensures effortless integration with other NEXO systems without complex electronic adjustment.
| Frequency Response @-6 dB | 80 Hz to 20 kHz |
|---|---|
| Sensitivity 1W @ 1m | 100 dB SPL Nominal |
| Peak SPL @ 1m | 128 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° asymmetrical |
| Crossover Frequency | 80 Hz, 120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Power | 350 to 570 Watts/8 Ohms |
| Number of Ways | 2 way passive |
| LF Component | 8" 8 Ohms long excursion neodymium driver |
| HF Component | 1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion ("PS") horn |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible Cables Section | Cables from 0.75 mm to 3.31 mm (AWG 18 to 12) copper section |
| Compatible Cables Outside Diameter | Cable with maximum outside diameter of 11 mm |
| Rigging Points | 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grill |
| Finish | Black structural paint |
| Front Finish | UV & Fire resistant acoustic fabric |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| IP Rating | IP55 |
| Dimensions (H x W x D) | 16.7" (423 mm) x 9.8" (250 mm) x 8.9" (227 mm) |
| Weight | 17.9 lbs (8.1 kg) |
