This AtlasIED Observation Room Sound System provides a simple solution to remotely listen, record and talk back (optional) from a central location. The microphone feed can connect to a single or central observation room. As the observer watches and listens to the case room, the audio can be routed to a recording device such as a computer or digital recorder. The small microphone size and low profile provides an excellent option for listening and recording observation rooms and discrete applications.
This system allows faculty, trainers, administrators, etc., to observe while working cases without being present in the room. The observer can speak when necessary (through an optional talk back microphone) and also discretely record comments and observations along with the room’s ambient audio. The system can record all audio allowing permanent archiving for future needs by adding an optional recording device.

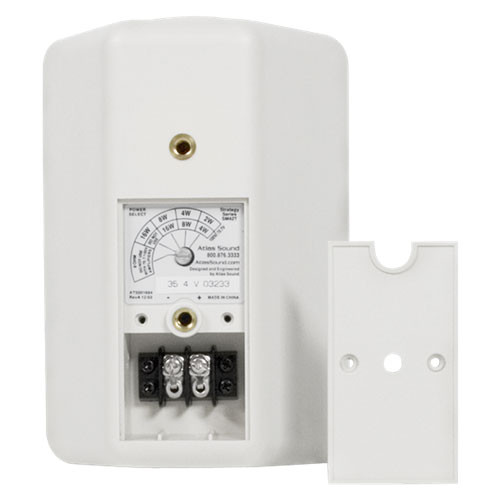

Use surface-mount AtlasIED SM42T Series loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service..

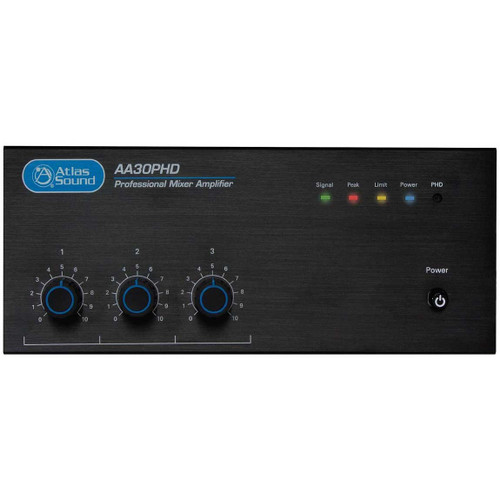

The AtlasIED AA30PHD is a 30 Watt, 3-Input Mixer Amplifier that is specifically designed for use in 70.7V speaker systems. The AA30PHD features a unique automatic system test using the front panel "Push Here Diagnostic" button. This internal circuitry is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts. This allows for quick troubleshooting on site and after the sale.
The AKG PZM10 is part of the Pressure Zone Microphone line, and is designed for security, surveillance, and conference-table use. Since it does not look like microphones, it is inconspicuous. Each mic’s tubular housing mounts in a 25/32-inch diameter hole in a ceiling panel, wall or table. The PZM-10 has a mic level output and a 3-pin XLR-type connector for easy plug-in installation. The mic requires 12 to 48V phantom power. It requires 12 to 24VDC. Like other Pressure Zone Microphones, the PZM-10 uses a miniature mic capsule mounted very near a sound-reflecting plate or boundary, in the Pressure Zone. In this zone, direct sound from the sound source combines in phase at all frequencies with reflected sound off the boundary.
AtlasIED SM42T 4" Wall Mount Loudspeakers:
AtlasIED AA30PHD Mixer Amplifier:
AKG PZM-10 Pressure Zone Microphone:
Usually arrives in 5-9 business days.
Usually arrives in 5-9 business days.
