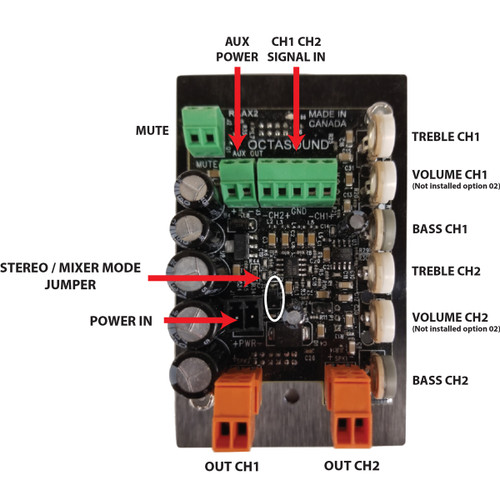

The Octasoud RAAX2-02 2-channel remote power amplifier is only 2.75" W x 4.5" H x 1.4" D and capable of delivering an incredible 100 watts! Volume controls mounted on the front panel. Order this option for devices such as TV's, Background Music, Radio, etc that require volume controls. Two modes of operation via jumper. Independent two-zone volume controls or two mixed input channel volume controls to one zone.
Applications:
| Power Output | 30W / Channel 8 Ohms 50W / Channel 4 Ohms |
|---|---|
| Frequency Response | 20 Hz to 20 Khz |
| Maximum Input Levels | 0.5Vrms |
| THD+N | 0.1% (VCC = 21 V, f = 1 kHz, PO = 25W) |
| Signal to Noise | 102dB (Max output at THD+N < 1%, f = 1 kHz, Gain = 20 dB) |
| Crosstalk | -100dB (VO = 1 Vrms, Gain = 20 dB, f = 1 kHz) |
| Gain | 17 dB (150 mv to 1.0 v) |
| Aux power Out | 15Vdc / 1 Amp |
| Input Sensitivity | 30.5dB |
| Input Impedance | 11 kOhms |
| Tone Controls | Bass and Treble +/- 14 dB |
| Temperature Range | -20 °C to 55 °C |
| Power Required | Local power via AC/DC adapter 15 to 24Vdc 1 to 5 amps |
| Input Connector | Terminal Block |
| Output Connector | Euro Style Terminal Block - 2 x Orange |
| Power In Connector | Euro Style Terminal Block - 1 x Black |
| Aux Power Connector | Terminal Block |
| Mute Connector | Terminal Block |
| Dimensions (H x W x D) | 4.5" (114.3 mm) x 2.75" (69.85 mm) x 1.4" (35.56 mm) |
