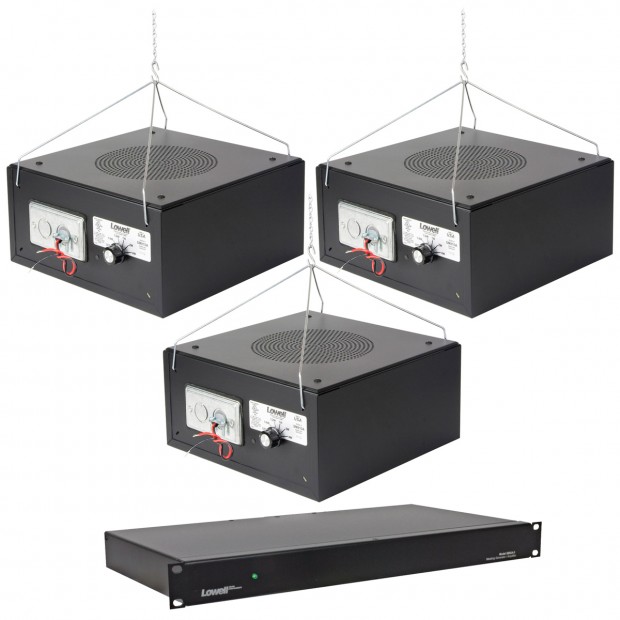

Office Sound Masking System with 12 SM810A Speakers and Lowell Sound Masking Generator

Fully integrated, highly cost effective sound masking system solutions that meet the requirements of any office space and commercial environments from single floor, multi-zone installations to large multi-building office complexes.

Sound Masking Office System with 12 SM810A Speakers and Lowell Sound Masking Generator is perfect for use in stand-alone applications (for sound masking or sound masking with music/paging), or to interface with existing music/paging systems). The pink noise signal (equal energy/octave) is fed to speakers to produce the characteristic windy sound that masks ambient noise.

A sound masking system helps provide greater conversational privacy and productivity in the workplace by adding specially shaped ambient noise to an open-office environment. Sound masking speakers are typically positioned above the finished lay-in tile ceiling in plenum space; however, models with a white finish are sometimes specified for use in open-architecture truss-type ceilings.

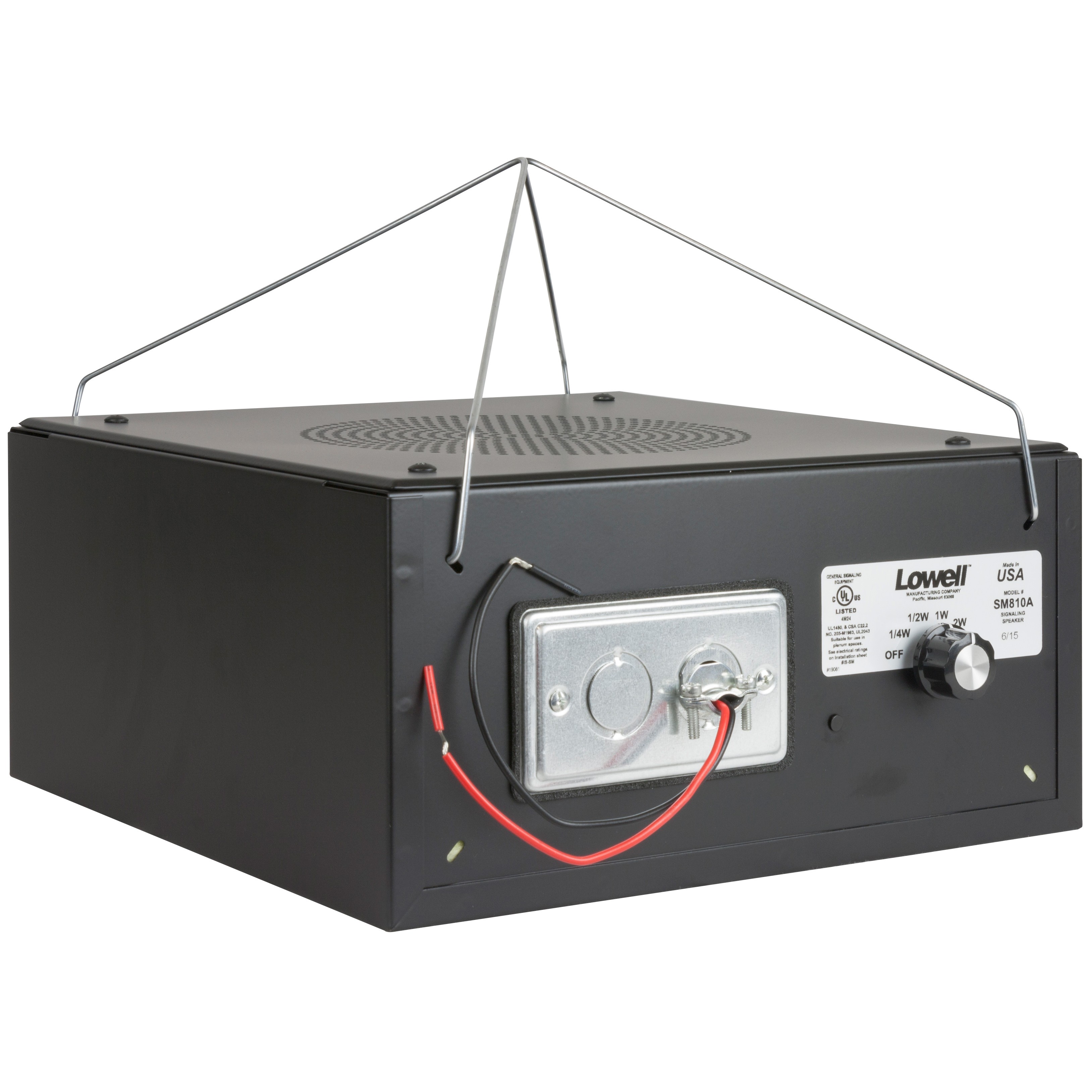

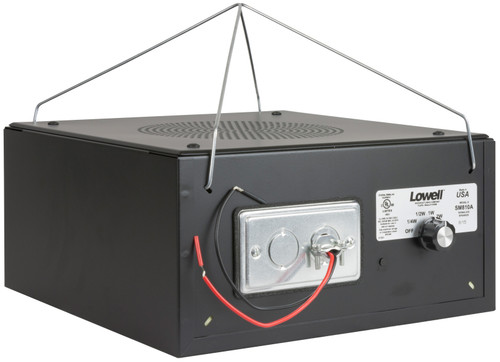

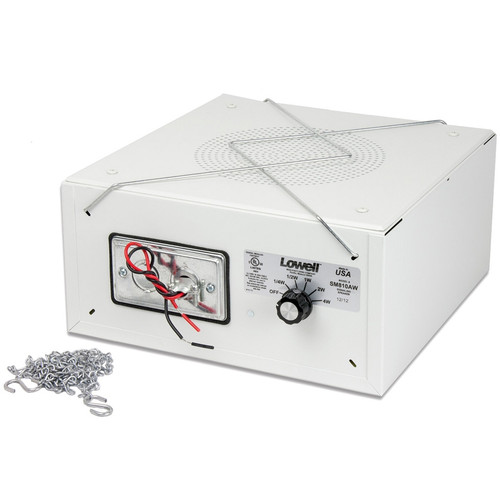

Lowell SM810A UL Listed Sound Masking Speakers:

• UL Listed, ready to install
• Choice of speaker type (8” 15W dual cone, 8” 50W coaxial, 4” single cone)
• Factory-wired transformer (taps at 4, 2, 1, 1/2, 1/4 @ 70V)
• 760 cu.in. steel enclosure (acoustically lined with fiberglass) and grille. Black or white finish
• SG handibox cover with dual combination knockouts for flex conduit. Romex connector for installations without conduit
• Externally accessible input leads
• Mounting hardware (hangers with S-hooks and chain for single-point suspension OR bridge rails for installation directly on lay-in tile ceiling grid)

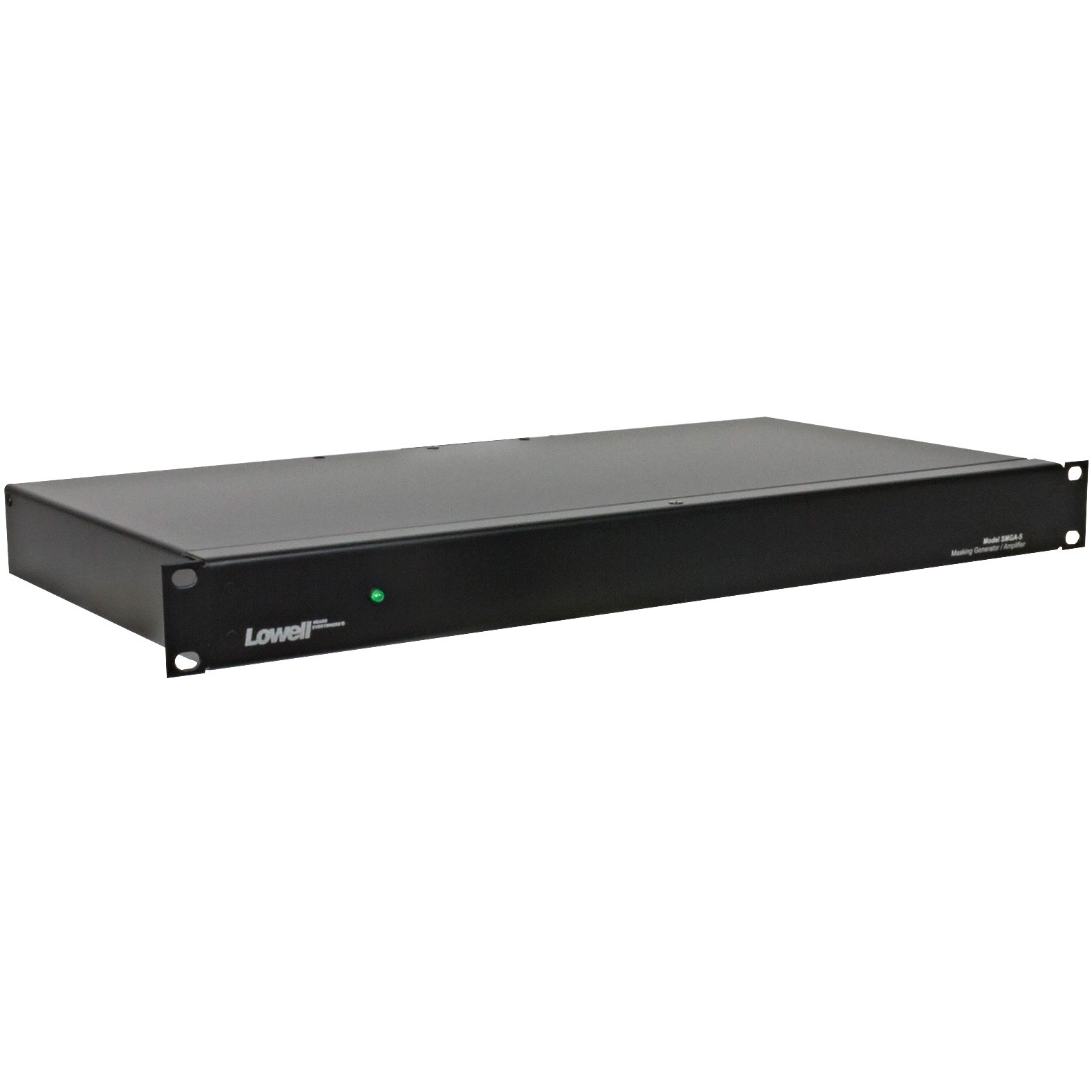

Lowell SMGA-5 Rackmount Sound Masking Generator & Amplifier:

• 1U chassis with barrier strip
• Generator produces pink noise signal
• Amplifiier includes auxiliary Hi-Z input
• UL listed power supply
• Compatible with Lowell's sound masking speakers for supspended or T-bar installation



• (12) Lowell SM810A Sound Masking Speaker
• (1) Lowell SMGA-5 Sound Masking Generator & Amplifier
• (500') WPW-225 Speaker Wire
