Large Sized Office Sound Masking System
This 70V sound masking office system with 16 DS1356 6" sound masking speakers, a DS3002 sound masking processor, 2 DS8000 networked speaker controllers and speaker wire is designed for large offices, approximately 3600 sq ft, and other commercial environments. This system is easy to install and will offer a clean and streamlined appearance for use in open structure facilities and in-ceiling plenums.

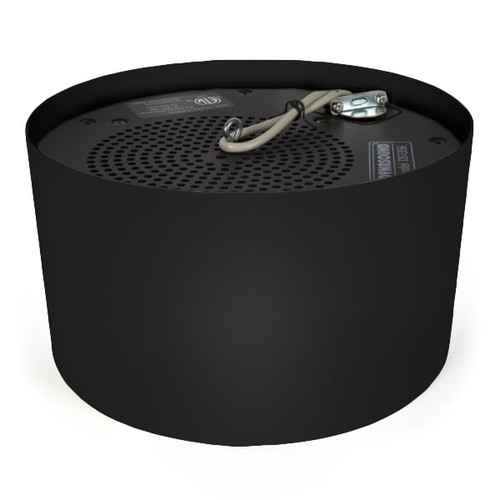

Dynasound DS1356 6" Sound Masking Speakers
The DS1356 contains a six-inch diameter speaker mounted off axis, reducing standing acoustical waves. The compact enclosure includes a convoluted, flame-retardant, acoustical insert to further reduce standing waves and metallic resonance. Dynasound’s DS1356 sound masking speaker is designed for quick and easy installation into open structure architecture and above suspended ceilings. When suspended, the loudspeaker assembly offers a clean appearance with no exposed controls or wiring from below. The DS1356 provides uniform dispersion and is well suited for sound masking, paging and music signals.

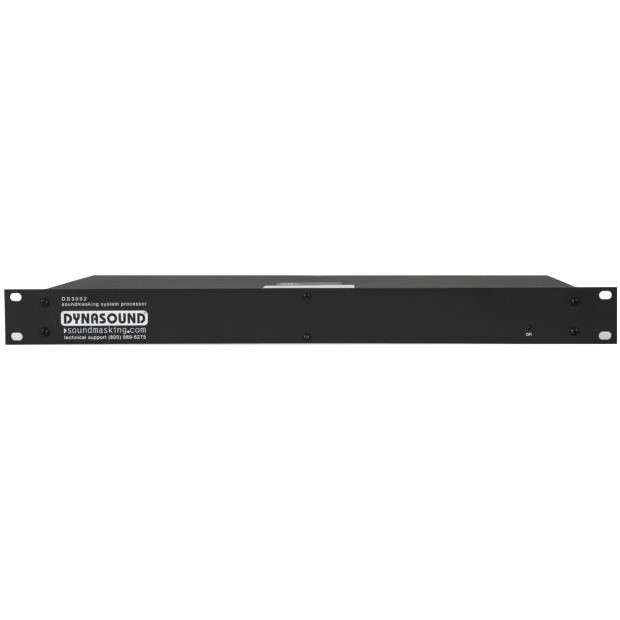

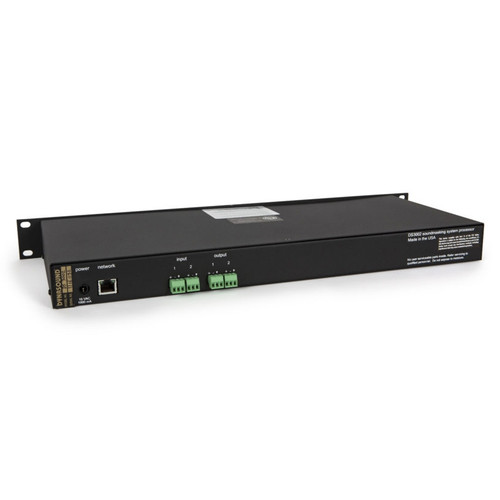

Dynasound DS3002 Sound Masking Processor
The DS3002 is designed to provide sound masking, paging and music functions for centralized and networked sound masking systems. Each DS3002 provides four independent sound masking generators, each having 1/3 octave band equalization, adjustable high pass and low pass filters. Additionally, two balanced line level inputs, two balanced line level outputs and a matrix mixer facilitate configuring any mix of incoming signals with any of the sound masking generators and then routed to any of the outputs. Input processing includes per channel level control, equalization and configurable “soft-knee” compression. Output processing includes per channel level control for both analog and network audio. This feature provides unique functionality for use in traditional 70v. centralized systems, networked addressable systems or systems combining both approaches.

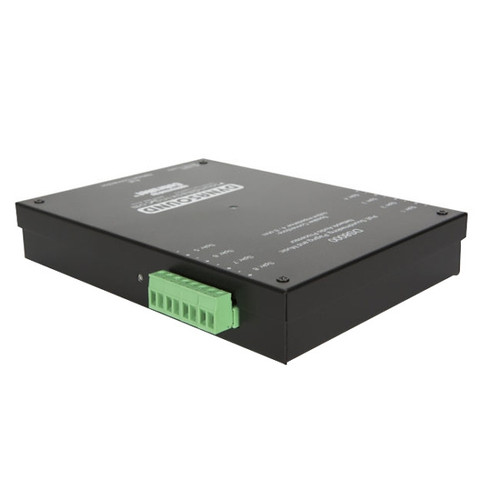

Dynasound DS8000 Networked Sound Masking Speaker Controllers
The DS8000 is the industry’s first PoE sound masking system designed to use non-proprietary, industry standard network hardware. Using CobraNet™ digital audio network technology the DS8000 is designed to communicate with Dynasound’s DS3002/3008 series DSP sound masking processors. Each DS8000 provides from two to four independent sound masking generators, depending on firmware. Each sound masking generator has 1/3 octave band equalization, adjustable high pass and low pass filters. The default configuration provides for two channel (A-B) sound masking and six additional audio channels available for paging and background music functions. Every speaker can be independently controlled or rezoned via network software.
