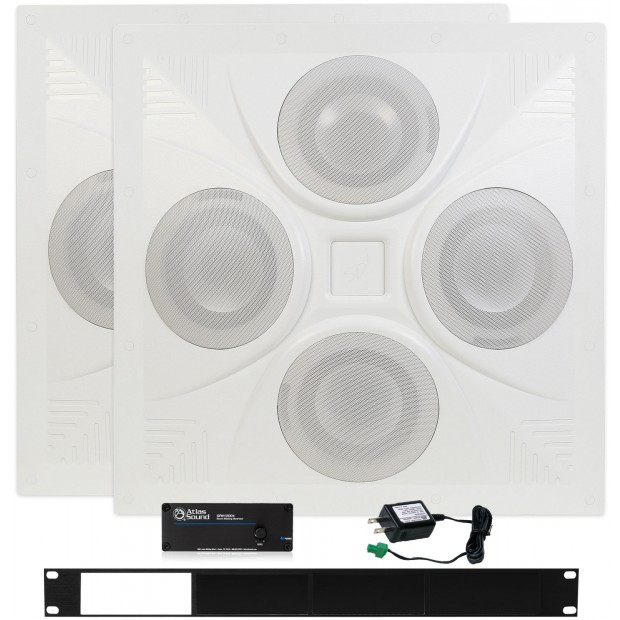

Office Sound Masking System with 4 AtlasIED Drop Tile Ceiling Speakers
Usually arrives in 5-9 business days.
This office sound masking system provides a practical solution for reducing distracting conversations and improving speech privacy in small offices, private workspaces, meeting rooms, conference rooms, and other commercial environments. The system combines two Pure Resonance Audio SP8 SoundPlane 2x2 low-profile 8" ceiling tile speakers, an AtlasIED PA40G 40W single-channel power amplifier, and an AtlasIED GPN1200K TSD sound masking generator kit. The generator produces a consistent pink noise signal, the amplifier provides the power needed for distributed audio, and the ceiling speakers deliver masking sound throughout the listening area. Together, these components help create a more comfortable working environment by reducing the intelligibility of nearby conversations.
The two Pure Resonance Audio SP8 SoundPlane speakers feature full-range 8" paper cone drivers and an ultra-low-profile design measuring only 3.9" deep. Each speaker drops directly into a standard 2' x 2' suspended ceiling grid without cutting or modifying existing ceiling tiles, making the system suitable for offices with limited overhead space. The speakers include selectable 70V transformer taps of 1.3W, 2.5W, 5W, and 10W, along with an 8Ω bypass. The AtlasIED PA40G delivers 40W of power for 70.7V/100V distributed audio systems. For basic sound masking, the recommended starting configuration connects both speakers in parallel on their 1.3W taps to the amplifier's 70V speaker output. This produces a combined 2.6W load, leaving 37.4W of available amplifier headroom. Where additional masking output is required, both speakers may be set to 2.5W, producing a 5W combined load with 35W of headroom. Final tap settings and output levels should be adjusted according to room acoustics, ambient noise, and speech privacy requirements.
The AtlasIED GPN1200K kit includes a TSD-GPN1200 sound masking generator, a 24V DC power supply, and a 1RU rack mount kit. The current Generation 2 generator uses non-repeating DSP technology to produce pink noise, with adjustable output level and a variable hi-cut filter for tailoring the masking spectrum to the listening environment. Its balanced line-level output connects to the PA40G amplifier's balanced input using the included 3-foot prepped-wire patch cable, with proper conductor termination and grounding verified during installation. The amplifier then distributes the masking signal to the ceiling speakers through a 70V speaker circuit. The system also includes 250 feet of 18 AWG, two-conductor CMP-rated plenum speaker wire for suitable indoor above-ceiling installations. Each SP8 speaker includes a safety cable that must be secured to approved building structure, while the generator and amplifier should be installed in a dry, ventilated equipment location. Proper speaker placement, wiring, amplifier settings, and masking spectrum adjustment should be verified during installation.

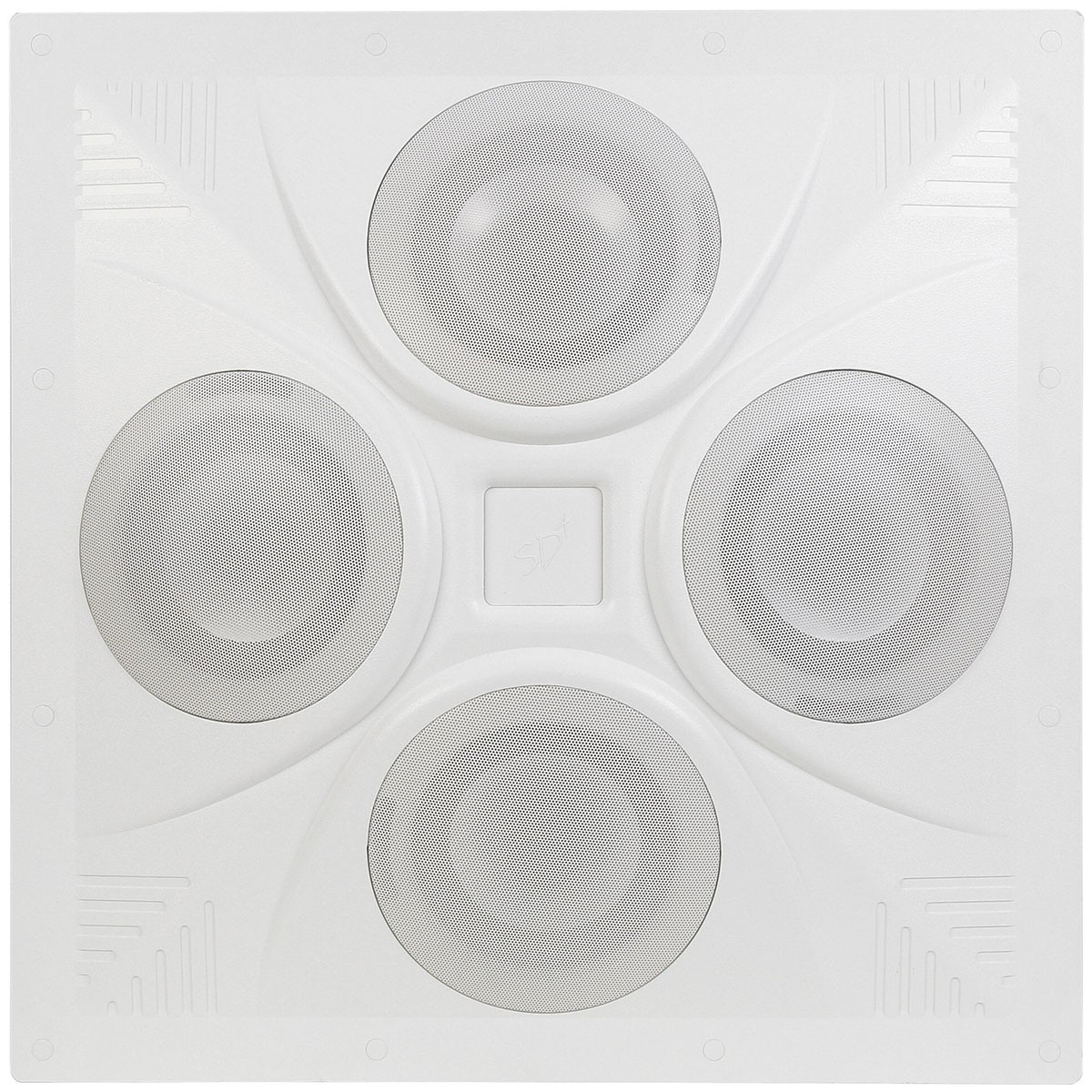

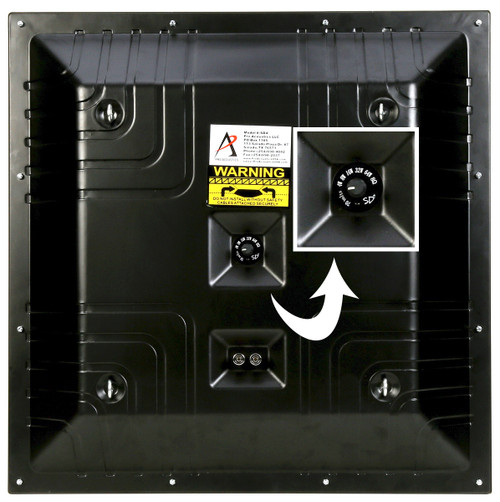

The Pure Resonance Audio SP8 SoundPlane is a full-range 8" lay-in ceiling tile speaker designed for commercial audio applications, including sound masking, background music, voice reinforcement, and paging. Its ultra-low-profile 3.9" mounting depth allows installation in suspended ceiling spaces where deeper conventional speakers may not fit. The SP8 drops directly into a standard 2' x 2' ceiling grid without requiring modifications to existing ceiling tiles. It features an 8" paper cone driver, 200 Hz to 16 kHz frequency response, 92 dB sensitivity, and 20W RMS power handling at 8Ω. A built-in transformer provides selectable 70V taps of 1.3W, 2.5W, 5W, and 10W, along with 100V operation and an 8Ω bypass. Its square frameless grille provides a clean, low-visibility appearance, while the Phoenix-style pluggable terminal connection and included safety cable support convenient installation in commercial ceiling systems.
The AtlasIED PA40G is a compact 40W single-channel commercial power amplifier designed for distributed audio, background music, paging, and small to medium sound masking applications. It provides 40W of output power for 70.7V or 100V speaker lines, making it suitable for driving multiple transformer-equipped ceiling speakers. The PA40G features a balanced line-level input with Phoenix-style connections and a separate unbalanced stereo RCA summing input for flexible source integration. Front-panel power, signal, and limit indicators provide operating status, while adjustable input gain allows the output level to be set for the installation. Its compact 1RU half-rack design supports convenient placement in commercial equipment locations, with an optional rack mounting kit available separately. A universal 100V to 240V AC power supply supports installation in different electrical environments. In this system, the PA40G amplifies the masking signal from the AtlasIED generator and distributes it to the two SP8 ceiling speakers.
The AtlasIED GPN1200K is a compact sound masking generator kit designed for basic masking applications in offices, meeting rooms, conference rooms, call centers, and other commercial environments requiring improved speech privacy. The kit includes a TSD-GPN1200 sound masking generator, TSD-PS24V250MA 24V DC power supply, and TSD-RMK 1RU rack mount kit. The current Generation 2 TSD-GPN1200 uses non-repeating DSP technology to generate pink noise, with an adjustable balanced line-level output for connection to compatible amplifiers. A variable hi-cut filter operates from 2 kHz to 16 kHz at a slope of 6 dB per octave, allowing the masking spectrum to be adjusted to suit room acoustics. Optional remote level adjustment is available through a separately purchased AtlasIED masking attenuator. The included rack mount kit accommodates up to four TSD Series modules in a standard 19" equipment rack, providing an organized installation solution for commercial sound masking equipment.
