Office Sound Masking System with Atlas Sound Pendant Mount Speakers and White Noise Generator for up to 14000SF (Discontinued Components)

By AtlasIED

Office Sound Masking System with Atlas Sound Pendant Mount Speakers and White Noise Generator for up to 14000SF (Discontinued Components)

Name: Office Sound Masking System with Atlas Sound Pendant Mount Speakers and White Noise Generator for up to 14000SF (Discontinued Components)
Brand: AtlasIED
SKU: SMSS-44M1000TSDGPN1200

Write a Review

Part #:

SMSS-44M1000TSDGPN1200

Model #:

SMSS-44M1000TSDGPN1200

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This office speech privacy system with 44 Atlas Sound M1000 pendant mount speakers is designed to accurately reproduce the required spectrum of sound masking signal into large commercial office spaces to protect confidential conversations and minimize employee distractions.

Description

Inside the Design

This fully integrated, cost-effective sound masking solution meets the requirements of any commercial office space from single floor, multi-zone installations to large multi-building office complexes. This sound masking system emits a low-level, non-distracting masking noise designed to reduce speech intelligibility and therefore improve speech privacy. By pleasantly raising the ambient sound level in your open office environment, you are able to not only safeguard sensitive discussions but also reduce employee and customer distractions caused by traffic, phone conversations, office machinery, and other unwanted noises. This sound masking system is ideal for protecting speech privacy and raising office productivity in commercial spaces such as open floor plan offices, open ceiling offices, call centers, sales floors, cubicle system offices, corporate business offices, or any open office installation where confidentiality is critical.

Sound System Features:

Approximately 14,000 sq ft of coverage
Suitable for open ceilings or above plenum ceilings (approved UL1480 & UL2043) for use in air handling
70V commercial sound masking speaker system
Selectable pink or white noise sources
Quick and easy installation

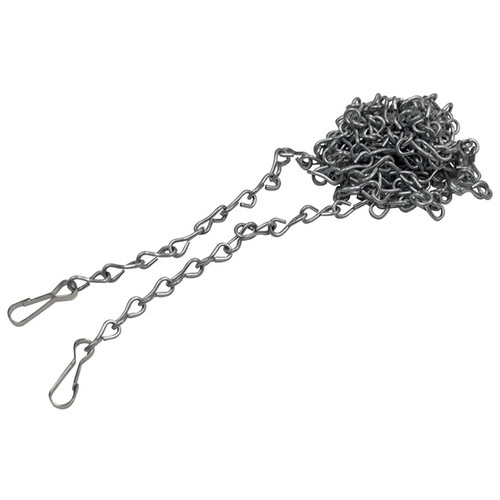

Includes chains for suspending speakers from the ceiling

Office Sound Masking System with Atlas Sound M1000 Speakers for up to 14,000 SF

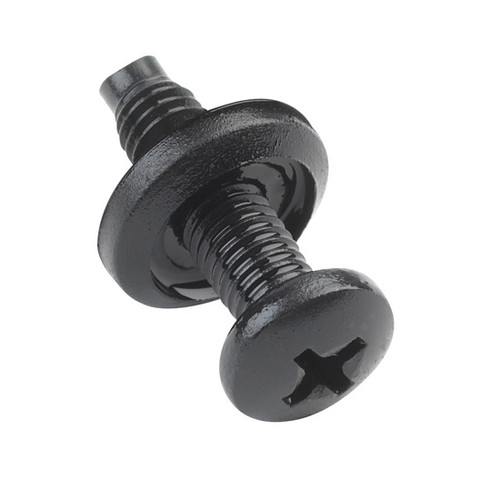

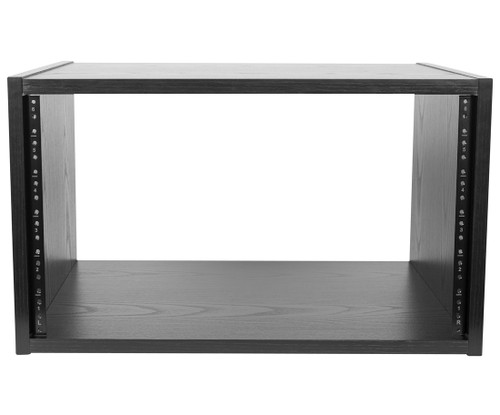

This Pro Acoustics designed office speech privacy system includes 44 Atlas Sound M1000 indirect field sound masking speakers and a GPN1200K sound masking generator kit which consists of a sound masking generator, a rack-mount, and power supply. Also included is a AA240 mixer amplifier, a EQM131 graphic equalizer, and a AP-S15LA 15LA power conditioner and distribution unit. This system also includes everything needed for installation including hanging chains, a rack mount kit, a 16” deep economy rack, rack screws and washers, patch cables, and 4,000ft of plenum-rated speaker wire.

Some products in this sound system design are now discontinued. Please call for replacements.

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

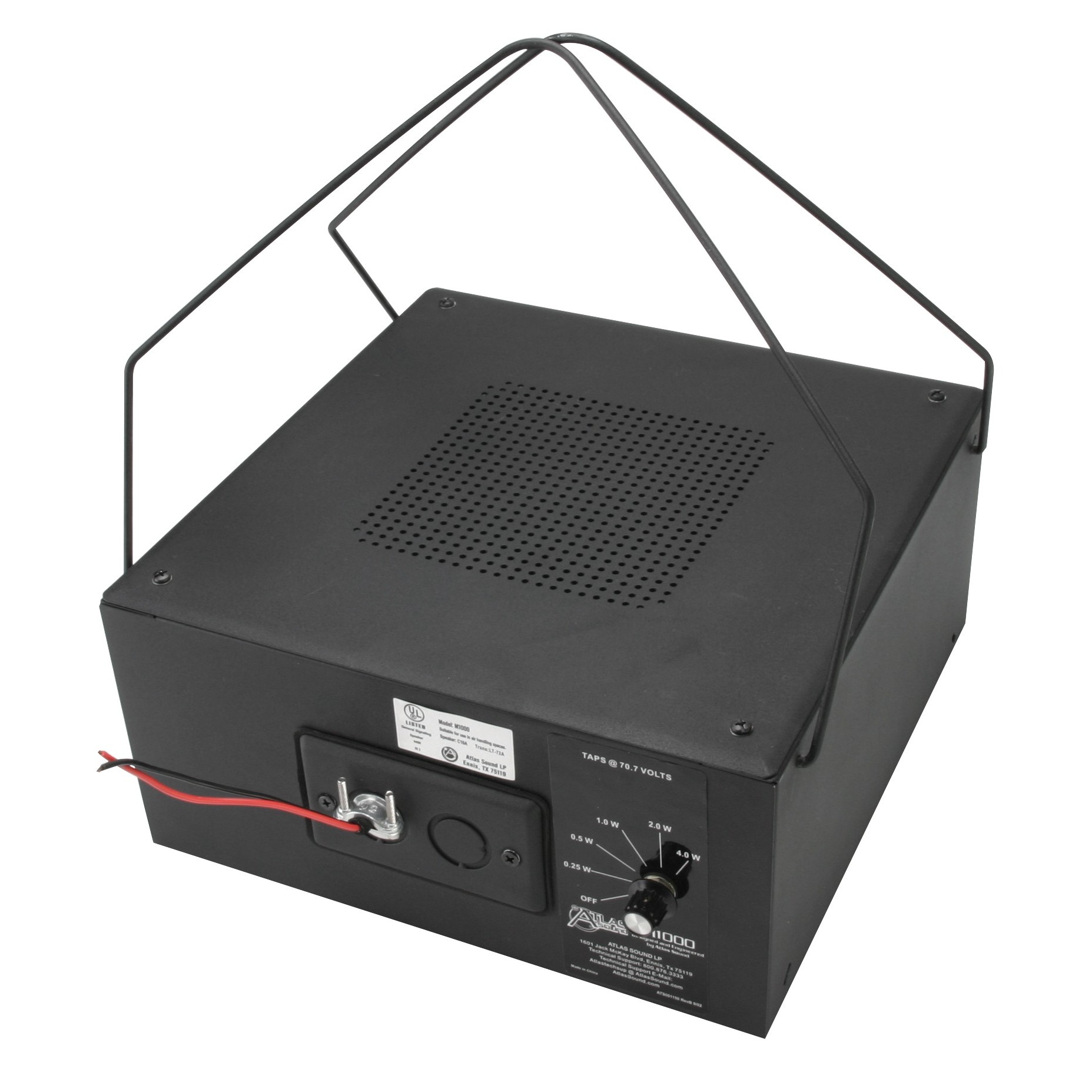

Atlas M1000 Sound Masking Speakers:

Pre-Assembled Unit Includes 8" dia. Loudspeaker, Transformer, Enclosure, Baffle and Mounting Hardware
Labor-Saving Hardware Package – Complete with New Snap Hanger Assembly, Allows Quick and Easy Installation
Innovative Input Panel Includes Combination Knock-Out and Strain Relief Connector to Accommodate Flexible or Rigid Conduit
Design Enables Upward, Downward, or Horizontal Orientation
734 in³ Enclosure for Extended Low Frequency Response
Available in Black or White Epoxy Finishes to Blend with a Variety of Open Ceiling Plans
Suitable for Use Above Suspended Ceiling Systems or Open Ceiling Spaces Approved for Use in Air Handling (Plenum Ceilings)
Safety Listed to UL 1480 & UL 2043

Atlas Sound GPN1200K TSD Sound Masking Generator Kit:

Balanced Line Output Plus 4W, 70.7V Output
Adjustable Gain and Hi-Cut Filter
EQ & Gain Bypass for Line Output
Selectable Pink or White Noise Source
Security Covers Included for All Rear Panel Controls
Stand Alone or Rack Mountable
Meets Energy Star Standards
Compact Chassis Design

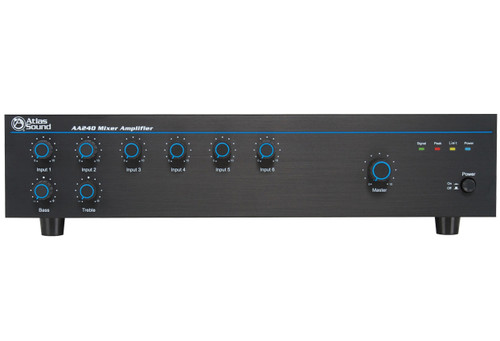

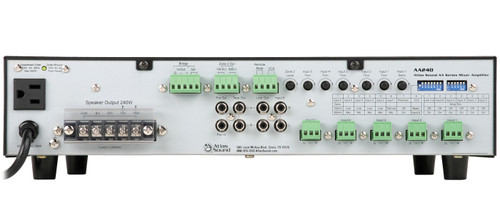

Atlas Sound AA240 Mixer Amplifier:

240 Watt 6 Channel Mixer Amplifier
5 Mic/Line Inputs with Phantom Power and 1 Stereo Summing AUX Input
Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
Pre Out / Power Amp In for Patching External Processors
Remote or VOX Mute Capabilities
Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
VCA Control Assignable to Input 6 Line Level (BGM) Input or Global for the Mix Bus
Zone 2 MOH Out from CH6 Line Source
UL60065 Listed

Atlas Sound EQM131 Graphic Equalizer:
