This patient privacy sound masking solution with four drop-tile ceiling speakers will create the perfect acoustical environment for a more comfortable and private facility. This sound masking system not only protects sensitive information but also reduces noise distractions.

Description

Inside the Design

This sound masking system emits a low-level, non-distracting masking noise designed to reduce speech intelligibility and thereby improve speech privacy in your medical facility. This improvement in speech privacy can be of great value in open-plan offices, doctors’ examination rooms and other healthcare environments where confidentiality is important. This cost-effective system is quick to install and simple to operate and offers additional features such as high-quality background music via Bluetooth or paging if desired.

Sound System Features:

  • Drop tile ceiling speakers install in minutes
  • Reduces distractions and boosts privacy
  • Up to 1,200 sq ft of coverage
  • Integrated analog pink and white noise generator
  • Built-In Bluetooth for streaming background music
  • Paging capability
  • Quick installation and easy to operate

Healthcare Sound Masking System with 4 Drop Tile Ceiling Speakers up to 1,200 SF

This Pro Acoustics designed sound masking system includes four Atlas Sound 2' x 2' drop tile ceiling speakers for direct sound, a Pure Resonance Audio 30W 7-channel MA30BT Bluetooth mixer amplifier, an Atlas Sound GPN1200K TSD sound masking generator kit complete with rackmount kit and power supply as well as 250' of speaker wire for installation.

Not sure if this is the right Sound Masking System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Atlas Sound DT22 Drop Tile Speakers:

  • All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce Installation Time and Costs
  • Solid White Panel with Punched Speaker Grille Blends in with Most Acoustic Ceiling Tiles
  • Standard 8" Speaker with Built-In 25V / 70.7V Transformer
  • UL1480 / UL2043

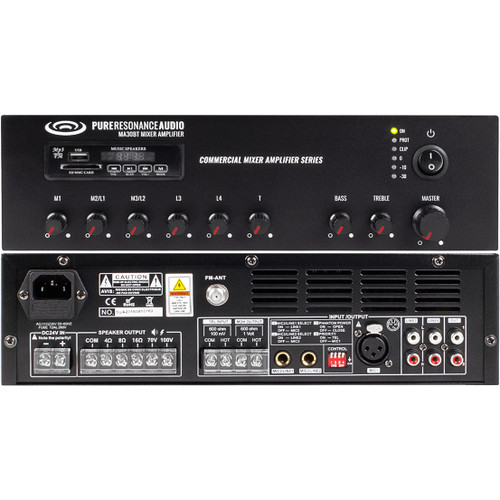

Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Mixer Amplifier:

  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 30 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system

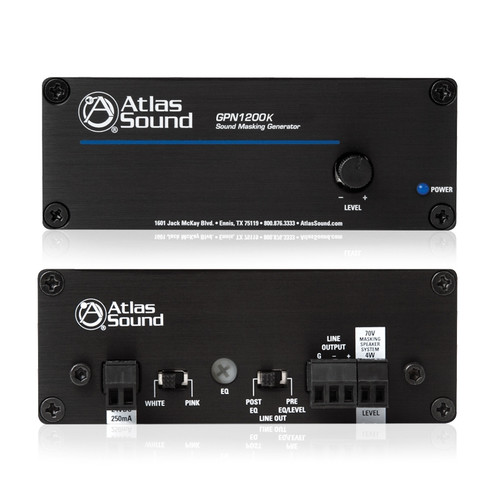

Atlas Sound TSD-GPN1200 Sound Masking Generator:

  • Balanced Line Output Plus 4W, 70.7V Output
  • Adjustable Gain and Hi-Cut Filter
  • EQ & Gain Bypass for Line Output
  • Selectable Pink or White Noise Source
  • Stand Alone or Rack Mountable
  • Security Covers Included for All Rear Panel Controls

DOCUMENTS

System Includes
  • (4) Atlas Sound DT22 2' x 2' Drop Tile Ceiling Speakers
  • (1) Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Mixer Amplifier
    • (1) IR Remote Control
    • (1) Power Cord
  • (1) Atlas Sound GPN1200K TSD Sound Masking Generator Kit
    • Includes: (1) TSD-GPN1200 Sound Masking Generator
    • (1) TSD-PS24V250MA Power Supply
    • (1) TSD-RMK 1RU Rack Mount Kit

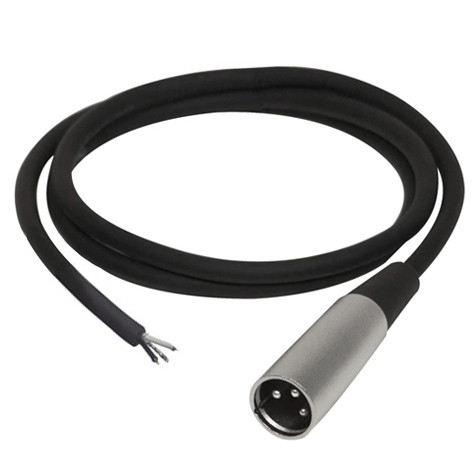

  • (1) CBI MLN-3-PREP-M Male XLR to Prep Patch Cable - 3ft
  • (250') West Penn 224 18/2 Audio Speaker Wire
