Office Sound System with 18 Pure Resonance Audio SP8 8" Ceiling Tile Speakers, RZMA120BT 120W 4-Zone Bluetooth Mixer Amplifier and PTT1 Paging Microphone (Discontinued Components)

Inside the Design

Office buildings, call centers, workspaces, and other business applications appreciate clear and intelligible audio and paging systems. That’s why this cost-effective multi-zone sound system, featuring eighteen Pure Resonance Audio SP8 SoundPlane 2x2 low-profile 8" ceiling tile speakers and the Pure Resonance Audio RZMA120BT four-zone 120W Bluetooth commercial rack mount mixer amplifier, along with the Pure Resonance Audio PTT1 desktop push-to-talk gooseneck microphone, is an obvious choice. It provides intelligible audio and great coverage throughout multiple zones in your office space, so everyone can hear clearly. Easily tailor this system to meet your specific needs by connecting almost any pro or commercial AV gear such as video equipment, microphones, or personal devices for wireless streaming. The SP8 speakers can replace multiple single speakers and provide approximately 20' x 20' or 400 sq ft of audio coverage from a single speaker. With a slim mounting depth of only 3.9", they are ideal for buildings with minimal space between the structural ceiling and the dropped ceiling. This turnkey solution also includes 18/2 speaker wire for reliable audio connections, making it perfect for background music, sound masking, and paging in commercial facilities.

Sound System Features:

• The SP8 speakers are cost-effective and easy to install, delivering excellent performance for multiple applications
• The 2x2 speakers have an extremely low profile depth allowing them to fit into suspended ceiling spaces where deeper standard speakers would not
• Takes minutes to install, just remove one ceiling tile and drop the SP8 into any standard 2x2 drop tile ceiling grid
• The easy-to-operate RZMA120BT is equipped with built-in Bluetooth, MP3, FM tuner, and recording capabilities. The zone-selectable inputs allow you to assign audio to any output
• The RZMA120BT is equipped with 4 ohms, 70 Volt and 100 Volt terminals and has 4 separate channels at 120W each
• The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications



About the System Components

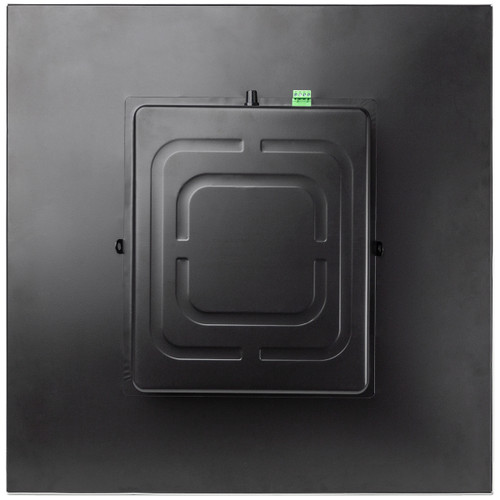

Pure Resonance Audio SP8 SOUNDPLANE 2X2 CEILING SPEAKER

The Pure Resonance Audio SP8 SoundPlane is a full-range ceiling tile speaker designed to drop into a 2'x2' suspended grid ceiling without having to cut holes or modify ceiling tiles. This offers a fast, easy, and cost-effective solution that saves installation time, effort, and expenses. A built-in adjustable 70V 10-watt transformer is conveniently accessible and located on the side of the rear back-box. The 2x2 drop-in ceiling speaker contains a full-range 8" treated paper main cone driver, a secondary high frequency cone, with a 10 ounce magnet. The fully enclosed back-can is constructed of industrial-grade steel. The solid white panel with a perforated speaker grille seamlessly blends with the decor in most acoustic drop ceiling tiles. Built-in seismic safety strap tabs are integrated on the steel back-can for suspension mounting from ceiling points (consult your architect or engineer before installing).

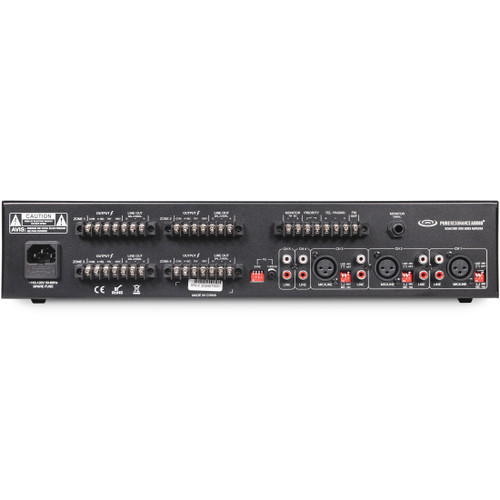

Pure Resonance Audio RZMA120BT 4 Zone Bluetooth Mixer Amplifier

Powerful and feature-packed, the Pure Resonance Audio RZMA120BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, FM tuner, Bluetooth and recording capabilities. The advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones. Ideal for multi-zone paging, music distribution, and room-combining applications, each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone. It is also equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required.

Pure Resonance Audio PTT1 DESKTOP PUSH-TO-TALK GOOSENECK MICROPHONE

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your outdoor commercial sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure this push-to-talk paging microphone can withstand even the toughest daily use in tough environments.

System & Component Videos

Pure Resonance Audio SP8 SoundPlane 8" 2x2 Low-Profile Ceiling Tile Speaker

• Ultra-low profile of only 3.9" for shallow ceiling installation
• Selectable 8 Ohm 70V/100V 10W taps
• Full-range sound offers an excellent listening experience
• Frameless design provides reduced visibility for a clean and built-in look
• Easy installation drops into a 2'x2' suspended grid ceiling space
• Safety hook with included safety cable



Pure Resonance Audio RZMA120BT 4 Zone 120W Commercial Rack Mount Mixer Amplifier with Bluetooth

• 4-Zone Flexibility - Easily assign audio to individual zones or all four simultaneously with advanced matrix technology, no programming or tuning is required
• Powerful - Delivers robust 120-watt output for each of the four zones, supporting 4-16 ohm, 70V, and 100V speaker setups
• Bluetooth & MP3 - Enjoy versatile playback options with built-in Bluetooth, USB, SD, FM tuner, and MP3 player for seamless audio streaming
• Versatile Inputs - Accommodates various audio sources across 5 channels, including XLR, RCA, telephone, and bare wire inputs, making it ideal for commercial environments
• Durable Design - Housed in a robust 2U, 19-inch rack-mountable chassis for stability and easy integration into any commercial audio rack setup
• Remote Control - Adjust volume and source settings easily with the included remote control, perfect for quick adjustments



Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone

• Built To Last - Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• Paging and Announcements - This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• Excellent Performance - The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• Metal Table-Stand - The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• Push-To-Talk Switch - The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• Simple Setup - The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (18) Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Ceiling Tile Speakers
• (1) Pure Resonance Audio RZMA120BT 4 Zone 120W Bluetooth Commercial Rack Mount Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (500ft) Provideon 2C18P 18/2 Plenum Audio Speaker Wire - Black
