Inside the Design
Office buildings, call centers, workspaces and other business applications appreciate clear and intelligible audio and paging systems. That's why this cost-effective sound system is an obvious choice. It provides intelligible audio and great coverage throughout your space, so everyone can hear clearly. Easily tailor this system to meet your specific needs by connecting almost any pro or commercial AV gear such as video equipment, microphones, or personal devices for wireless streaming. This turnkey system solution is perfect for background music, sound masking, and paging in commercial facilities. The SP8 can replace multiple single speakers and provides approximately 20' x 20' or 400 sq ft of audio coverage from a single speaker. Great for buildings with minimal space between the structural ceiling and the dropped ceiling, this ceiling speaker features a slim mounting depth of only 3.9" (100 mm).
Sound System Features:
- The SP8 speakers are cost-effective and easy to install, delivering excellent performance for multiple applications
- The 2x2 speakers have an extremely low profile depth allowing them to fit into suspended ceiling spaces where deeper standard speakers would not
- Takes minutes to install, just remove one ceiling tile and drop the SP8 into any standard 2x2 drop tile ceiling grid
- The MA120BT mixer amplifier supports playback from Bluetooth-enabled devices such as PCs, tablets or mobile phones
- The MA120BT is equipped with inputs for wired or wireless mics, CD/DVD players, projectors, laptops, computers, and other devices

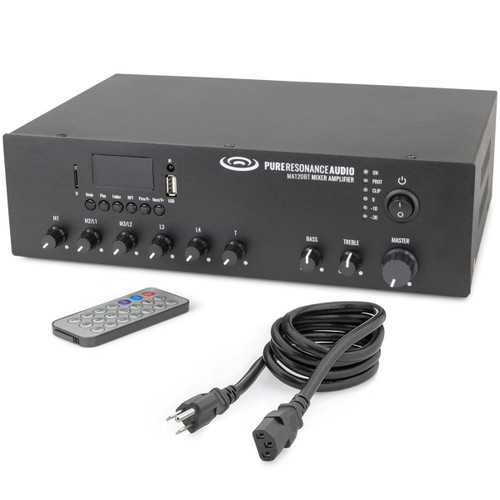

- The included remote control manages volume levels, play/pause, skip and more all from a distance
About the System Components

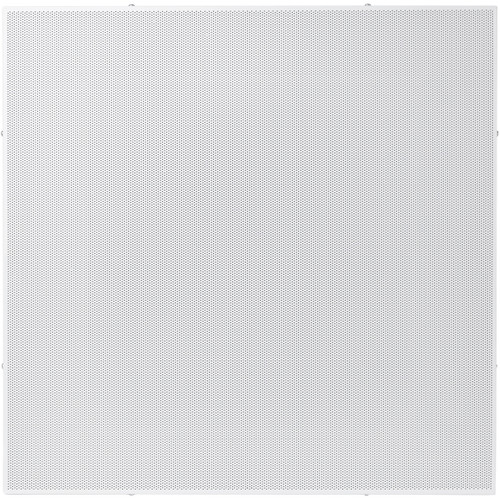

SP8 SoundPlane 2x2 Low-Profile Drop Ceiling Tile Speaker

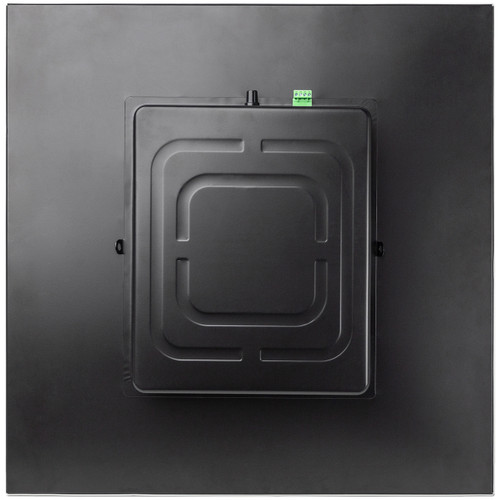

The Pure Resonance Audio SP8 SoundPlane is a full-range ceiling tile speaker designed to drop into a 2'x2' suspended grid ceiling without having to cut holes or modify ceiling tiles. This offers a fast, easy, and cost-effective solution that saves installation time, effort, and expenses. A built-in adjustable 70V 10-watt transformer is conveniently accessible and located on the side of the rear back-box. The 2x2 drop-in ceiling speaker contains a full-range 8" treated paper main cone driver, a secondary high frequency cone, with a 10 ounce magnet. The fully enclosed back-can is constructed of industrial-grade steel. The solid white panel with a perforated speaker grille seamlessly blends with the decor in most acoustic drop ceiling tiles. Built-in seismic safety strap tabs are integrated on the steel back-can for suspension mounting from ceiling points (consult your architect or engineer before installing).

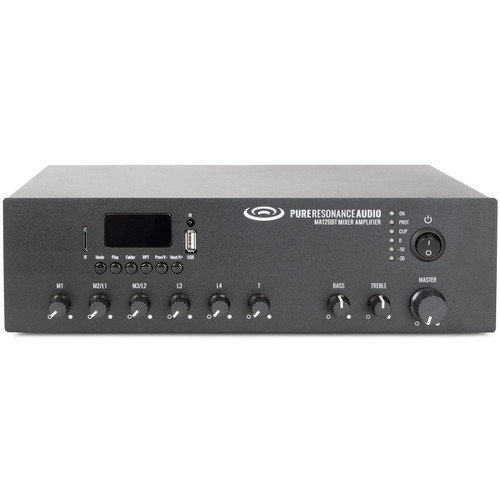

MA120BT 120W Bluetooth Mixer Amplifier

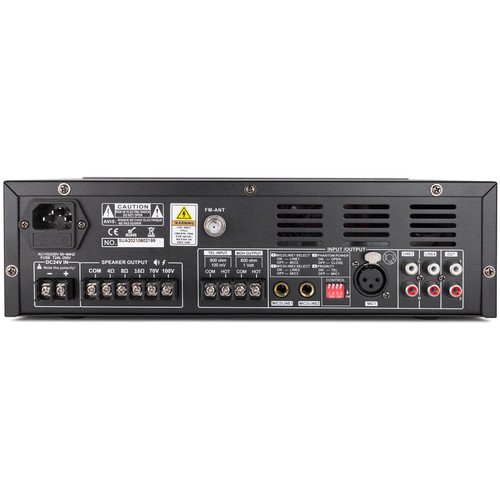

The 7-channel MA120BT mixer-amplifier features a built-in 70V/100V transformer technology that provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold). Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
