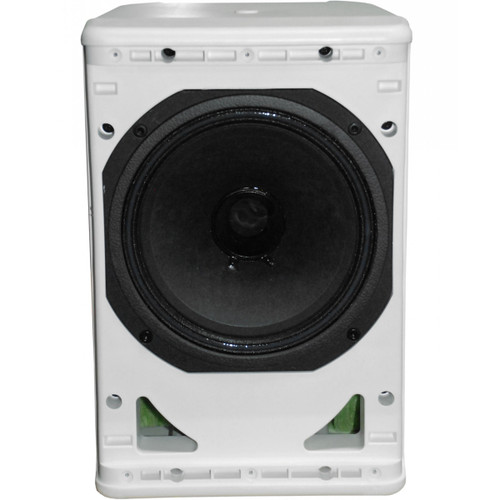

One Systems 108.HTC 2-Way 8" Direct Weather Compact Loudspeaker - White

Part #:
108.HTC
Model #:
108.HTC-WHITE
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The One Systems 108.HTC is a compact, universal application direct weather speaker with big performance capabilities. The 108.HTC combines an 8" woofer with a 2-inch voice coil and a coaxially-mounted, medium-format compression driver into a solid, yet compact-sized enclosure.

Description

One Systems 108.HTC 2-Way 8" Direct Weather Compact Loudspeaker

The 108.HTC is a compact, universal application direct weather speaker with big performance capabilities. The 108.HTC combines an 8-inch woofer with a 2-inch voice coil and a coaxially-mounted, medium-format compression driver into a solid, yet compact-sized enclosure. Thanks to its coax design with point-source sound emanation, the 108.HTC provides very high intelligibility, wide frequency response and smooth, even coverage. The 108.HTC can be installed anywhere outdoors – even on ships or next to oceans. The system's 316 grade marine stainless steel suspension hardware, enclosure reinforcements and its HYBRID stainless steel grille with marine-capable coating ensure extraordinary corrosion resistance and long useful life. The 108.HTC provides 200W continuous, 800W peak power handling and also offers high-impedance 70.7 – 100 volt operation with taps at 150, 75 and 37.5 watts. Low or high impedance operation is selected via separate barrier strips that eliminate reliability limiting switches. The 108.HTC delivers high output capability with full bandwidth response that provides high intelligibility as well as superb music reproduction. The 108.HTC is equipped with multiple M8 fly points to make it easy to install for indoor or outdoor applications. For nearfield and medium-range applications, the 108.HTC is sonically superior, budget-friendly and will deliver years of useful life.

Features

  • Marine-grade (316) stainless steel rigging and structural support
  • Easily configurable Hi Z (150W) multi-tap or Lo Z (8 ohm) operation
  • Combined 70.7Vrms or 100Vrms operation
  • No performance degrading or dynamics limiting passive protection devices
  • 200W continuous, 800Wpeak power handling in the Lo Z mode
  • IEC 529 IP 45 ingress protection (IP 56 with vent plugs)
  • U-Bracket included

Specifications

Frequency Response 70Hz – 16,000Hz
Coverage Pattern 70 x 70 Conical
Crossover Frequency 1600 Hz
System Sensitivity (1 Watt / 1 Meter) 92dB
Power Handling 200W continuous
400W program
800W peak
Input Impedance (Lo Z) 8-ohms
Input Taps (Hi Z) 150/75/37.5W
Dimensions (H x W x D) 13.8" (350 mm) x 9.2" (233.2 mm) x 10.7" (271.4 mm)
Weight 29.9 lbs (13.6 kg)
